History matching a coarse model - CGNet
This example demonstrates how to calibrate a coarse model against results from a fine model. We do this by optimizing the parameters of the coarse model to match the well curves. This is a implementation of the method described in [7]. This also serves as a demonstration of how to use the simulator for history matching, as the fine model results can stand in for real field observations.
Load and simulate Egg base case
We take a subset of the first 60 steps (1350 days) since not much happens after that in terms of well behavior.
julia
using Jutul, JutulDarcy, HYPRE, GeoEnergyIO, GLMakie
import LBFGSB as lb
egg_dir = JutulDarcy.GeoEnergyIO.test_input_file_path("EGG")
data_pth = joinpath(egg_dir, "EGG.DATA")
fine_case = setup_case_from_data_file(data_pth)
fine_case = fine_case[1:60]
simulated_fine = simulate_reservoir(fine_case)

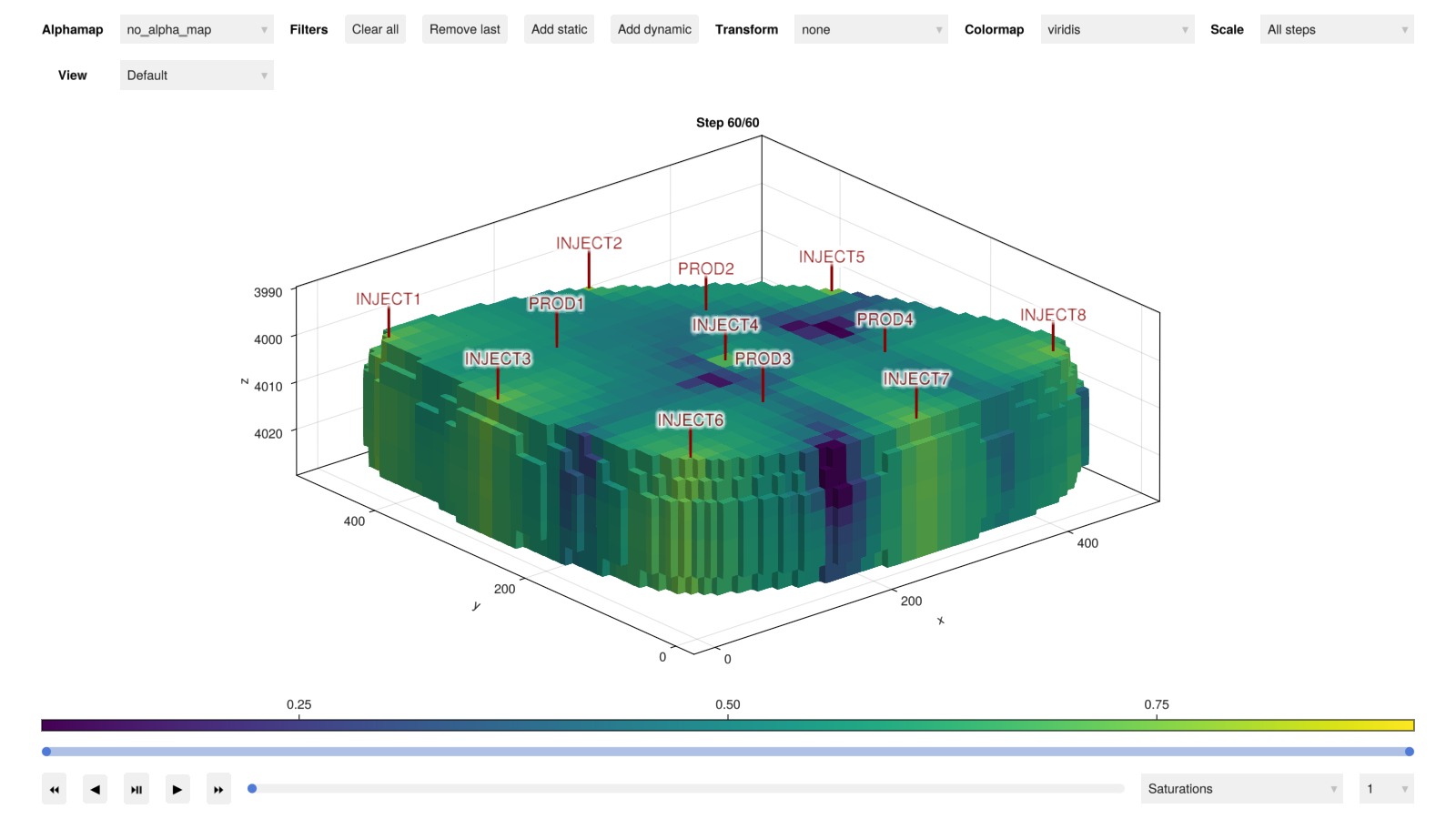

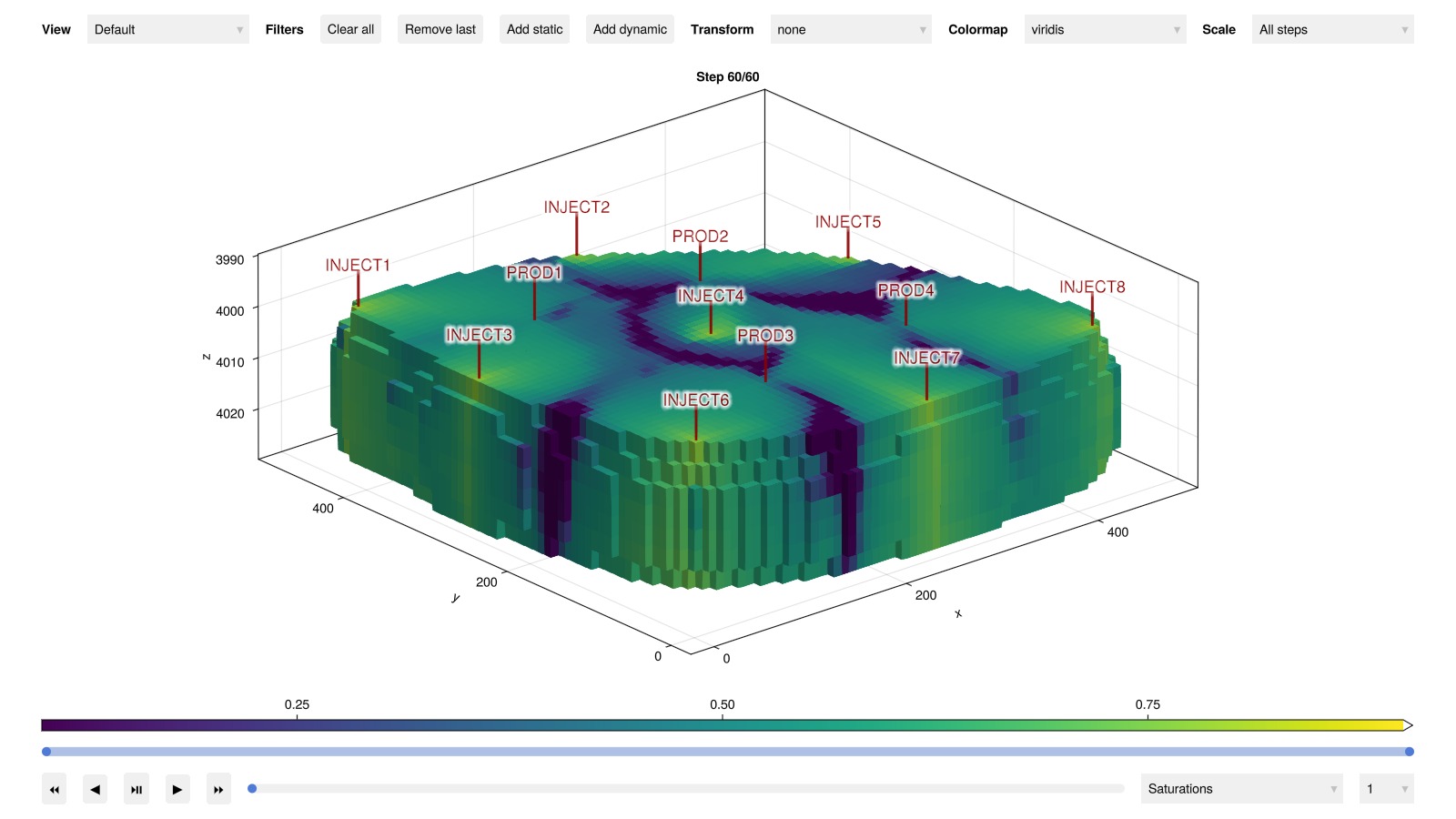

plot_reservoir(fine_case, simulated_fine.states, key = :Saturations, step = 60)
Create initial coarse model and simulate
julia
coarse_case = JutulDarcy.coarsen_reservoir_case(fine_case, (25, 25, 5), method = :ijk)
simulated_coarse = simulate_reservoir(coarse_case)

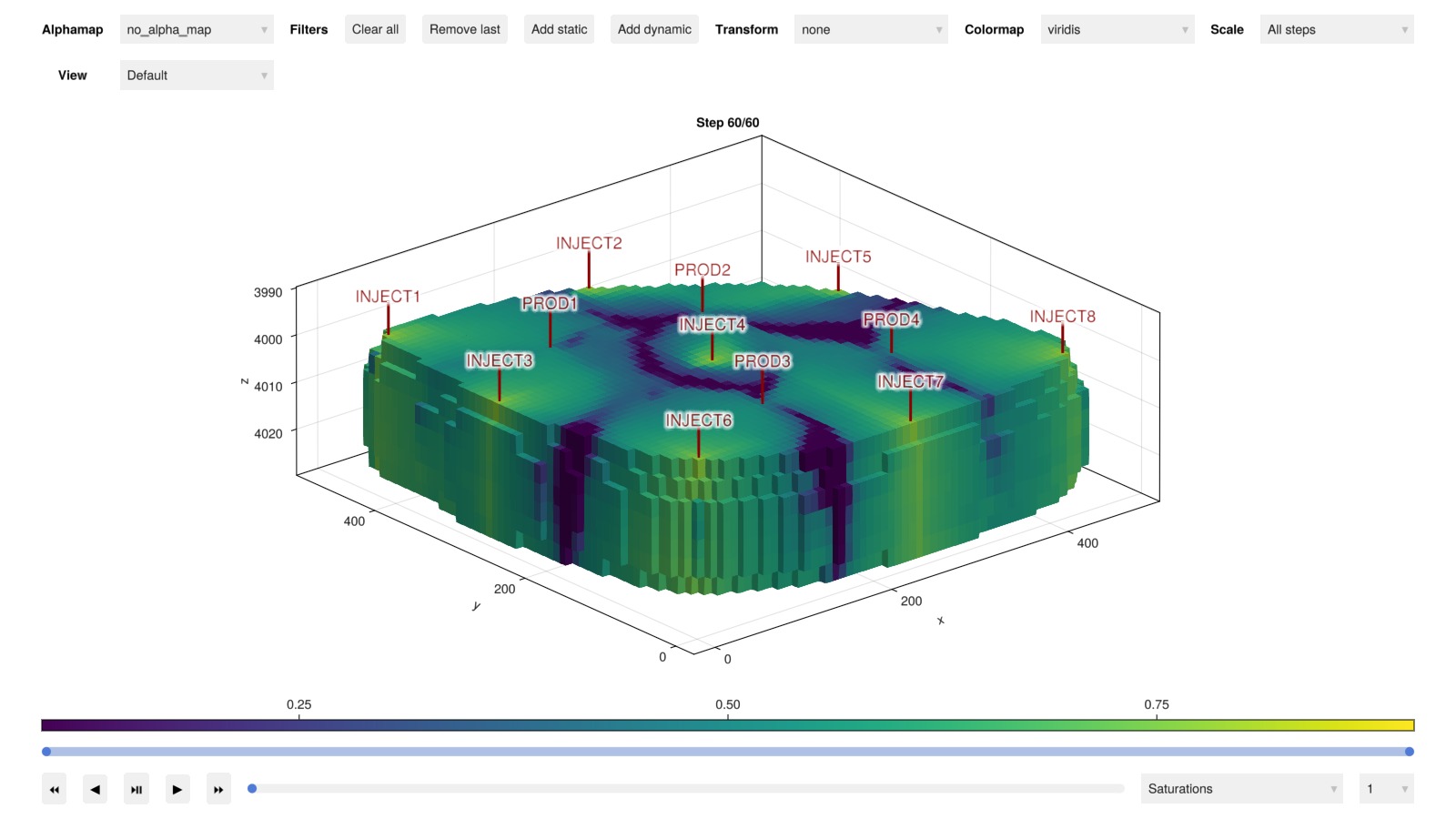

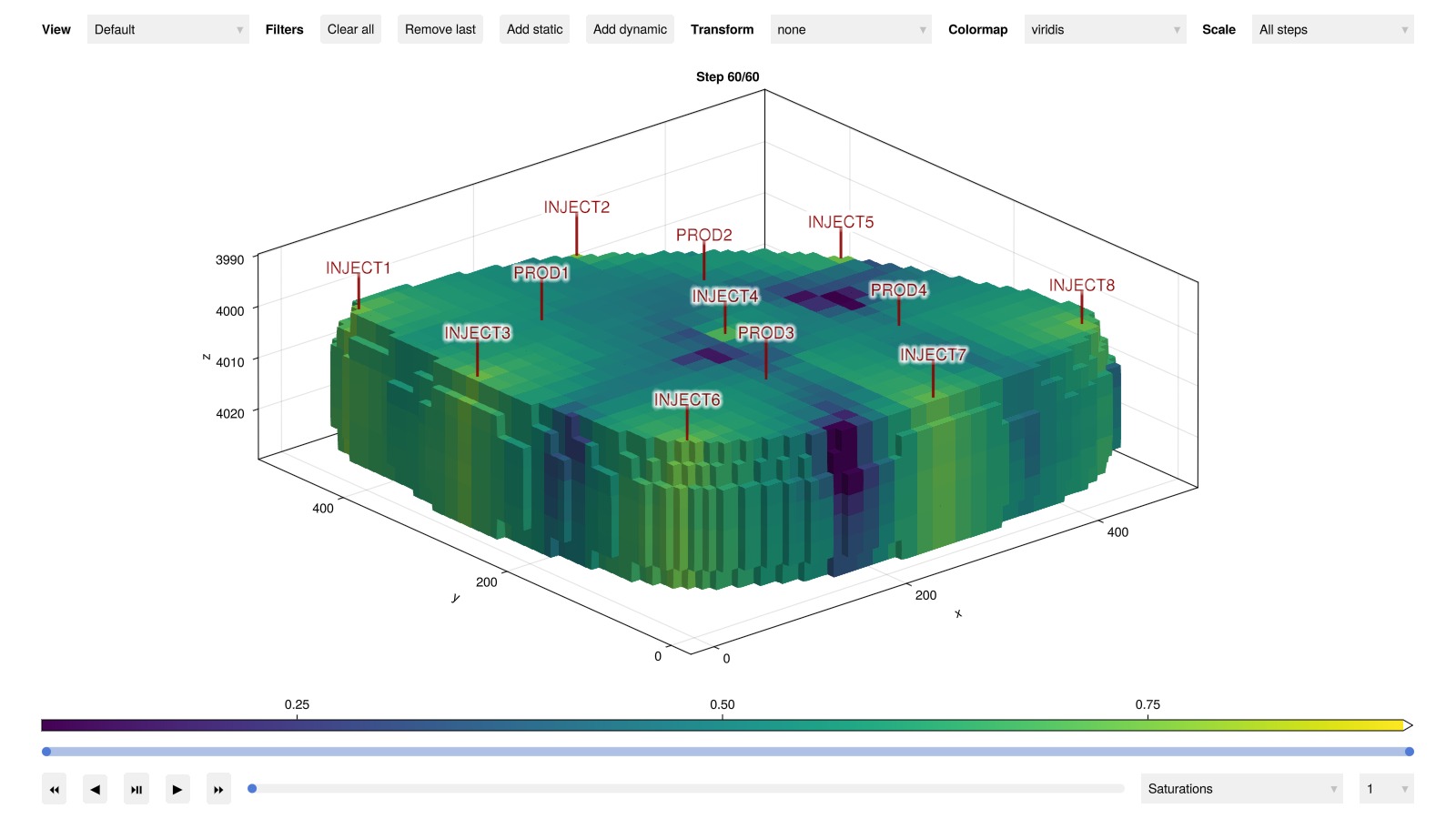

plot_reservoir(coarse_case, simulated_coarse.states, key = :Saturations, step = 60)
Setup optimization
We set up the optimization problem by defining the objective function as a sum of squared mismatches for all well observations, for all time-steps. We also define limits for the parameters, and set up the optimization problem.
We also limit the number of function evaluations since this example runs as a part of continuous integration and we want to keep the runtime short.
julia
function setup_optimization_cgnet(case_c, case_f, result_f)
states_f = result_f.result.states
wells_results, = result_f
model_c = case_c.model
state0_c = setup_state(model_c, case_c.state0);
param_c = setup_parameters(model_c)
forces_c = case_c.forces
dt = case_c.dt
model_f = case_f.model
bhp = JutulDarcy.BottomHolePressureTarget(1.0)
wells = collect(keys(JutulDarcy.get_model_wells(case_f)))
day = si_unit(:day)
wrat_scale = (1/150)*day
orat_scale = (1/80)*day
grat_scale = (1/1000)*day
w = []
matches = []
signs = []
sys = reservoir_model(model_f).system
wrat = SurfaceWaterRateTarget(-1.0)
orat = SurfaceOilRateTarget(-1.0)
grat = SurfaceGasRateTarget(-1.0)
push!(matches, bhp)
push!(w, 1.0/si_unit(:bar))
push!(signs, 1)
for phase in JutulDarcy.get_phases(sys)
if phase == LiquidPhase()
push!(matches, orat)
push!(w, orat_scale)
push!(signs, -1)
elseif phase == VaporPhase()
push!(matches, grat)
push!(w, grat_scale)
push!(signs, -1)
else
@assert phase == AqueousPhase()
push!(matches, wrat)
push!(w, wrat_scale)
push!(signs, -1)
end
end
signs = zeros(Int, length(signs))
o_scale = 1.0/(sum(dt)*length(wells))
G = (model_c, state_c, dt, step_no, forces) -> well_mismatch(
matches,
wells,
model_f,
states_f,
model_c,
state_c,
dt,
step_no,
forces,
weights = w,
scale = o_scale,
signs = signs
)
@assert Jutul.evaluate_objective(G, model_f, states_f, dt, case_f.forces) == 0.0
#
cfg = optimization_config(model_c, param_c,
use_scaling = true,
rel_min = 0.001,
rel_max = 1000
)
for (k, v) in cfg
for (ki, vi) in v
if ki == :FluidVolume
vi[:active] = k == :Reservoir
end
if ki == :ConnateWater
vi[:active] = false
end
if ki in [:TwoPointGravityDifference, :PhaseViscosities, :PerforationGravityDifference]
vi[:active] = false
end
if ki in [:WellIndices, :Transmissibilities]
vi[:active] = true
vi[:abs_min] = 0.0
vi[:abs_max] = 1e-6
end
end
end
opt_setup = setup_parameter_optimization(model_c, state0_c, param_c, dt, forces_c, G, cfg);
x0 = opt_setup.x0
F0 = opt_setup.F!(x0)
dF0 = opt_setup.dF!(similar(x0), x0)
println("Initial objective: $F0, gradient norm $(sum(abs, dF0))")
return opt_setup
endsetup_optimization_cgnet (generic function with 1 method)Define the optimization loop
JutulDarcy can use any optimization package that can work with gradients and limits, here we use the LBFGSB package.
julia
function optimize_cgnet(opt_setup)
lower = opt_setup.limits.min
upper = opt_setup.limits.max
x0 = opt_setup.x0
n = length(x0)
setup = Dict(:lower => lower, :upper => upper, :x0 => copy(x0))
prt = 1
f! = (x) -> opt_setup.F_and_dF!(NaN, nothing, x)
g! = (dFdx, x) -> opt_setup.F_and_dF!(NaN, dFdx, x)
results, final_x = lb.lbfgsb(f!, g!, x0, lb=lower, ub=upper,
iprint = prt,
factr = 1e12,
maxfun = 20,
maxiter = 20,
m = 20
)
return (final_x, results, setup)
endoptimize_cgnet (generic function with 1 method)Run the optimization
julia
opt_setup = setup_optimization_cgnet(coarse_case, fine_case, simulated_fine);
final_x, results, setup = optimize_cgnet(opt_setup);Parameters for PROD4
┌────────────────────┬──────────────┬───┬─────────┬─────────────┬────────────────┬──────────────────────┬─────────┐
│ Name │ Entity │ N │ Scale │ Abs. limits │ Rel. limits │ Limits │ Lumping │
├────────────────────┼──────────────┼───┼─────────┼─────────────┼────────────────┼──────────────────────┼─────────┤
│ WellIndicesThermal │ Perforations │ 5 │ default │ [0, Inf] │ [0.001, 1e+03] │ [0.0183, 3.67e+04] │ - │
│ WellIndices │ Perforations │ 5 │ default │ [0, 1e-06] │ [0.001, 1e+03] │ [4.22e-15, 7.95e-09] │ - │
└────────────────────┴──────────────┴───┴─────────┴─────────────┴────────────────┴──────────────────────┴─────────┘
Parameters for Reservoir
┌────────────────────┬────────┬──────┬─────────┬─────────────────┬────────────────┬──────────────────────┬─────────┐
│ Name │ Entity │ N │ Scale │ Abs. limits │ Rel. limits │ Limits │ Lumping │
├────────────────────┼────────┼──────┼─────────┼─────────────────┼────────────────┼──────────────────────┼─────────┤
│ Transmissibilities │ Faces │ 6792 │ default │ [0, 1e-06] │ [0.001, 1e+03] │ [1.71e-16, 4.75e-08] │ - │
│ FluidVolume │ Cells │ 2516 │ default │ [2.22e-16, Inf] │ [0.001, 1e+03] │ [0.0512, 9.22e+05] │ - │
└────────────────────┴────────┴──────┴─────────┴─────────────────┴────────────────┴──────────────────────┴─────────┘
Parameters for INJECT5
┌────────────────────┬──────────────┬───┬─────────┬─────────────┬────────────────┬──────────────────────┬─────────┐
│ Name │ Entity │ N │ Scale │ Abs. limits │ Rel. limits │ Limits │ Lumping │
├────────────────────┼──────────────┼───┼─────────┼─────────────┼────────────────┼──────────────────────┼─────────┤
│ WellIndicesThermal │ Perforations │ 5 │ default │ [0, Inf] │ [0.001, 1e+03] │ [0.0183, 3.67e+04] │ - │
│ WellIndices │ Perforations │ 5 │ default │ [0, 1e-06] │ [0.001, 1e+03] │ [9.46e-15, 1.96e-08] │ - │
└────────────────────┴──────────────┴───┴─────────┴─────────────┴────────────────┴──────────────────────┴─────────┘
Parameters for INJECT4
┌────────────────────┬──────────────┬───┬─────────┬─────────────┬────────────────┬──────────────────────┬─────────┐
│ Name │ Entity │ N │ Scale │ Abs. limits │ Rel. limits │ Limits │ Lumping │
├────────────────────┼──────────────┼───┼─────────┼─────────────┼────────────────┼──────────────────────┼─────────┤
│ WellIndicesThermal │ Perforations │ 5 │ default │ [0, Inf] │ [0.001, 1e+03] │ [0.0164, 3.28e+04] │ - │
│ WellIndices │ Perforations │ 5 │ default │ [0, 1e-06] │ [0.001, 1e+03] │ [2.33e-15, 5.35e-09] │ - │
└────────────────────┴──────────────┴───┴─────────┴─────────────┴────────────────┴──────────────────────┴─────────┘
Parameters for INJECT8
┌────────────────────┬──────────────┬───┬─────────┬─────────────┬────────────────┬─────────────────────┬─────────┐
│ Name │ Entity │ N │ Scale │ Abs. limits │ Rel. limits │ Limits │ Lumping │
├────────────────────┼──────────────┼───┼─────────┼─────────────┼────────────────┼─────────────────────┼─────────┤
│ WellIndicesThermal │ Perforations │ 5 │ default │ [0, Inf] │ [0.001, 1e+03] │ [0.0171, 3.42e+04] │ - │
│ WellIndices │ Perforations │ 5 │ default │ [0, 1e-06] │ [0.001, 1e+03] │ [2.9e-15, 7.68e-09] │ - │
└────────────────────┴──────────────┴───┴─────────┴─────────────┴────────────────┴─────────────────────┴─────────┘
Parameters for INJECT6
┌────────────────────┬──────────────┬───┬─────────┬─────────────┬────────────────┬──────────────────────┬─────────┐
│ Name │ Entity │ N │ Scale │ Abs. limits │ Rel. limits │ Limits │ Lumping │
├────────────────────┼──────────────┼───┼─────────┼─────────────┼────────────────┼──────────────────────┼─────────┤
│ WellIndicesThermal │ Perforations │ 5 │ default │ [0, Inf] │ [0.001, 1e+03] │ [0.0171, 3.42e+04] │ - │
│ WellIndices │ Perforations │ 5 │ default │ [0, 1e-06] │ [0.001, 1e+03] │ [5.94e-15, 1.29e-08] │ - │
└────────────────────┴──────────────┴───┴─────────┴─────────────┴────────────────┴──────────────────────┴─────────┘
Parameters for INJECT1
┌────────────────────┬──────────────┬───┬─────────┬─────────────┬────────────────┬──────────────────────┬─────────┐
│ Name │ Entity │ N │ Scale │ Abs. limits │ Rel. limits │ Limits │ Lumping │
├────────────────────┼──────────────┼───┼─────────┼─────────────┼────────────────┼──────────────────────┼─────────┤
│ WellIndicesThermal │ Perforations │ 5 │ default │ [0, Inf] │ [0.001, 1e+03] │ [0.0183, 3.67e+04] │ - │
│ WellIndices │ Perforations │ 5 │ default │ [0, 1e-06] │ [0.001, 1e+03] │ [4.45e-15, 1.02e-08] │ - │
└────────────────────┴──────────────┴───┴─────────┴─────────────┴────────────────┴──────────────────────┴─────────┘
Parameters for INJECT7
┌────────────────────┬──────────────┬───┬─────────┬─────────────┬────────────────┬──────────────────────┬─────────┐
│ Name │ Entity │ N │ Scale │ Abs. limits │ Rel. limits │ Limits │ Lumping │
├────────────────────┼──────────────┼───┼─────────┼─────────────┼────────────────┼──────────────────────┼─────────┤
│ WellIndicesThermal │ Perforations │ 5 │ default │ [0, Inf] │ [0.001, 1e+03] │ [0.0164, 3.28e+04] │ - │
│ WellIndices │ Perforations │ 5 │ default │ [0, 1e-06] │ [0.001, 1e+03] │ [2.23e-15, 4.66e-09] │ - │
└────────────────────┴──────────────┴───┴─────────┴─────────────┴────────────────┴──────────────────────┴─────────┘
Parameters for INJECT3
┌────────────────────┬──────────────┬───┬─────────┬─────────────┬────────────────┬─────────────────────┬─────────┐
│ Name │ Entity │ N │ Scale │ Abs. limits │ Rel. limits │ Limits │ Lumping │
├────────────────────┼──────────────┼───┼─────────┼─────────────┼────────────────┼─────────────────────┼─────────┤
│ WellIndicesThermal │ Perforations │ 5 │ default │ [0, Inf] │ [0.001, 1e+03] │ [0.0171, 3.42e+04] │ - │
│ WellIndices │ Perforations │ 5 │ default │ [0, 1e-06] │ [0.001, 1e+03] │ [4.87e-15, 1.3e-08] │ - │
└────────────────────┴──────────────┴───┴─────────┴─────────────┴────────────────┴─────────────────────┴─────────┘
Parameters for PROD2
┌────────────────────┬──────────────┬───┬─────────┬─────────────┬────────────────┬──────────────────────┬─────────┐
│ Name │ Entity │ N │ Scale │ Abs. limits │ Rel. limits │ Limits │ Lumping │
├────────────────────┼──────────────┼───┼─────────┼─────────────┼────────────────┼──────────────────────┼─────────┤
│ WellIndicesThermal │ Perforations │ 5 │ default │ [0, Inf] │ [0.001, 1e+03] │ [0.0171, 3.42e+04] │ - │
│ WellIndices │ Perforations │ 5 │ default │ [0, 1e-06] │ [0.001, 1e+03] │ [2.96e-14, 4.31e-08] │ - │
└────────────────────┴──────────────┴───┴─────────┴─────────────┴────────────────┴──────────────────────┴─────────┘
Parameters for PROD3
┌────────────────────┬──────────────┬───┬─────────┬─────────────┬────────────────┬─────────────────────┬─────────┐
│ Name │ Entity │ N │ Scale │ Abs. limits │ Rel. limits │ Limits │ Lumping │
├────────────────────┼──────────────┼───┼─────────┼─────────────┼────────────────┼─────────────────────┼─────────┤
│ WellIndicesThermal │ Perforations │ 5 │ default │ [0, Inf] │ [0.001, 1e+03] │ [0.0183, 3.67e+04] │ - │
│ WellIndices │ Perforations │ 5 │ default │ [0, 1e-06] │ [0.001, 1e+03] │ [2.34e-15, 5.7e-09] │ - │
└────────────────────┴──────────────┴───┴─────────┴─────────────┴────────────────┴─────────────────────┴─────────┘
Parameters for PROD1
┌────────────────────┬──────────────┬───┬─────────┬─────────────┬────────────────┬──────────────────────┬─────────┐
│ Name │ Entity │ N │ Scale │ Abs. limits │ Rel. limits │ Limits │ Lumping │
├────────────────────┼──────────────┼───┼─────────┼─────────────┼────────────────┼──────────────────────┼─────────┤
│ WellIndicesThermal │ Perforations │ 5 │ default │ [0, Inf] │ [0.001, 1e+03] │ [0.0183, 3.67e+04] │ - │
│ WellIndices │ Perforations │ 5 │ default │ [0, 1e-06] │ [0.001, 1e+03] │ [2.04e-15, 4.29e-09] │ - │
└────────────────────┴──────────────┴───┴─────────┴─────────────┴────────────────┴──────────────────────┴─────────┘
Parameters for INJECT2
┌────────────────────┬──────────────┬───┬─────────┬─────────────┬────────────────┬──────────────────────┬─────────┐
│ Name │ Entity │ N │ Scale │ Abs. limits │ Rel. limits │ Limits │ Lumping │
├────────────────────┼──────────────┼───┼─────────┼─────────────┼────────────────┼──────────────────────┼─────────┤
│ WellIndicesThermal │ Perforations │ 5 │ default │ [0, Inf] │ [0.001, 1e+03] │ [0.0183, 4.59e+04] │ - │
│ WellIndices │ Perforations │ 5 │ default │ [0, 1e-06] │ [0.001, 1e+03] │ [1.08e-14, 2.15e-08] │ - │
└────────────────────┴──────────────┴───┴─────────┴─────────────┴────────────────┴──────────────────────┴─────────┘

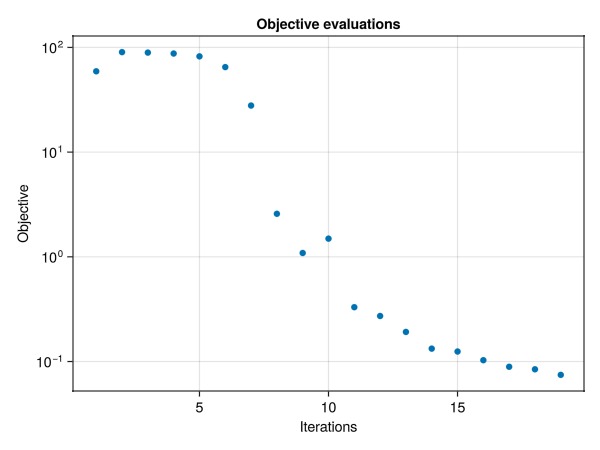

Obj. #1: 5.9118e+00 (best: Inf, relative: 1.0000e+00)
Initial objective: 5.911750081164171, gradient norm 581599.100413164
RUNNING THE L-BFGS-B CODE
* * *
Machine precision = 2.220D-16
N = 9428 M = 20
At X0 0 variables are exactly at the bounds
At iterate 0 f= 5.91175D+00 |proj g|= 9.99001D-01
┌ Warning: Partial data passed, objective set to large value 59.11750081164171.
└ @ Jutul ~/.julia/packages/Jutul/M7cUf/src/ad/gradients.jl:689
Obj. #2: 5.9118e+01 (best: 5.9118e+00, relative: 1.0000e+01)
Obj. #3: 9.0100e+01 (best: 5.9118e+00, relative: 1.5241e+01)
Obj. #4: 8.9191e+01 (best: 5.9118e+00, relative: 1.5087e+01)
Obj. #5: 8.7380e+01 (best: 5.9118e+00, relative: 1.4781e+01)
Obj. #6: 8.2086e+01 (best: 5.9118e+00, relative: 1.3885e+01)
Obj. #7: 6.4831e+01 (best: 5.9118e+00, relative: 1.0967e+01)
Obj. #8: 2.7836e+01 (best: 5.9118e+00, relative: 4.7086e+00)
Obj. #9: 2.5763e+00 (best: 5.9118e+00, relative: 4.3579e-01)
At iterate 1 f= 2.57626D+00 |proj g|= 9.99000D-01
Obj. #10: 1.0877e+00 (best: 2.5763e+00, relative: 1.8399e-01)
At iterate 2 f= 1.08771D+00 |proj g|= 9.99002D-01
Obj. #11: 1.4918e+00 (best: 1.0877e+00, relative: 2.5234e-01)
Obj. #12: 3.3030e-01 (best: 1.0877e+00, relative: 5.5872e-02)
At iterate 3 f= 3.30300D-01 |proj g|= 9.98795D-01
Obj. #13: 2.7223e-01 (best: 3.3030e-01, relative: 4.6049e-02)
At iterate 4 f= 2.72232D-01 |proj g|= 9.98816D-01
Obj. #14: 1.9174e-01 (best: 2.7223e-01, relative: 3.2434e-02)
At iterate 5 f= 1.91745D-01 |proj g|= 9.98820D-01
Obj. #15: 1.3282e-01 (best: 1.9174e-01, relative: 2.2467e-02)
At iterate 6 f= 1.32818D-01 |proj g|= 9.99004D-01
Obj. #16: 1.2468e-01 (best: 1.3282e-01, relative: 2.1090e-02)
At iterate 7 f= 1.24676D-01 |proj g|= 9.99005D-01
Obj. #17: 1.0305e-01 (best: 1.2468e-01, relative: 1.7431e-02)
At iterate 8 f= 1.03048D-01 |proj g|= 9.99003D-01
Obj. #18: 8.9030e-02 (best: 1.0305e-01, relative: 1.5060e-02)
At iterate 9 f= 8.90305D-02 |proj g|= 9.98796D-01
Obj. #19: 8.4019e-02 (best: 8.9030e-02, relative: 1.4212e-02)
At iterate 10 f= 8.40187D-02 |proj g|= 9.99069D-01
Obj. #20: 7.4477e-02 (best: 8.4019e-02, relative: 1.2598e-02)
At iterate 11 f= 7.44772D-02 |proj g|= 9.99012D-01
* * *
Tit = total number of iterations
Tnf = total number of function evaluations
Tnint = total number of segments explored during Cauchy searches
Skip = number of BFGS updates skipped
Nact = number of active bounds at final generalized Cauchy point
Projg = norm of the final projected gradient
F = final function value
* * *
N Tit Tnf Tnint Skip Nact Projg F
9428 11 20 9256 0 11 9.990D-01 7.448D-02
F = 7.4477216865258919E-002
STOP: TOTAL NO. of f AND g EVALUATIONS EXCEEDS LIMIT
Cauchy time 3.845E-03 seconds.
Subspace minimization time 3.235E-03 seconds.
Line search time 6.917E+01 seconds.
Total User time 7.052E+01 seconds.Transfer the results back

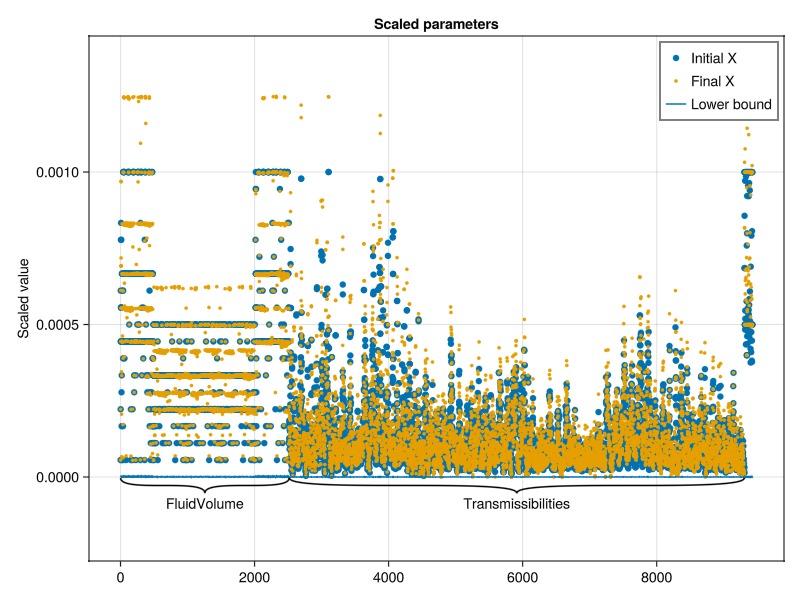

The optimization is generic and works on a single long vector that represents all our active parameters. We can devectorize this vector back into the nested representation used by the model itself and simulate.
julia
tuned_case = deepcopy(opt_setup.data[:case])
model_c = coarse_case.model
model_f = fine_case.model
param_c = tuned_case.parameters
data = opt_setup.data
devectorize_variables!(param_c, model_c, final_x, data[:mapper], config = data[:config])

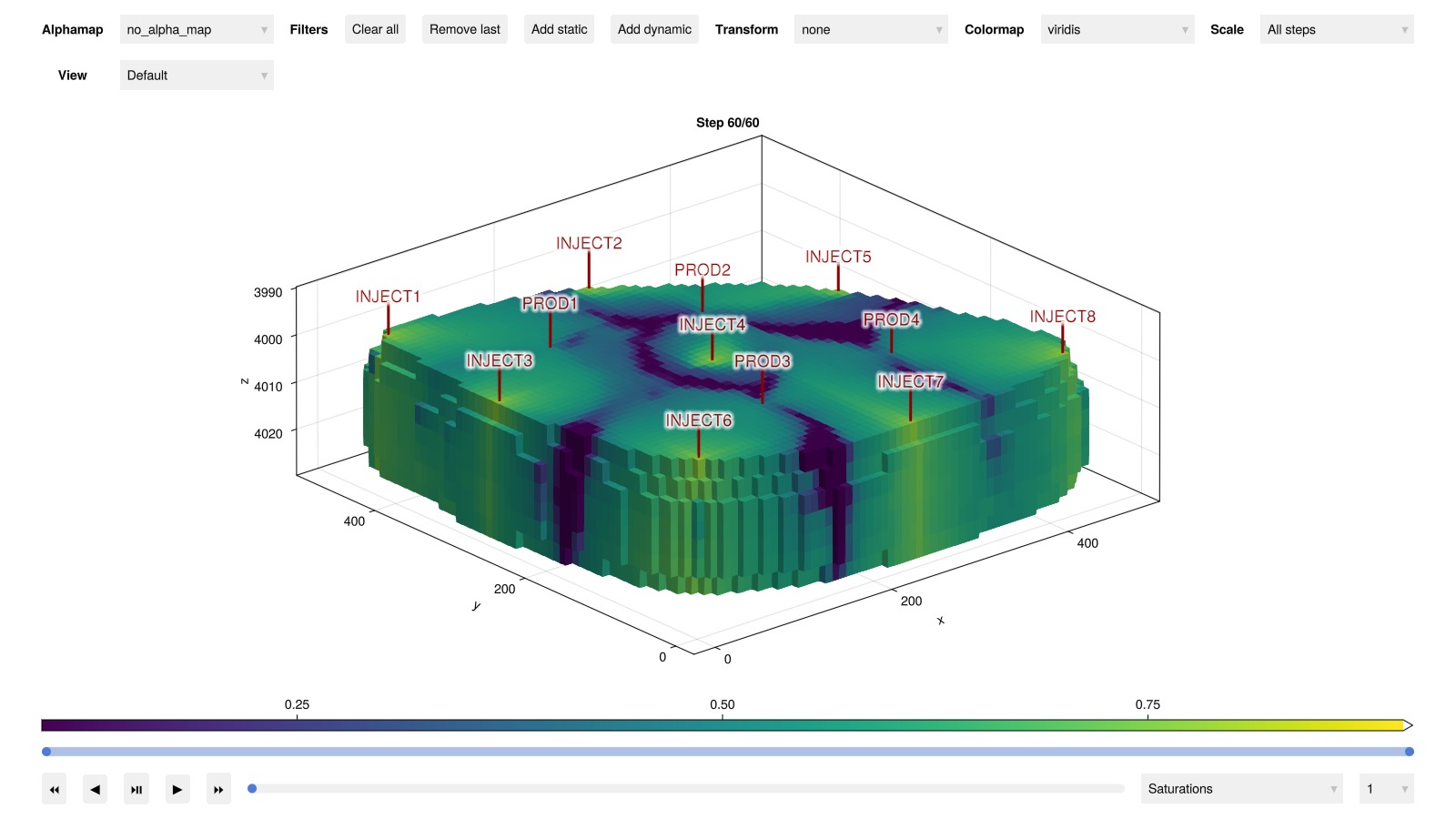

simulated_tuned = simulate_reservoir(tuned_case);Jutul: Simulating 3 years, 36.32 weeks as 60 report steps
╭────────────────┬──────────┬──────────────┬──────────╮
│ Iteration type │ Avg/step │ Avg/ministep │ Total │
│ │ 60 steps │ 67 ministeps │ (wasted) │
├────────────────┼──────────┼──────────────┼──────────┤
│ Newton │ 4.03333 │ 3.61194 │ 242 (0) │
│ Linearization │ 5.15 │ 4.61194 │ 309 (0) │
│ Linear solver │ 16.1 │ 14.4179 │ 966 (0) │
│ Precond apply │ 32.2 │ 28.8358 │ 1932 (0) │
╰────────────────┴──────────┴──────────────┴──────────╯
╭───────────────┬────────┬────────────┬────────╮
│ Timing type │ Each │ Relative │ Total │
│ │ ms │ Percentage │ s │
├───────────────┼────────┼────────────┼────────┤
│ Properties │ 0.3248 │ 4.41 % │ 0.0786 │
│ Equations │ 0.6512 │ 11.29 % │ 0.2012 │
│ Assembly │ 0.4442 │ 7.70 % │ 0.1373 │
│ Linear solve │ 0.4073 │ 5.53 % │ 0.0986 │
│ Linear setup │ 3.0986 │ 42.08 % │ 0.7499 │
│ Precond apply │ 0.1938 │ 21.01 % │ 0.3744 │
│ Update │ 0.1489 │ 2.02 % │ 0.0360 │
│ Convergence │ 0.1769 │ 3.07 % │ 0.0546 │
│ Input/Output │ 0.0660 │ 0.25 % │ 0.0044 │
│ Other │ 0.1936 │ 2.63 % │ 0.0468 │
├───────────────┼────────┼────────────┼────────┤
│ Total │ 7.3629 │ 100.00 % │ 1.7818 │

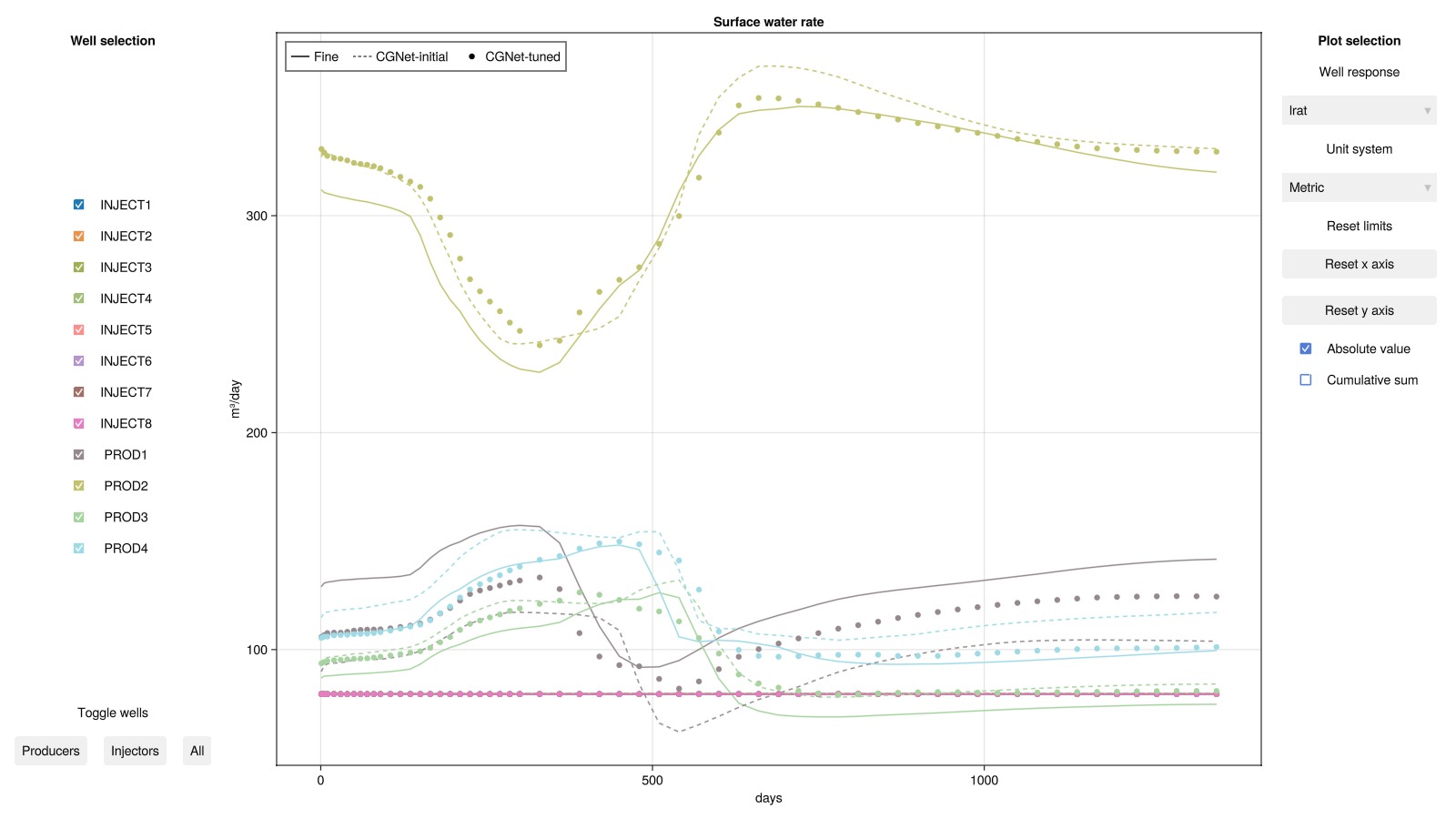

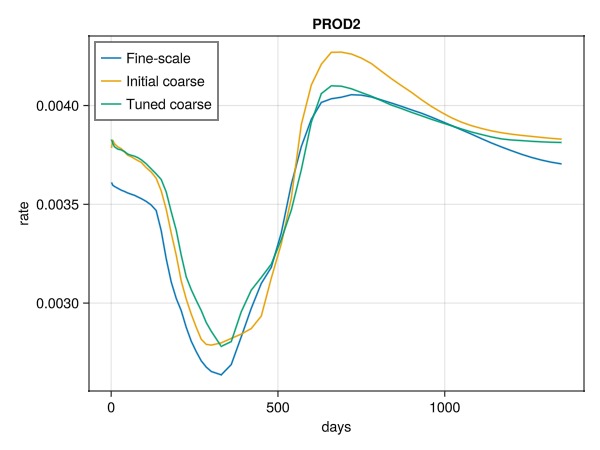

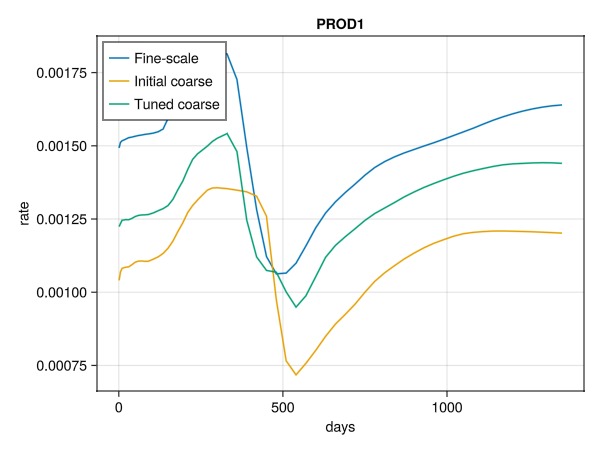

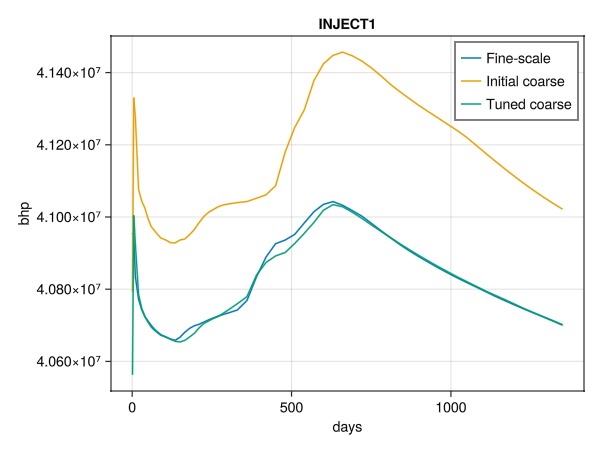

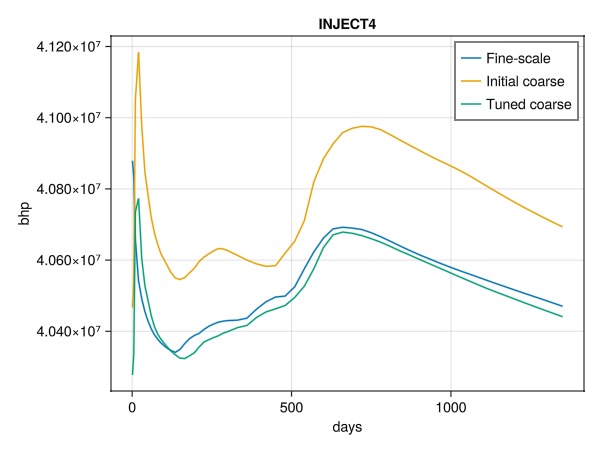

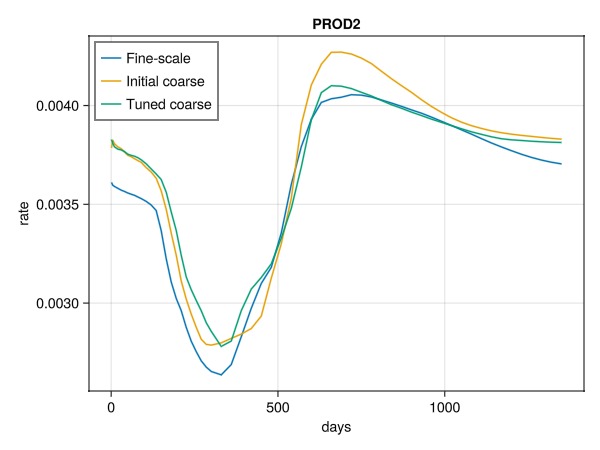

╰───────────────┴────────┴────────────┴────────╯Plot the results interactively
julia
using GLMakie

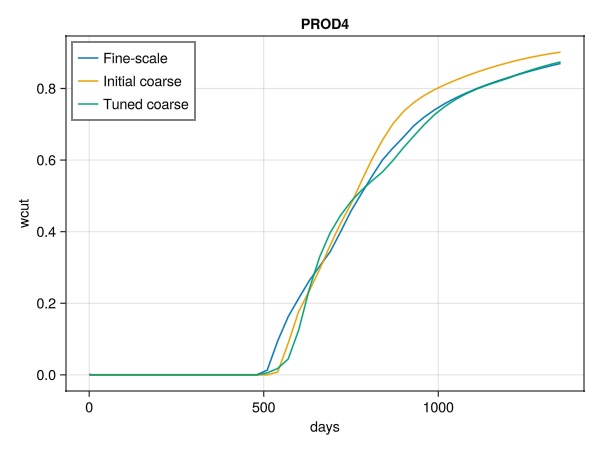

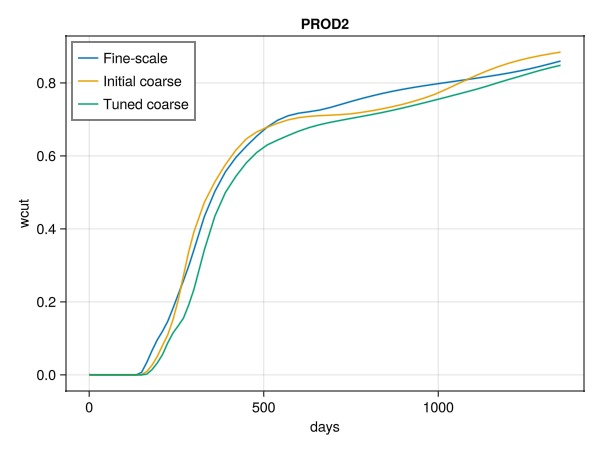

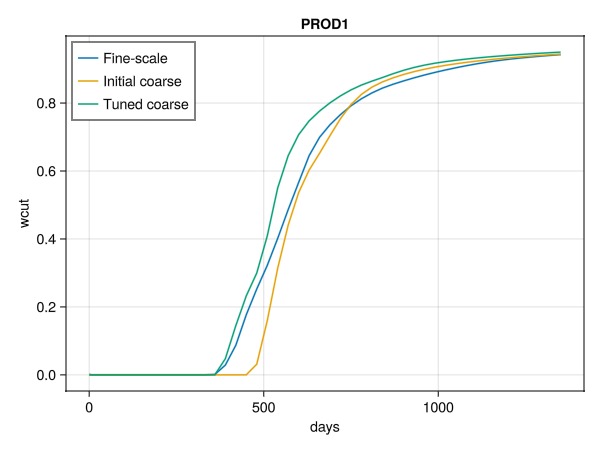

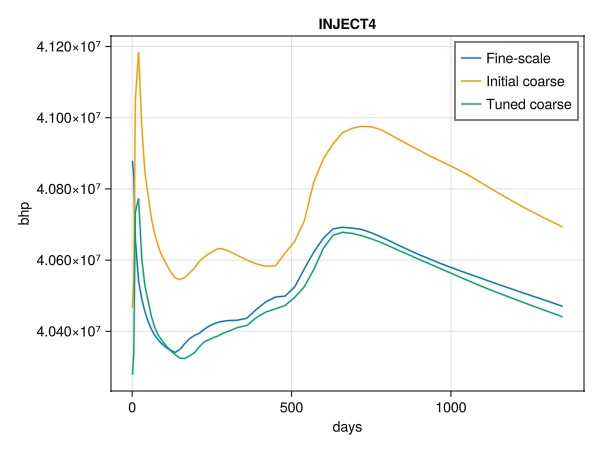

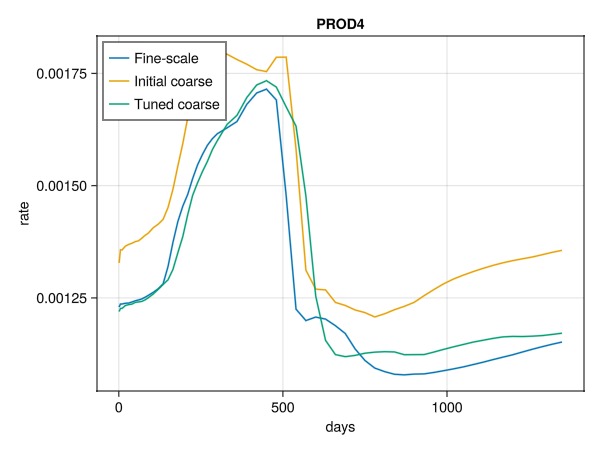

wells_f, = simulated_fine
wells_c, = simulated_coarse

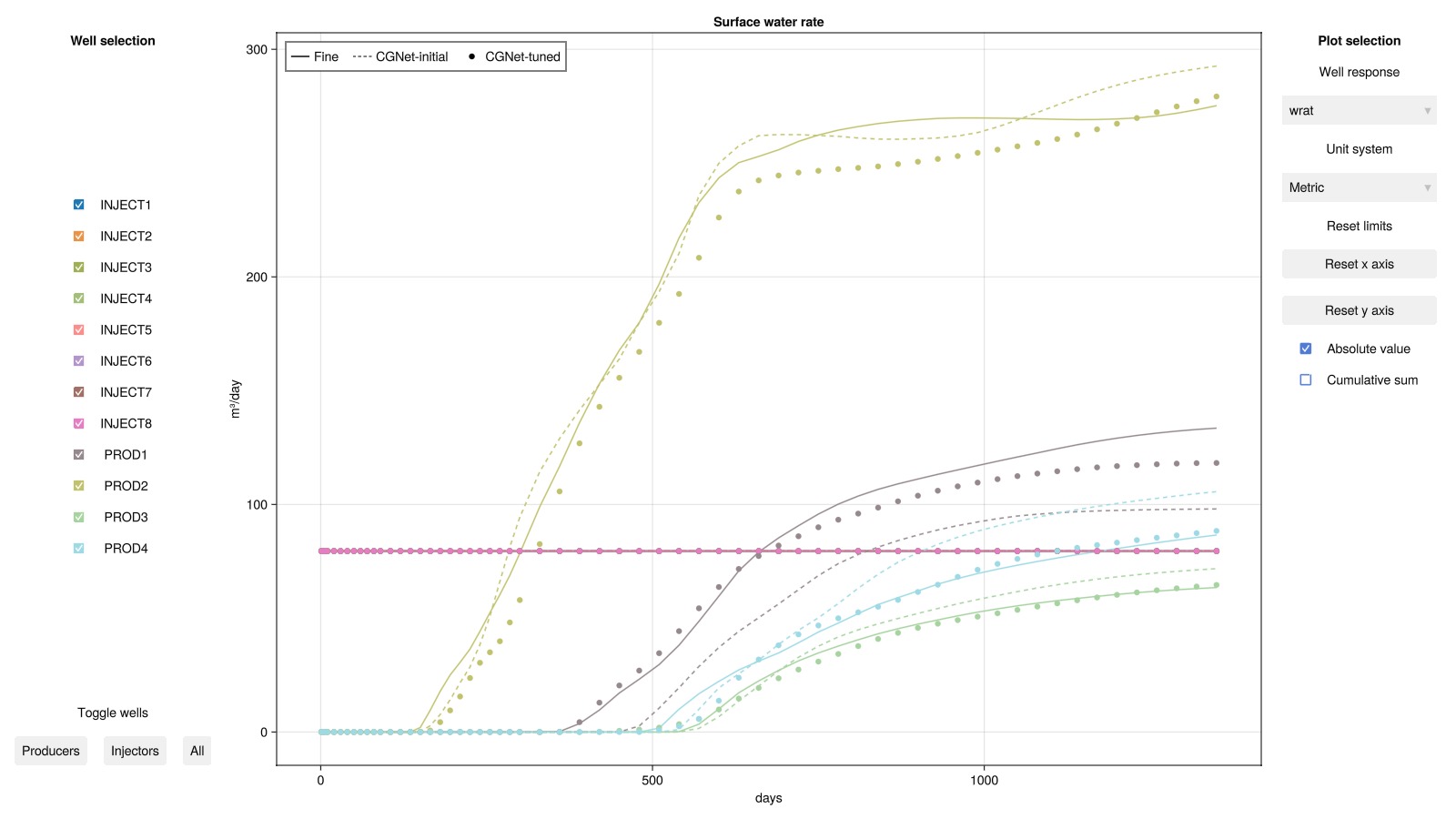

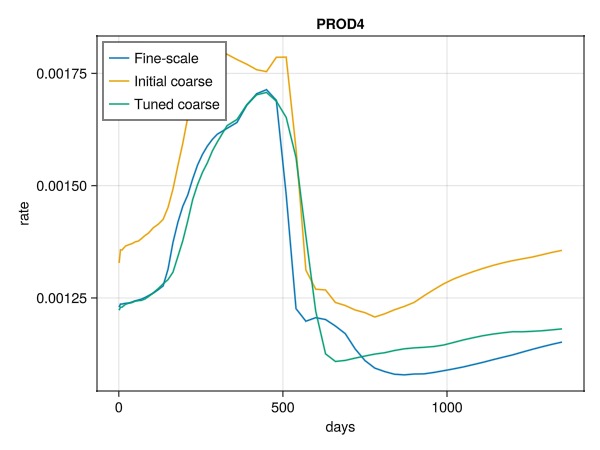

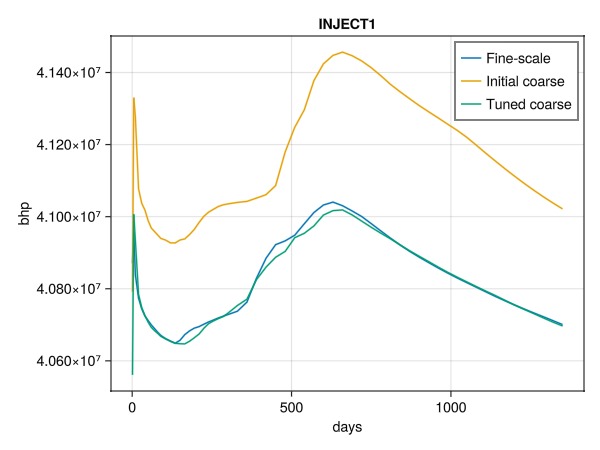

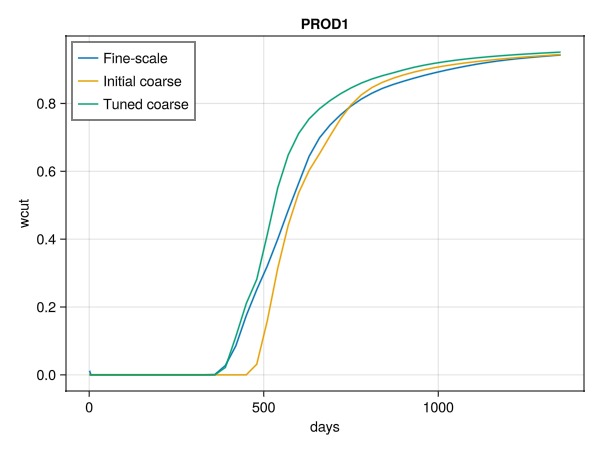

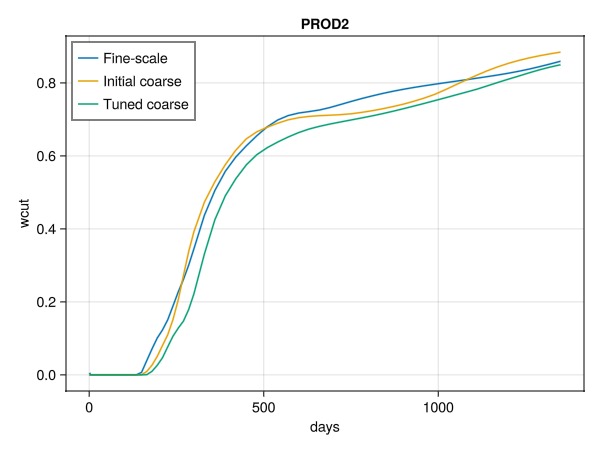

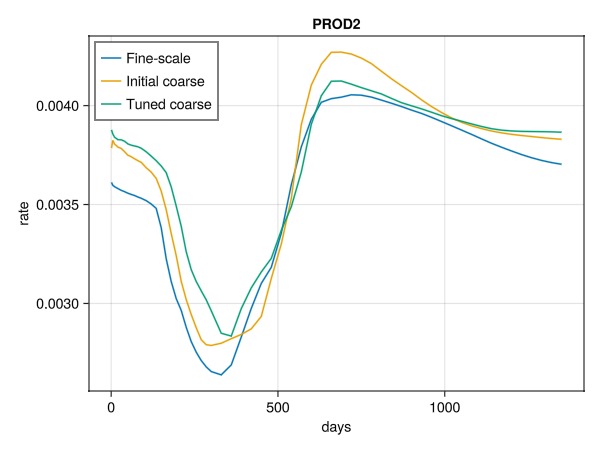

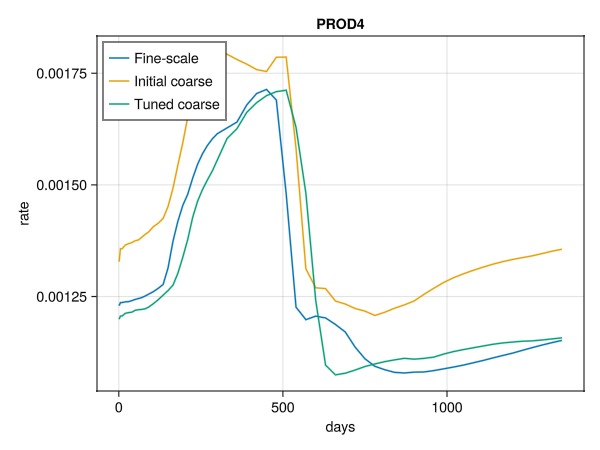

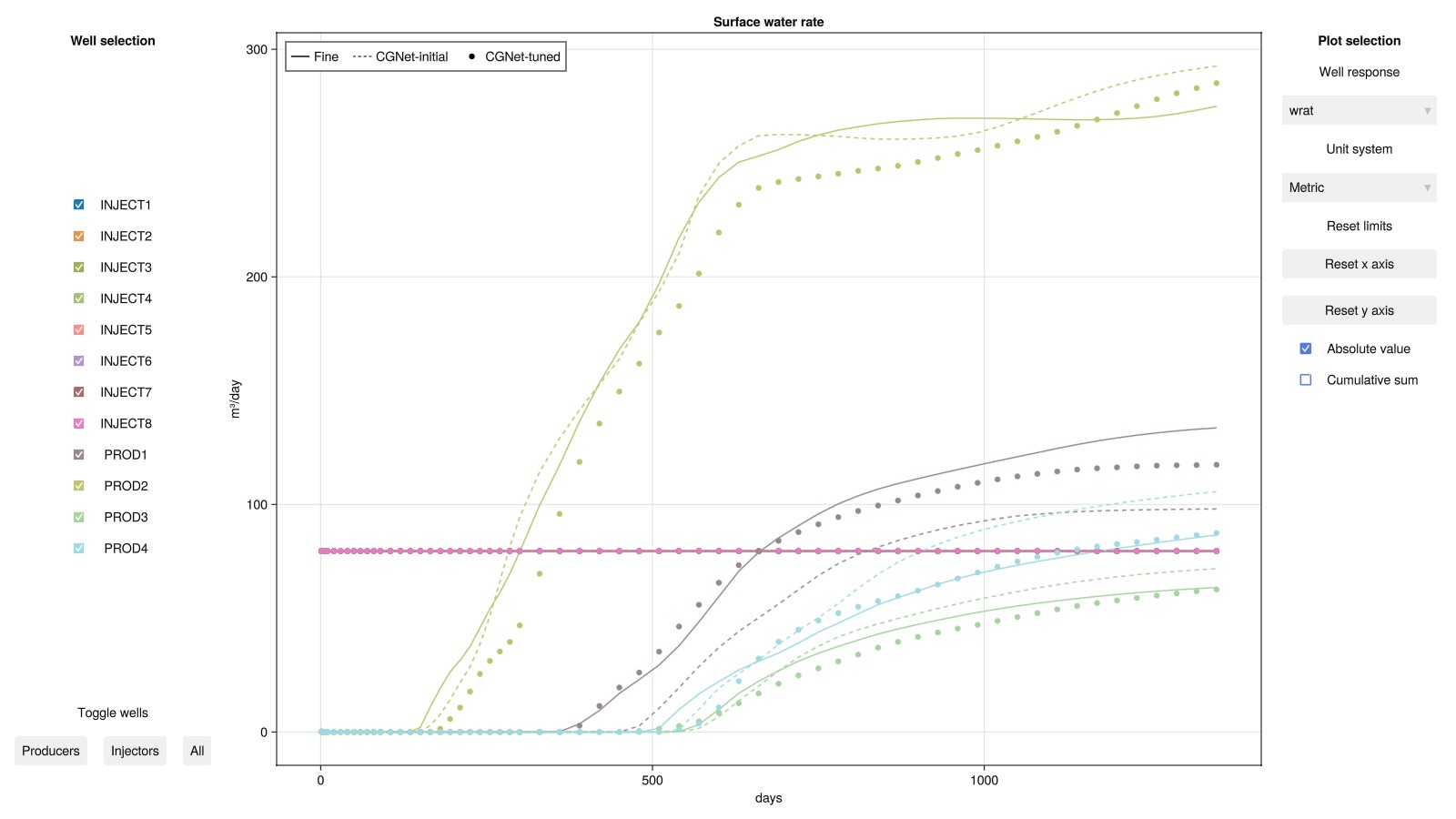

wells_t, states_t, time = simulated_tuned
plot_well_results([wells_f, wells_c, wells_t], time, names = ["Fine", "CGNet-initial", "CGNet-tuned"])
Create a function to compare individual wells
We next compare individual wells to see how the optimization has affected the match between the coarse scale and fine scale. As we can see, we have reasonably good match between the original model with about 18,000 cells and the coarse model with about 3000 cells. Even better match could be possible by adding more coarse blocks, or also optimizing for example the relative permeability parameters for the coarse model.
We plot the water cut and total rate for the production wells, and the bottom hole pressure for the injection wells.
julia
function plot_tuned_well(k, kw; lposition = :lt)
fig = Figure()
ax = Axis(fig[1, 1], title = "$k", xlabel = "days", ylabel = "$kw")
t = wells_f.time./si_unit(:day)
if kw == :wcut
F = x -> x[k, :wrat]./x[k, :lrat]
else
F = x -> abs.(x[k, kw])
end
lines!(ax, t, F(wells_f), label = "Fine-scale")
lines!(ax, t, F(wells_c), label = "Initial coarse")
lines!(ax, t, F(wells_t), label = "Tuned coarse")
axislegend(position = lposition)
fig
endplot_tuned_well (generic function with 1 method)Plot PROD1 water cut
julia
plot_tuned_well(:PROD1, :wcut)
Plot PROD2 water cut
julia
plot_tuned_well(:PROD2, :wcut)
Plot PROD4 water cut
julia

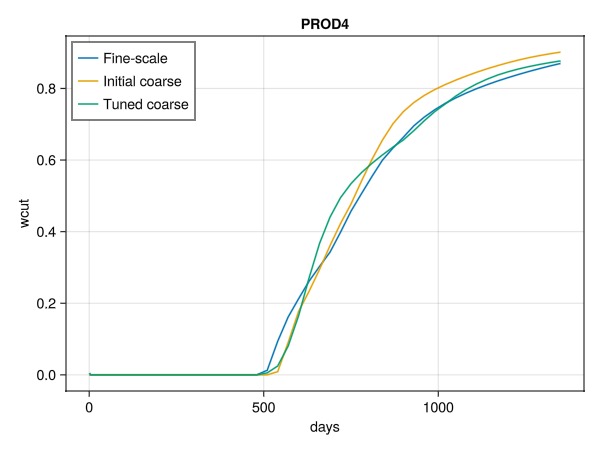

plot_tuned_well(:PROD4, :wcut)
Plot PROD1 total rate
julia
plot_tuned_well(:PROD1, :rate)
Plot PROD2 total rate
julia
plot_tuned_well(:PROD2, :rate)
Plot PROD4 total rate
julia

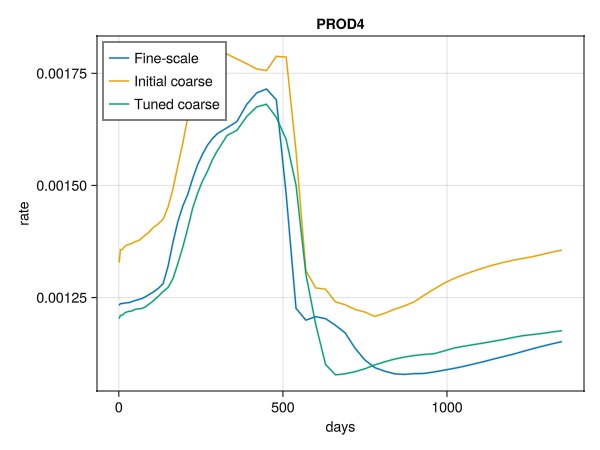

plot_tuned_well(:PROD4, :rate)
Plot INJECT1 bhp
julia
plot_tuned_well(:INJECT1, :bhp, lposition = :rt)
Plot INJECT4 bhp
julia

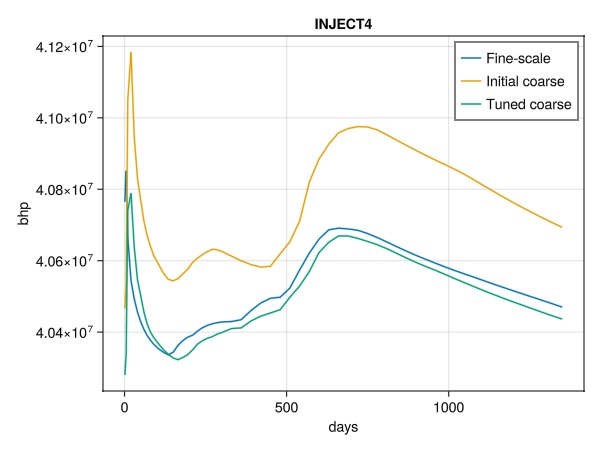

plot_tuned_well(:INJECT4, :bhp, lposition = :rt)

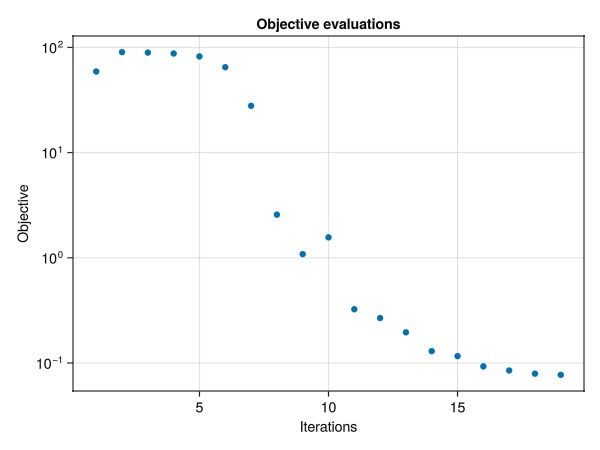

Plot the objective evaluations during optimization
julia
fig = Figure()
ys = log10
is = x -> x
ax1 = Axis(fig[1, 1], yscale = ys, title = "Objective evaluations", xlabel = "Iterations", ylabel = "Objective")
plot!(ax1, opt_setup[:data][:obj_hist][2:end])
fig
Plot the evoluation of scaled parameters

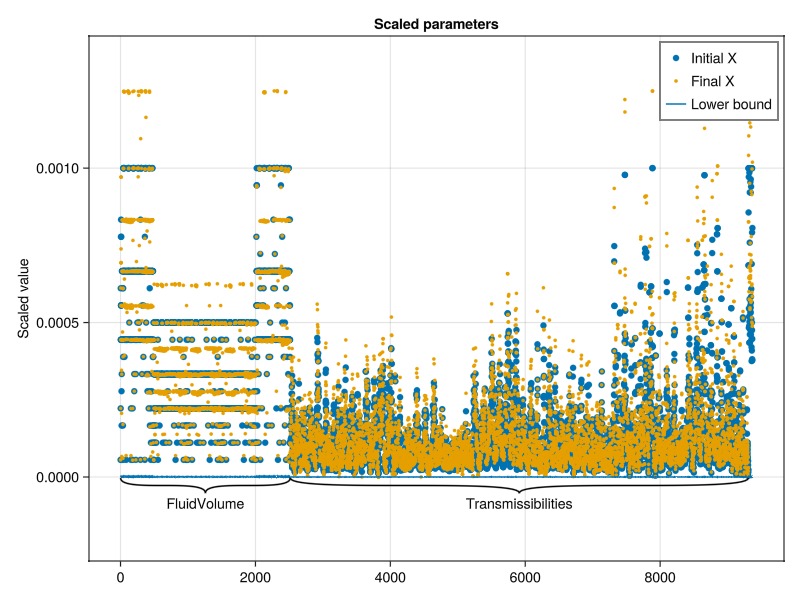

We show the difference between the initial and final values of the scaled parameters, as well as the lower bound.
JutulDarcy maps the parameters to a single vector for optimization with values that are approximately in the box limit range (0, 1). This is convenient for optimizers, but can also be useful when plotting the parameters, even if the units are not preserved in this visualization, only the magnitude.
julia
fig = Figure(size = (800, 600))
ax1 = Axis(fig[1, 1], title = "Scaled parameters", ylabel = "Scaled value")
scatter!(ax1, setup[:x0], label = "Initial X")
scatter!(ax1, final_x, label = "Final X", markersize = 5)
lines!(ax1, setup[:lower], label = "Lower bound")
axislegend()
trans = data[:mapper][:Reservoir][:Transmissibilities]
function plot_bracket(v, k)
start = v.offset+1
stop = v.offset+v.n
y0 = setup[:lower][start]
y1 = setup[:lower][stop]
bracket!(ax1, start, y0, stop, y1,
text = "$k", offset = 1, orientation = :down)
end
for (k, v) in pairs(data[:mapper][:Reservoir])
plot_bracket(v, k)
end
ylims!(ax1, (-0.2*maximum(final_x), nothing))
fig
Example on GitHub
If you would like to run this example yourself, it can be downloaded from the JutulDarcy.jl GitHub repository as a script, or as a Jupyter Notebook
This example took 193.749054162 seconds to complete.This page was generated using Literate.jl.
