PHREEQC coupling

Platform support

H2sim supports both sequential backends on Linux MATLAB through PhreeqcMatlab’s native IPhreeqc library and on Windows MATLAB through IPhreeqcCOM. Linux does not need a COM server. A full native-Linux MATLAB regression run is not recorded in the latest Local verification record. See Optional PHREEQC setup for installation, runtime requirements, and a verification command.

PHREEQCUSGS geochemical software ↗

Initialize with startupH2sim('phreeqc', true) before running chemistry examples, or call initializeH2simPhreeqc after core startup. Linux batch runs should use bash run_matlab_h2sim.sh --phreeqc "MATLAB statements" to configure the native-library runtime before MATLAB starts.

Two supported chemistry workflows share MRST flow and EOS gas–liquid partitioning, but assign microbial kinetics differently.

Workflow ownership

Workflow	Flow / transport	Microbial kinetics	Equilibrium chemistry
Compositional PHREEQC	MRST	Cell-local PHREEQC kinetics	PHREEQC after a flow timestep
Multirate PHREEQC	Coarse MRST flow step	MRST local reaction substeps	Aqueous-only PHREEQC after each reaction substep

Complete-cycle validation

result = runPhreeqcValidation( ...
    'gridCells', 20, 'totalDays', 250, 'rate', 'highrate');
plotCompositionalPhreeqcValidation(result);

The command above runs H2sim without an external checkout. The reference curves on this page are retained comparison data; reproducing that external run is optional, as described below.

The selected comparison uses a 20-cell, 50 m column and a complete 250-day cycle: 50 days of injection, 150 days of storage, and 50 days of production. Both implementations use Soreide–Whitson thermodynamics at 2.865 mol/kg NaCl and the high-rate MET/ACE/SRB parameter set. H2sim applies one chemistry split per 2-day flow step; the reference uses five chemistry substeps. Diffusion, dispersion, bacterial diffusion, chemotaxis, and bioclogging are disabled. Use a smaller even totalDays value for a prefix of this same schedule, for example totalDays=2 to check the first flow/chemistry step. The saved full-cycle results replace the earlier 50-day, moderate-rate example.

All consumption percentages use the total prescribed hydrogen injection as a fixed denominator, including at earlier times. The prescribed gas volume is converted to a nominal ideal-gas amount at the facility reference conditions (101325 Pa and 288.15 K). This differs from normalization by cumulative injection at each plotted time. Consumption is a reaction-source quadrature diagnostic, not an independent well-inventory deficit; dissolution and unrecovered gas are excluded.

Hydrogen consumption and dissolved-H₂ evolution over the complete cycle. Vertical lines mark the day-50 and day-200 control changes.

Consumed hydrogen (% of total prescribed injection)

Implementation	Day 50	Day 200	Day 250
Compositional PHREEQC	5.577	34.862	38.857
Reference	5.303	31.728	37.704

Conversion continues during storage without fresh injection. The final compositional result exceeds the reference by 1.153 percentage points. These results retain the measured discrepancy; they do not demonstrate splitting or spatial convergence. H2sim tracks acetate as an EOS component, whereas the reference uses nitrogen and separate aqueous organic-carbon bookkeeping.

Geochemical evolution

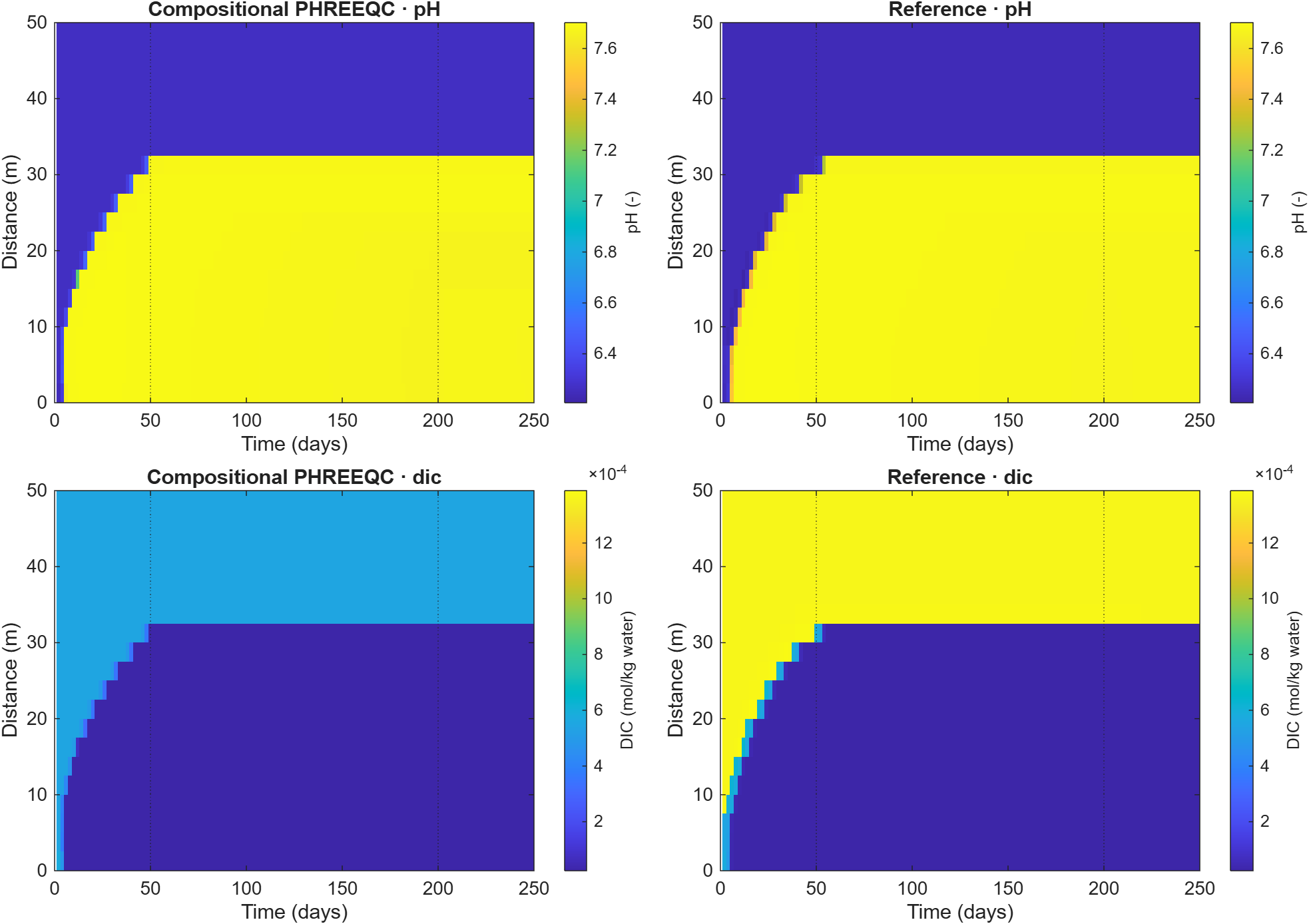

pH and total dissolved inorganic carbon (DIC) over 250 days. Color limits are shared between implementations for each observable. DIC is total inorganic-carbon molality, not only dissolved CO₂; the reference records it directly from PHREEQC selected output.

The pH and DIC fronts show how reactive aqueous chemistry evolves throughout injection, storage, and production. Similar bulk consumption does not imply identical spatial chemistry. The compositional run records 87 cell-step element-audit failures, with a maximum absolute residual of 3.61 × 10⁻⁵ mol. The reference does not expose the same elemental audit. These limitations remain part of the comparison.

Consumption by reaction

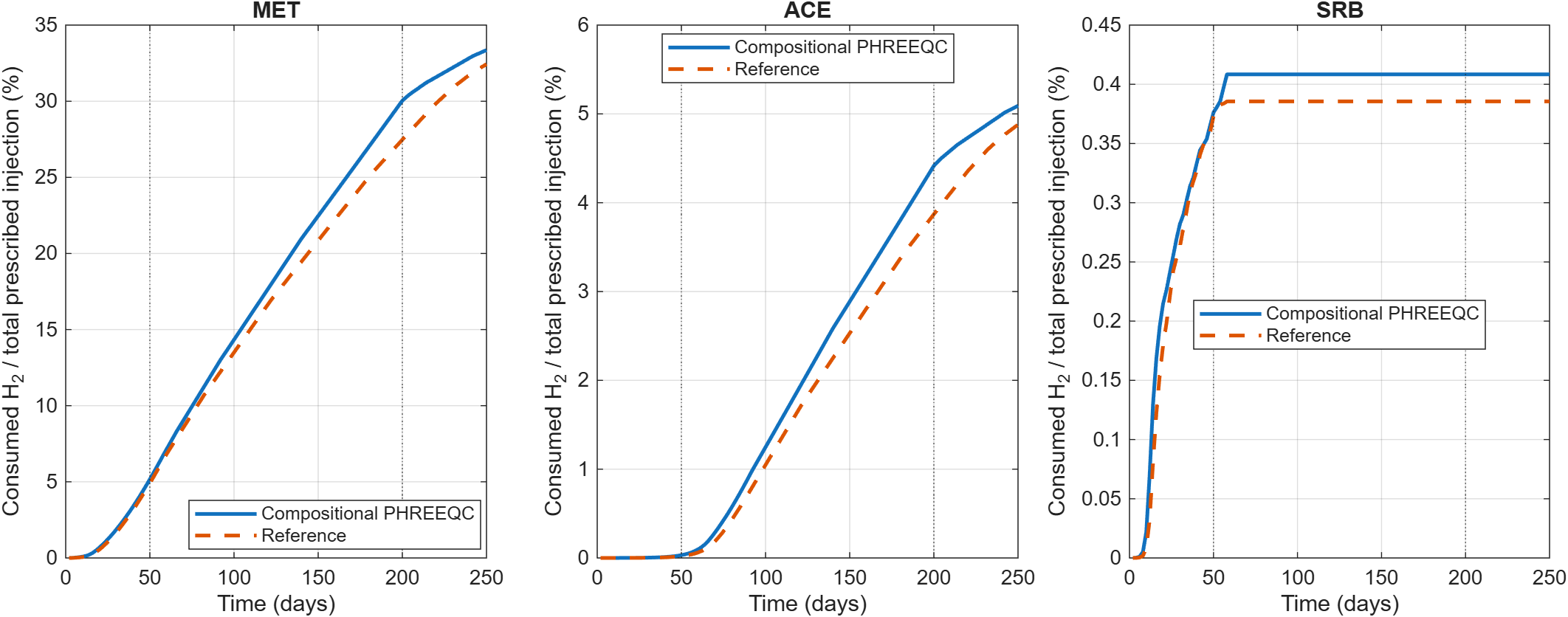

Separate MET, ACE, and SRB contributions, each normalized by total prescribed hydrogen injection. Their sum equals the total-consumption curve for the corresponding implementation.

At day 250, the compositional contributions are 33.357% (MET), 5.092% (ACE), and 0.408% (SRB), compared with 32.439%, 4.879%, and 0.386% in the reference. All plots use the full 0–250-day interval. Setups and accepted outputs remain saved as packed simulations; the plotting function also exports the loss history as CSV and every figure as PNG and vector PDF.

Open PHREEQC validation →

The external reference data shown on this page were generated with UGFACT by Ahmadreza Shojaee. The standalone case and runThreeBackendComparison require no external checkout. To reproduce those external reference data, explicitly request the optional comparison:

comparison = runPhreeqcValidation('referenceRoot', referenceRoot, ...
    'gridCells', 20, 'totalDays', 250, 'rate', 'highrate');

Only this optional reference uses a separate checkout and Windows COM. Its files and platform are checked before H2sim simulations start. Sources are staged locally, and the adapter retains the reference kinetic equations.

Compositional kinetic coupling

Set phreeqcBackend='sequential-compositional-phreeqc' and enable timestep coupling. PHREEQC integrates MET, ACE, and SRB kinetic amounts locally. MRST’s implicit microbial source terms are disabled to prevent double counting. Aqueous tracers remain transported in MRST.

comparison = exampleCompositionalBacterial1DPhreeqcMinerals( ...
    'gridCells', 4, 'maximumFlowSteps', 2);

This four-cell, two-step run checks setup and chemistry execution. The default example runs the complete 50-day injection period on 50 cells, comparing a microbial biochemistry baseline with Bentheimer, Berea and Grey Berea mineral inventories. It is a comparison of reaction backends as well as minerals; differences from the baseline cannot be attributed to mineral chemistry alone. Returned hydrogen consumption is in mol, and spatial loss is normalized by total prescribed injected hydrogen. Packed simulations reuse matching caches.

Batches reduce IPhreeqc call overhead. The example’s default batchSize is 50; pass 'batchSize', 1 to this example for individual cell calls. The underlying setup option is sequentialCompositionalPhreeqcBatchSize. Inactive-cell skipping records an explicit execution mask; a skipped identity update is not an independently evaluated chemistry audit.

Open the mineral chemistry setup check →

Three-backend comparison

runThreeBackendComparison runs three included H2sim formulations through injection, storage and production. Its default 50-cell, 250-day comparison is longer than a dependency check and requires no external reference checkout. The first case retains a reduced carbonate buffer with PHREEQC reactions off; the second uses PHREEQC microbial kinetics; the third uses multirate MRST microbial kinetics with PHREEQC equilibrium. Biomass and decay conventions also differ, so this comparison does not isolate mineral effects alone.

scenarios = runThreeBackendComparison('plotResults', false);
save('three_backend_comparison.mat', 'scenarios', '-v7');

The first two cases use two-day flow steps. flowTimestepMaxDt and reactionSubstepMaxDt control only the multirate case (defaults: two days and 0.4 day). Result profiles use the last injection, last storage and final states. Aqueous H2 is a liquid mole fraction; DIC is in mol/kgw. The time-dependent hydrogen loss uses total scheduled injected H2 as its denominator, including during injection. Historical MRST-prefixed labels identify H2sim results here; they do not select MRST’s separate biochemistry module.

Save the returned array explicitly to redraw without solving again:

saved = load('three_backend_comparison.mat', 'scenarios');
plotPhreeqcBackendComparison(saved.scenarios, ...
    'outputDirectory', fullfile(pwd, 'build', 'backend-figures'));

The driver retains simulations in memory and exports three PDF/PNG figures when plotting is enabled; it does not write a packed simulation archive.

Multirate aqueous equilibrium

The multirate model follows each coarse flow step with bounded local MRST microbial reaction substeps. PHREEQC equilibrates aqueous/mineral chemistry after each substep and refreshes the kinetic feedback. Its input contains no PHREEQC RATES or KINETICS blocks.

summary = exampleSequentialBiochemistryPhreeqc1D( ...
    'maximumFlowSteps', 2, 'plotResults', true, ...
    'phreeqcReflashParallel', false);

The example uses 50 cells over 50 m. Biomass starts at N/N0=1 with N0=1e9 cells/kgw, first-order decay and Nmax/N0=1e4. Time options use seconds; MRST’s day converts days to seconds. The default complete schedule contains 125 two-day flow steps with reaction substeps of at most 0.4 day.

Matching packed results are reused. maximumFlowSteps truncates the schedule before packing, so changing the limit selects a different cache identity rather than extending the previous run. simulationDirectory selects a packed-output root; leaving it empty uses the normal H2sim output directory. Runtime includes packing, simulation/cache access and output loading, excluding setup and plots. A short run checks execution and does not reproduce a complete storage cycle.

To retain and redraw the returned summary explicitly:

save('multirate_summary.mat', 'summary', '-v7');
saved = load('multirate_summary.mat', 'summary');
plotSequentialBiochemistryPhreeqc(saved.summary, ...
    'outputDirectory', fullfile(pwd, 'build', 'multirate-figures'));

Summary hydrogen quantities are mol; h2LossPercent uses total prescribed injection over the selected schedule as its denominator. The two plotted figures show final flow/chemistry profiles and cumulative biological consumption.

reactionSubstepMaxDt controls the local reaction cadence. Pressure flashes run serially by default; Parallel Computing Toolbox is optional. The separate simulateSequentialH2BiochemPhreeqc runner is an outer Picard scheme, distinct from this coarse-flow multirate example.

The saved 20-cell comparison covers all 250 days of injection, storage, and production. Final microbial consumption is 46.41% for multirate and 38.86% for compositional PHREEQC, normalized by total prescribed H₂ injection. The workflows differ in kinetic ownership, biomass representation, and splitting; this is not a convergence test of reaction substepping alone.

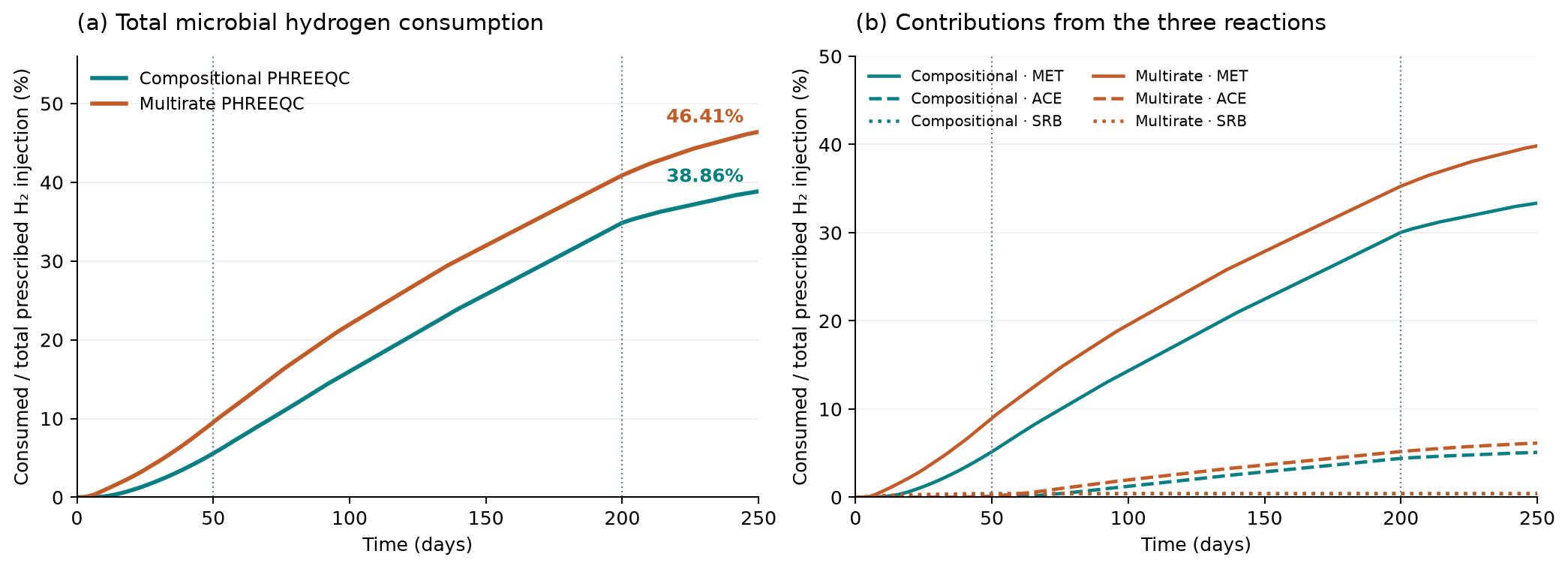

Full-cycle hydrogen consumption. Dotted lines mark day 50 and day 200. Percentages use total prescribed injection as a fixed denominator.

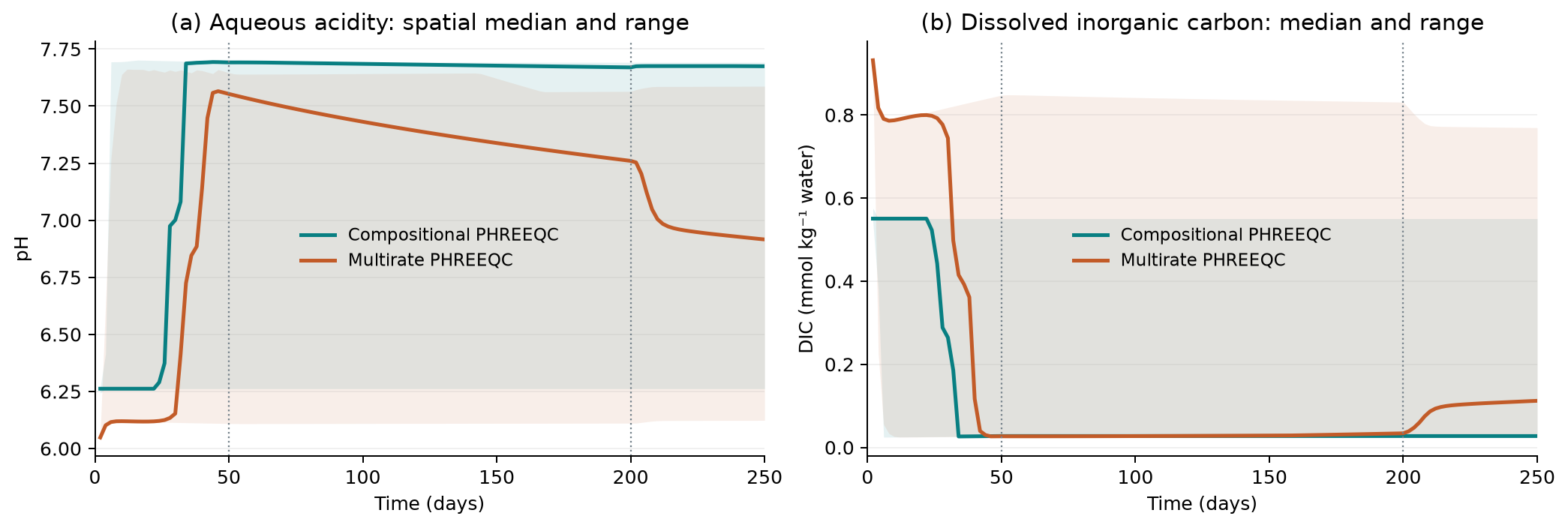

Chemistry histories: lines are spatial medians, shading is the cellwise range. The notebook also compares pH and DIC space-time maps and reports the available conservation diagnostics.

Open the full-cycle multirate comparison →

Three-cycle 2D storage

Explore the completed layered storage comparison with compositional PHREEQC: three cycles, hydrogen consumption by pathway, gas composition and pH maps, and an interactive animation of hydrogen and microbial evolution.

Spatial chemistry after the third injection period. The full example distinguishes mobile microbial transport from cell-local PHREEQC kinetics.

Explore the 2D results and animation →

Conservation diagnostics

The compositional backend records per-cell elemental inventories and warns when configured tolerances are exceeded. Inspect phreeqcElementBalancePass and phreeqcElementBalanceEvaluatedCells.

The current equilibrium-only implementation has its elemental audit disabled; its post-equilibrium EOS component-inventory audit remains active. A passing EOS audit alone does not establish elemental conservation across the chemistry handoff. Backend comparisons may also change kinetic parameters and ownership; a difference is not automatically a mineral or pH effect.

Profiling tools

results = profilePhreeqcWorkflows('backends', {'compositional'}, ...
    'collectProfiles', false, 'trials', 3);

Paired states and timings are saved under build/phreeqc-performance. Compare states and diagnostics before interpreting runtime improvements.
