Breakthrough curve
This example simulates the direct column breakthrough (DCB) of Haghpanah et al. (2013), and how the heat released by adsorption shapes it. A two-component flue gas (CO₂ and N₂) is fed into a column of zeolite 13X initially filled with N₂, until CO₂ breaks through at the outlet. A breakthrough is a single step rather than a cycle, so it is run once with simulate.
julia
import Mocca
using Mocca.UnitsGas, adsorbent and column
The gas, adsorbent and column of the paper; the process from its parts example sets them up from their parameters.
julia
gas = Mocca.haghpanah_2013_gas()
feed = Mocca.Feed(gas; composition = (CO2 = 0.15, N2 = 0.85), temperature = 298.15, pressure = 1bar)
adsorbent = Mocca.load_adsorbent("zeolite_13x_haghpanah_2013")
column = Mocca.haghpanah_2013_column()Column 1.0 m long, radius 0.1445 m (wall to 0.162 m), bed porosity 0.37The gas velocity follows Darcy's law,
with the permeability k of a packed bed of particles of diameter
add_bed! computes it, and the axial dispersion, from the adsorbent and column. In the DCB of the paper no heat leaves the column, so the bed is adiabatic.
julia
ncells = 200
fs = Mocca.Flowsheet(gas, feed)
Mocca.add_bed!(fs, :Bed, adsorbent, column; ncells = ncells, thermal = Mocca.Adiabatic())
Mocca.add_device!(fs, :V_feed, :feed; at = (:Bed, :bottom))
Mocca.add_device!(fs, :V_product, :product; at = (:Bed, :top))Flowsheet with 1 unit and 2 devices for CO2, N2
Bed: fixed bed of zeolite 13X, 200 cells
bottom V_feed (feed), from boundary at 1.0 bar
top V_product (product), to boundary at 1.0 barThe breakthrough as a one-step cycle
A single adsorption step of 5000 s at an interstitial velocity of 1 m/s. The column starts at the feed pressure, the lowest pressure of this cycle, full of nitrogen.
julia
cycle = Mocca.Cycle([Mocca.Adsorb(5000.0; velocity = 1.0)])
process = Mocca.Process(fs, cycle; timestepping = Mocca.TimeStepping(max_dt = 5000.0, first_dt = 5000.0))Process: CO2/N2 feed at 1.0 bar, 298.15 K, capturing CO2
Bed: fixed bed of zeolite 13X, 200 cells
bottom V_feed (feed), from boundary at 1.0 bar
top V_product (product), to boundary at 1.0 bar
cycle of 1 stages, 5000.0 s:
adsorption 5000.0 s V_feed, V_productRun the simulation
One report step of 5000 s, which the solver divides according to target changes of the state variables of the bed per step.
julia
selector = (Bed = (y = 0.01, Temperature = 10.0, Pressure = 10.0),)
result = Mocca.simulate(process; timestep_selector_cfg = selector)Mocca.Interface.ProcessResult(Process("", Flowsheet(UnitNetwork(Dict{Symbol, Jutul.SimulationModel{<:Any, <:MoccaSystem, <:Any, <:Any}}(:Bed => Jutul.SimulationModel{Jutul.DiscretizedDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, @NamedTuple{mass_flow::Jutul.PotentialFlow{:generic, Vector{Jutul.TPFA{Int64}}, Vector{Jutul.SPU{Int64}}, @NamedTuple{cells::Vector{Int64}, faces::Vector{Int64}, face_pos::Vector{Int64}, face_sign::Vector{Int64}}}}, Dict{Jutul.JutulEntity, Int64}, Jutul.TrivialGlobalMap}, FixedBed{2, Float64, DualSiteLangmuir{2, Float64}, LinearDrivingForce{Float64, Float64}, Adiabatic}, Jutul.FullyImplicitFormulation, Jutul.DefaultContext, Jutul.DataDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, Dict{Jutul.JutulEntity, Int64}, OrderedCollections.OrderedDict{Symbol, Any}}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulEquation}, Vector{Symbol}, OrderedCollections.OrderedDict{Symbol, Any}}(DiscretizedDomain with CartesianMesh (3D) with 200x1x1=200 cells and discretizations for mass_flow
, FixedBed{2, Float64, DualSiteLangmuir{2, Float64}, LinearDrivingForce{Float64, Float64}, Adiabatic}(["CO2", "N2"], [0.04401, 0.028], [697.5687, 1096.4], [697.5687, 1096.4], DualSiteLangmuir{2, Float64}([3489.44, 6613.551], [8.65e-7, 2.5e-6], [-36641.21, -15800.0], [2872.35, 0.0], [2.63e-8, 0.0], [-35690.66, 0.0], [-38690.992593180876, -18278.95618937]), LinearDrivingForce{Float64, Float64}(1.6e-5, 3.0, 0.35, 0.002), Adiabatic()), Jutul.DefaultContext(Jutul.EquationMajorLayout(false), 9223372036854775807, 1), Jutul.FullyImplicitFormulation(), Jutul.DataDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, Dict{Jutul.JutulEntity, Int64}, OrderedCollections.OrderedDict{Symbol, Any}}(CartesianMesh (3D) with 200x1x1=200 cells, Dict{Jutul.JutulEntity, Int64}(Jutul.NoEntity() => 1, Unit() => 1, Jutul.Cells() => 200, Jutul.Faces() => 199, Jutul.BoundaryFaces() => 802, Jutul.HalfFaces() => 398), OrderedCollections.OrderedDict{Symbol, Any}(:porosity => ([0.37, 0.37, 0.37, 0.37, 0.37, 0.37, 0.37, 0.37, 0.37, 0.37 … 0.37, 0.37, 0.37, 0.37, 0.37, 0.37, 0.37, 0.37, 0.37, 0.37], Jutul.Cells()), :permeability => ([3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9 … 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9], Jutul.Cells()), :neighbors => ([1 2 … 198 199; 2 3 … 199 200], Jutul.Faces()), :areas => ([0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828 … 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828], Jutul.Faces()), :normals => ([1.0 1.0 … 1.0 1.0; 0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0], Jutul.Faces()), :face_centroids => ([0.005 0.01 … 0.9899999999999999 0.9949999999999999; 0.12805979072792353 0.12805979072792353 … 0.12805979072792353 0.12805979072792353; 0.12805979072792353 0.12805979072792353 … 0.12805979072792353 0.12805979072792353], Jutul.Faces()), :cell_centroids => ([0.0025 0.0075 … 0.9924999999999999 0.9974999999999999; 0.12805979072792353 0.12805979072792353 … 0.12805979072792353 0.12805979072792353; 0.12805979072792353 0.12805979072792353 … 0.12805979072792353 0.12805979072792353], Jutul.Cells()), :volumes => ([0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914 … 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914], Jutul.Cells()), :half_face_cells => ([1, 2, 2, 3, 3, 4, 4, 5, 5, 6 … 195, 196, 196, 197, 197, 198, 198, 199, 199, 200], Jutul.HalfFaces()), :half_face_faces => ([1, 1, 2, 2, 3, 3, 4, 4, 5, 5 … 195, 195, 196, 196, 197, 197, 198, 198, 199, 199], Jutul.HalfFaces())…)), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(:Pressure => Mocca.Framework.Pressure(1000.0, Inf, 0.2, 100000.0), :y => Mocca.Framework.GasMoleFractions(0.2), :AdsorbedConcentration => Mocca.Balances.AdsorbedConcentration(), :Temperature => Mocca.Framework.Temperature(200.0, Inf, 0.2)), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(:TotalMolarConcentration => Mocca.Balances.TotalMolarConcentration(), :MolarConcentration => Mocca.Balances.MolarConcentration(), :AverageMolarMass => Mocca.Balances.AverageMolarMass(), :ComponentMasses => Mocca.Balances.ComponentMasses(), :AdsorptionMassTransfer => Mocca.Balances.AdsorptionMassTransfer(), :AdsorbedLoading => Mocca.Balances.AdsorbedLoading(), :ColumnConservedEnergy => Mocca.Balances.ColumnEnergy(), :ConservedPressure => Mocca.Balances.ConservedPressure(), :ΔH => Mocca.Balances.EnthalpyChange(), :C_pa => Mocca.Balances.SpecificHeatCapacityAdsorbent()…), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(:Transmissibilities => Mocca.Balances.Transmissibilities(), :SolidVolume => Mocca.Balances.BulkVolume(), :FluidVolume => Mocca.Balances.FluidVolume(), :WallAreaOut => Mocca.Balances.WallArea{:out}(), :WallAreaIn => Mocca.Balances.WallArea{:in}(), :CellDx => Mocca.Balances.CellDx(), :Permeability => Mocca.Balances.Permeability(), :ThermalConductivities => Mocca.Balances.ThermalConductivities(), :DispersionTransmissibilities => Mocca.Balances.DispersionTransmissibilities(), :AxialDispersion => Mocca.Balances.AxialDispersion()…), OrderedCollections.OrderedDict{Symbol, Jutul.JutulEquation}(:mass_conservation => Jutul.ConservationLaw{:ComponentMasses, Jutul.PotentialFlow{:generic, Vector{Jutul.TPFA{Int64}}, Vector{Jutul.SPU{Int64}}, @NamedTuple{cells::Vector{Int64}, faces::Vector{Int64}, face_pos::Vector{Int64}, face_sign::Vector{Int64}}}, Jutul.DefaultFlux, 2}(Jutul.PotentialFlow{:generic, Vector{Jutul.TPFA{Int64}}, Vector{Jutul.SPU{Int64}}, @NamedTuple{cells::Vector{Int64}, faces::Vector{Int64}, face_pos::Vector{Int64}, face_sign::Vector{Int64}}}(Jutul.TPFA{Int64}[Jutul.TPFA{Int64}(1, 2, 1), Jutul.TPFA{Int64}(2, 3, 1), Jutul.TPFA{Int64}(3, 4, 1), Jutul.TPFA{Int64}(4, 5, 1), Jutul.TPFA{Int64}(5, 6, 1), Jutul.TPFA{Int64}(6, 7, 1), Jutul.TPFA{Int64}(7, 8, 1), Jutul.TPFA{Int64}(8, 9, 1), Jutul.TPFA{Int64}(9, 10, 1), Jutul.TPFA{Int64}(10, 11, 1) … Jutul.TPFA{Int64}(190, 191, 1), Jutul.TPFA{Int64}(191, 192, 1), Jutul.TPFA{Int64}(192, 193, 1), Jutul.TPFA{Int64}(193, 194, 1), Jutul.TPFA{Int64}(194, 195, 1), Jutul.TPFA{Int64}(195, 196, 1), Jutul.TPFA{Int64}(196, 197, 1), Jutul.TPFA{Int64}(197, 198, 1), Jutul.TPFA{Int64}(198, 199, 1), Jutul.TPFA{Int64}(199, 200, 1)], Jutul.SPU{Int64}[Jutul.SPU{Int64}(1, 2), Jutul.SPU{Int64}(2, 3), Jutul.SPU{Int64}(3, 4), Jutul.SPU{Int64}(4, 5), Jutul.SPU{Int64}(5, 6), Jutul.SPU{Int64}(6, 7), Jutul.SPU{Int64}(7, 8), Jutul.SPU{Int64}(8, 9), Jutul.SPU{Int64}(9, 10), Jutul.SPU{Int64}(10, 11) … Jutul.SPU{Int64}(190, 191), Jutul.SPU{Int64}(191, 192), Jutul.SPU{Int64}(192, 193), Jutul.SPU{Int64}(193, 194), Jutul.SPU{Int64}(194, 195), Jutul.SPU{Int64}(195, 196), Jutul.SPU{Int64}(196, 197), Jutul.SPU{Int64}(197, 198), Jutul.SPU{Int64}(198, 199), Jutul.SPU{Int64}(199, 200)], (cells = [2, 1, 3, 2, 4, 3, 5, 4, 6, 5 … 196, 195, 197, 196, 198, 197, 199, 198, 200, 199], faces = [1, 1, 2, 2, 3, 3, 4, 4, 5, 5 … 195, 195, 196, 196, 197, 197, 198, 198, 199, 199], face_pos = [1, 2, 4, 6, 8, 10, 12, 14, 16, 18 … 382, 384, 386, 388, 390, 392, 394, 396, 398, 399], face_sign = [1, -1, 1, -1, 1, -1, 1, -1, 1, -1 … 1, -1, 1, -1, 1, -1, 1, -1, 1, -1])), Jutul.DefaultFlux()), :mass_transfer => Jutul.ConservationLaw{:AdsorbedLoading, Jutul.PotentialFlow{:generic, Vector{Jutul.TPFA{Int64}}, Vector{Jutul.SPU{Int64}}, @NamedTuple{cells::Vector{Int64}, faces::Vector{Int64}, face_pos::Vector{Int64}, face_sign::Vector{Int64}}}, Jutul.DefaultFlux, 2}(Jutul.PotentialFlow{:generic, Vector{Jutul.TPFA{Int64}}, Vector{Jutul.SPU{Int64}}, @NamedTuple{cells::Vector{Int64}, faces::Vector{Int64}, face_pos::Vector{Int64}, face_sign::Vector{Int64}}}(Jutul.TPFA{Int64}[Jutul.TPFA{Int64}(1, 2, 1), Jutul.TPFA{Int64}(2, 3, 1), Jutul.TPFA{Int64}(3, 4, 1), Jutul.TPFA{Int64}(4, 5, 1), Jutul.TPFA{Int64}(5, 6, 1), Jutul.TPFA{Int64}(6, 7, 1), Jutul.TPFA{Int64}(7, 8, 1), Jutul.TPFA{Int64}(8, 9, 1), Jutul.TPFA{Int64}(9, 10, 1), Jutul.TPFA{Int64}(10, 11, 1) … Jutul.TPFA{Int64}(190, 191, 1), Jutul.TPFA{Int64}(191, 192, 1), Jutul.TPFA{Int64}(192, 193, 1), Jutul.TPFA{Int64}(193, 194, 1), Jutul.TPFA{Int64}(194, 195, 1), Jutul.TPFA{Int64}(195, 196, 1), Jutul.TPFA{Int64}(196, 197, 1), Jutul.TPFA{Int64}(197, 198, 1), Jutul.TPFA{Int64}(198, 199, 1), Jutul.TPFA{Int64}(199, 200, 1)], Jutul.SPU{Int64}[Jutul.SPU{Int64}(1, 2), Jutul.SPU{Int64}(2, 3), Jutul.SPU{Int64}(3, 4), Jutul.SPU{Int64}(4, 5), Jutul.SPU{Int64}(5, 6), Jutul.SPU{Int64}(6, 7), Jutul.SPU{Int64}(7, 8), Jutul.SPU{Int64}(8, 9), Jutul.SPU{Int64}(9, 10), Jutul.SPU{Int64}(10, 11) … Jutul.SPU{Int64}(190, 191), Jutul.SPU{Int64}(191, 192), Jutul.SPU{Int64}(192, 193), Jutul.SPU{Int64}(193, 194), Jutul.SPU{Int64}(194, 195), Jutul.SPU{Int64}(195, 196), Jutul.SPU{Int64}(196, 197), Jutul.SPU{Int64}(197, 198), Jutul.SPU{Int64}(198, 199), Jutul.SPU{Int64}(199, 200)], (cells = [2, 1, 3, 2, 4, 3, 5, 4, 6, 5 … 196, 195, 197, 196, 198, 197, 199, 198, 200, 199], faces = [1, 1, 2, 2, 3, 3, 4, 4, 5, 5 … 195, 195, 196, 196, 197, 197, 198, 198, 199, 199], face_pos = [1, 2, 4, 6, 8, 10, 12, 14, 16, 18 … 382, 384, 386, 388, 390, 392, 394, 396, 398, 399], face_sign = [1, -1, 1, -1, 1, -1, 1, -1, 1, -1 … 1, -1, 1, -1, 1, -1, 1, -1, 1, -1])), Jutul.DefaultFlux()), :energy_column => Jutul.ConservationLaw{:ColumnConservedEnergy, Jutul.PotentialFlow{:generic, Vector{Jutul.TPFA{Int64}}, Vector{Jutul.SPU{Int64}}, @NamedTuple{cells::Vector{Int64}, faces::Vector{Int64}, face_pos::Vector{Int64}, face_sign::Vector{Int64}}}, Jutul.DefaultFlux, 1}(Jutul.PotentialFlow{:generic, Vector{Jutul.TPFA{Int64}}, Vector{Jutul.SPU{Int64}}, @NamedTuple{cells::Vector{Int64}, faces::Vector{Int64}, face_pos::Vector{Int64}, face_sign::Vector{Int64}}}(Jutul.TPFA{Int64}[Jutul.TPFA{Int64}(1, 2, 1), Jutul.TPFA{Int64}(2, 3, 1), Jutul.TPFA{Int64}(3, 4, 1), Jutul.TPFA{Int64}(4, 5, 1), Jutul.TPFA{Int64}(5, 6, 1), Jutul.TPFA{Int64}(6, 7, 1), Jutul.TPFA{Int64}(7, 8, 1), Jutul.TPFA{Int64}(8, 9, 1), Jutul.TPFA{Int64}(9, 10, 1), Jutul.TPFA{Int64}(10, 11, 1) … Jutul.TPFA{Int64}(190, 191, 1), Jutul.TPFA{Int64}(191, 192, 1), Jutul.TPFA{Int64}(192, 193, 1), Jutul.TPFA{Int64}(193, 194, 1), Jutul.TPFA{Int64}(194, 195, 1), Jutul.TPFA{Int64}(195, 196, 1), Jutul.TPFA{Int64}(196, 197, 1), Jutul.TPFA{Int64}(197, 198, 1), Jutul.TPFA{Int64}(198, 199, 1), Jutul.TPFA{Int64}(199, 200, 1)], Jutul.SPU{Int64}[Jutul.SPU{Int64}(1, 2), Jutul.SPU{Int64}(2, 3), Jutul.SPU{Int64}(3, 4), Jutul.SPU{Int64}(4, 5), Jutul.SPU{Int64}(5, 6), Jutul.SPU{Int64}(6, 7), Jutul.SPU{Int64}(7, 8), Jutul.SPU{Int64}(8, 9), Jutul.SPU{Int64}(9, 10), Jutul.SPU{Int64}(10, 11) … Jutul.SPU{Int64}(190, 191), Jutul.SPU{Int64}(191, 192), Jutul.SPU{Int64}(192, 193), Jutul.SPU{Int64}(193, 194), Jutul.SPU{Int64}(194, 195), Jutul.SPU{Int64}(195, 196), Jutul.SPU{Int64}(196, 197), Jutul.SPU{Int64}(197, 198), Jutul.SPU{Int64}(198, 199), Jutul.SPU{Int64}(199, 200)], (cells = [2, 1, 3, 2, 4, 3, 5, 4, 6, 5 … 196, 195, 197, 196, 198, 197, 199, 198, 200, 199], faces = [1, 1, 2, 2, 3, 3, 4, 4, 5, 5 … 195, 195, 196, 196, 197, 197, 198, 198, 199, 199], face_pos = [1, 2, 4, 6, 8, 10, 12, 14, 16, 18 … 382, 384, 386, 388, 390, 392, 394, 396, 398, 399], face_sign = [1, -1, 1, -1, 1, -1, 1, -1, 1, -1 … 1, -1, 1, -1, 1, -1, 1, -1, 1, -1])), Jutul.DefaultFlux())), [:Pressure, :y, :AdsorbedConcentration, :Temperature], OrderedCollections.OrderedDict{Symbol, Any}(), 1), :V_feed => Jutul.SimulationModel{Jutul.DiscretizedDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, Nothing, Dict{Jutul.JutulEntity, Int64}, Jutul.TrivialGlobalMap}, FlowDevice, Jutul.FullyImplicitFormulation, Jutul.DefaultContext, Jutul.DataDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, Dict{Jutul.JutulEntity, Int64}, OrderedCollections.OrderedDict{Symbol, Any}}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulEquation}, Vector{Symbol}, OrderedCollections.OrderedDict{Symbol, Any}}(DiscretizedDomain with CartesianMesh (3D) with 1x1x1=1 cells
, FlowDevice(["CO2", "N2"]), Jutul.DefaultContext(Jutul.EquationMajorLayout(false), 9223372036854775807, 1), Jutul.FullyImplicitFormulation(), Jutul.DataDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, Dict{Jutul.JutulEntity, Int64}, OrderedCollections.OrderedDict{Symbol, Any}}(CartesianMesh (3D) with 1x1x1=1 cells, Dict{Jutul.JutulEntity, Int64}(Jutul.NoEntity() => 1, Unit() => 1, Jutul.Cells() => 1, Jutul.Faces() => 0, Jutul.BoundaryFaces() => 6, Jutul.HalfFaces() => 0), OrderedCollections.OrderedDict{Symbol, Any}(:neighbors => (Matrix{Int64}(undef, 2, 0), Jutul.Faces()), :areas => (Float64[], Jutul.Faces()), :normals => (Matrix{Float64}(undef, 3, 0), Jutul.Faces()), :face_centroids => (Matrix{Float64}(undef, 3, 0), Jutul.Faces()), :cell_centroids => ([0.5; 0.5; 0.5;;], Jutul.Cells()), :volumes => ([1.0], Jutul.Cells()), :half_face_cells => (Int64[], Jutul.HalfFaces()), :half_face_faces => (Int64[], Jutul.HalfFaces()), :boundary_areas => ([1.0, 1.0, 1.0, 1.0, 1.0, 1.0], Jutul.BoundaryFaces()), :boundary_centroids => ([0.0 1.0 … 0.5 0.5; 0.5 0.5 … 0.5 0.5; 0.5 0.5 … 0.0 1.0], Jutul.BoundaryFaces())…)), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(:InletPressure => Mocca.Framework.Pressure(1000.0, Inf, Inf, 100000.0), :InletTemperature => Mocca.Framework.Temperature(200.0, Inf, Inf), :InletComposition => Mocca.Framework.GasMoleFractions(Inf), :OutletPressure => Mocca.Framework.Pressure(1000.0, Inf, Inf, 100000.0), :OutletTemperature => Mocca.Framework.Temperature(200.0, Inf, Inf), :OutletComposition => Mocca.Framework.GasMoleFractions(Inf), :MolarFlow => Mocca.Devices.DeviceMolarFlow()), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(), OrderedCollections.OrderedDict{Symbol, Jutul.JutulEquation}(:inlet_state => Mocca.Devices.PortStateEquation{1}(), :outlet_state => Mocca.Devices.PortStateEquation{2}(), :device_law => Mocca.Devices.DeviceLawEquation()), [:InletPressure, :InletTemperature, :InletComposition, :OutletPressure, :OutletTemperature, :OutletComposition, :MolarFlow], OrderedCollections.OrderedDict{Symbol, Any}(), 1), :V_product => Jutul.SimulationModel{Jutul.DiscretizedDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, Nothing, Dict{Jutul.JutulEntity, Int64}, Jutul.TrivialGlobalMap}, FlowDevice, Jutul.FullyImplicitFormulation, Jutul.DefaultContext, Jutul.DataDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, Dict{Jutul.JutulEntity, Int64}, OrderedCollections.OrderedDict{Symbol, Any}}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulEquation}, Vector{Symbol}, OrderedCollections.OrderedDict{Symbol, Any}}(DiscretizedDomain with CartesianMesh (3D) with 1x1x1=1 cells
, FlowDevice(["CO2", "N2"]), Jutul.DefaultContext(Jutul.EquationMajorLayout(false), 9223372036854775807, 1), Jutul.FullyImplicitFormulation(), Jutul.DataDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, Dict{Jutul.JutulEntity, Int64}, OrderedCollections.OrderedDict{Symbol, Any}}(CartesianMesh (3D) with 1x1x1=1 cells, Dict{Jutul.JutulEntity, Int64}(Jutul.NoEntity() => 1, Unit() => 1, Jutul.Cells() => 1, Jutul.Faces() => 0, Jutul.BoundaryFaces() => 6, Jutul.HalfFaces() => 0), OrderedCollections.OrderedDict{Symbol, Any}(:neighbors => (Matrix{Int64}(undef, 2, 0), Jutul.Faces()), :areas => (Float64[], Jutul.Faces()), :normals => (Matrix{Float64}(undef, 3, 0), Jutul.Faces()), :face_centroids => (Matrix{Float64}(undef, 3, 0), Jutul.Faces()), :cell_centroids => ([0.5; 0.5; 0.5;;], Jutul.Cells()), :volumes => ([1.0], Jutul.Cells()), :half_face_cells => (Int64[], Jutul.HalfFaces()), :half_face_faces => (Int64[], Jutul.HalfFaces()), :boundary_areas => ([1.0, 1.0, 1.0, 1.0, 1.0, 1.0], Jutul.BoundaryFaces()), :boundary_centroids => ([0.0 1.0 … 0.5 0.5; 0.5 0.5 … 0.5 0.5; 0.5 0.5 … 0.0 1.0], Jutul.BoundaryFaces())…)), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(:InletPressure => Mocca.Framework.Pressure(1000.0, Inf, Inf, 100000.0), :InletTemperature => Mocca.Framework.Temperature(200.0, Inf, Inf), :InletComposition => Mocca.Framework.GasMoleFractions(Inf), :OutletPressure => Mocca.Framework.Pressure(1000.0, Inf, Inf, 100000.0), :OutletTemperature => Mocca.Framework.Temperature(200.0, Inf, Inf), :OutletComposition => Mocca.Framework.GasMoleFractions(Inf), :MolarFlow => Mocca.Devices.DeviceMolarFlow()), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(), OrderedCollections.OrderedDict{Symbol, Jutul.JutulEquation}(:inlet_state => Mocca.Devices.PortStateEquation{1}(), :outlet_state => Mocca.Devices.PortStateEquation{2}(), :device_law => Mocca.Devices.DeviceLawEquation()), [:InletPressure, :InletTemperature, :InletComposition, :OutletPressure, :OutletTemperature, :OutletComposition, :MolarFlow], OrderedCollections.OrderedDict{Symbol, Any}(), 1)), [:Bed, :V_feed, :V_product], AbstractConnection[StreamConnection(PortRef(:Bed, :bottom), PortRef(:V_feed, :outlet)), StreamConnection(PortRef(:Bed, :top), PortRef(:V_product, :inlet))], Dict{PortRef, PortCondition}(PortRef(:V_product, :outlet) => PortCondition{Float64, Float64, Vector{Float64}}(100000.0, 298.15, [1.0e-10, 0.9999999999000001]), PortRef(:V_feed, :inlet) => PortCondition{Float64, Float64, Vector{Float64}}(100000.0, 298.15, [0.15, 0.85]))), Gas(["CO2", "N2"], [0.04401, 0.028], [697.5687, 1096.4], 1.72e-5, 1.22638310956, 1.6e-5), Feed([0.15, 0.85], 298.15, 100000.0, [1.0e-10, 0.9999999999000001], false), Dict(:V_feed => :feed, :V_product => :product), Dict{Symbol, Mocca.Interface.BedSpec}(:Bed => Mocca.Interface.BedSpec(Adsorbent("zeolite 13X", Mocca.Interface.DualSiteLangmuirData(["CO2", "N2"], [3489.44, 6613.551], [8.65e-7, 2.5e-6], [-36641.21, -15800.0], [2872.35, 0.0], [2.63e-8, 0.0], [-35690.66, 0.0], 298.15, :volume), 1130.0, 1070.0, 0.002, 0.35, 3.0, Dict("N2" => 1096.4, "CO2" => 697.5687), nothing, "Haghpanah et al., Ind. Eng. Chem. Res. 52 (2013) 4249, doi:10.1021/ie302658y. Capacities per m³ of adsorbent."), Column(1.0, 0.1445, 0.162, 0.37, 0.0903, Wall(7800.0, 502.0, 16.0), 8.6, 2.5, 298.15), 200, Adiabatic(), :adsorption, nothing, nothing, 1.0)), Set(PortRef[PortRef(:V_product, :outlet), PortRef(:V_feed, :inlet)])), Cycle(Pair{String, Vector{Any}}["" => [Adsorb(5000.0, 1.0, nothing, nothing, nothing, nothing, nothing, nothing, nothing, "")]], nothing), TimeStepping(5000.0, 5000.0, :auto), Mocca.Interface.ProcessOptions(1, 101325.0, 0.72, 1.4, 0.5), Dict{Symbol, Any}(), Dict{Symbol, Dict{Symbol, Any}}(), Any[], Jutul.MultiModel{nothing, Jutul.JutulStorage, Vector{Jutul.CrossTermPair}, Nothing, Jutul.DefaultContext, Dict{Symbol, Int64}, Vector{Jutul.DeviceExecutionMode}}(Jutul.JutulStorage(OrderedCollections.OrderedDict{Symbol, Any}(:Bed => Jutul.SimulationModel{Jutul.DiscretizedDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, @NamedTuple{mass_flow::Jutul.PotentialFlow{:generic, Vector{Jutul.TPFA{Int64}}, Vector{Jutul.SPU{Int64}}, @NamedTuple{cells::Vector{Int64}, faces::Vector{Int64}, face_pos::Vector{Int64}, face_sign::Vector{Int64}}}}, Dict{Jutul.JutulEntity, Int64}, Jutul.TrivialGlobalMap}, FixedBed{2, Float64, DualSiteLangmuir{2, Float64}, LinearDrivingForce{Float64, Float64}, Adiabatic}, Jutul.FullyImplicitFormulation, Jutul.DefaultContext, Jutul.DataDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, Dict{Jutul.JutulEntity, Int64}, OrderedCollections.OrderedDict{Symbol, Any}}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulEquation}, Vector{Symbol}, OrderedCollections.OrderedDict{Symbol, Any}}(DiscretizedDomain with CartesianMesh (3D) with 200x1x1=200 cells and discretizations for mass_flow
, FixedBed{2, Float64, DualSiteLangmuir{2, Float64}, LinearDrivingForce{Float64, Float64}, Adiabatic}(["CO2", "N2"], [0.04401, 0.028], [697.5687, 1096.4], [697.5687, 1096.4], DualSiteLangmuir{2, Float64}([3489.44, 6613.551], [8.65e-7, 2.5e-6], [-36641.21, -15800.0], [2872.35, 0.0], [2.63e-8, 0.0], [-35690.66, 0.0], [-38690.992593180876, -18278.95618937]), LinearDrivingForce{Float64, Float64}(1.6e-5, 3.0, 0.35, 0.002), Adiabatic()), Jutul.DefaultContext(Jutul.EquationMajorLayout(false), 9223372036854775807, 1), Jutul.FullyImplicitFormulation(), Jutul.DataDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, Dict{Jutul.JutulEntity, Int64}, OrderedCollections.OrderedDict{Symbol, Any}}(CartesianMesh (3D) with 200x1x1=200 cells, Dict{Jutul.JutulEntity, Int64}(Jutul.NoEntity() => 1, Unit() => 1, Jutul.Cells() => 200, Jutul.Faces() => 199, Jutul.BoundaryFaces() => 802, Jutul.HalfFaces() => 398), OrderedCollections.OrderedDict{Symbol, Any}(:porosity => ([0.37, 0.37, 0.37, 0.37, 0.37, 0.37, 0.37, 0.37, 0.37, 0.37 … 0.37, 0.37, 0.37, 0.37, 0.37, 0.37, 0.37, 0.37, 0.37, 0.37], Jutul.Cells()), :permeability => ([3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9 … 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9, 3.403241790543378e-9], Jutul.Cells()), :neighbors => ([1 2 … 198 199; 2 3 … 199 200], Jutul.Faces()), :areas => ([0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828 … 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828, 0.06559724000511828], Jutul.Faces()), :normals => ([1.0 1.0 … 1.0 1.0; 0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0], Jutul.Faces()), :face_centroids => ([0.005 0.01 … 0.9899999999999999 0.9949999999999999; 0.12805979072792353 0.12805979072792353 … 0.12805979072792353 0.12805979072792353; 0.12805979072792353 0.12805979072792353 … 0.12805979072792353 0.12805979072792353], Jutul.Faces()), :cell_centroids => ([0.0025 0.0075 … 0.9924999999999999 0.9974999999999999; 0.12805979072792353 0.12805979072792353 … 0.12805979072792353 0.12805979072792353; 0.12805979072792353 0.12805979072792353 … 0.12805979072792353 0.12805979072792353], Jutul.Cells()), :volumes => ([0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914 … 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914, 0.0003279862000255914], Jutul.Cells()), :half_face_cells => ([1, 2, 2, 3, 3, 4, 4, 5, 5, 6 … 195, 196, 196, 197, 197, 198, 198, 199, 199, 200], Jutul.HalfFaces()), :half_face_faces => ([1, 1, 2, 2, 3, 3, 4, 4, 5, 5 … 195, 195, 196, 196, 197, 197, 198, 198, 199, 199], Jutul.HalfFaces())…)), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(:Pressure => Mocca.Framework.Pressure(1000.0, Inf, 0.2, 100000.0), :y => Mocca.Framework.GasMoleFractions(0.2), :AdsorbedConcentration => Mocca.Balances.AdsorbedConcentration(), :Temperature => Mocca.Framework.Temperature(200.0, Inf, 0.2)), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(:TotalMolarConcentration => Mocca.Balances.TotalMolarConcentration(), :MolarConcentration => Mocca.Balances.MolarConcentration(), :AverageMolarMass => Mocca.Balances.AverageMolarMass(), :ComponentMasses => Mocca.Balances.ComponentMasses(), :AdsorptionMassTransfer => Mocca.Balances.AdsorptionMassTransfer(), :AdsorbedLoading => Mocca.Balances.AdsorbedLoading(), :ColumnConservedEnergy => Mocca.Balances.ColumnEnergy(), :ConservedPressure => Mocca.Balances.ConservedPressure(), :ΔH => Mocca.Balances.EnthalpyChange(), :C_pa => Mocca.Balances.SpecificHeatCapacityAdsorbent()…), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(:Transmissibilities => Mocca.Balances.Transmissibilities(), :SolidVolume => Mocca.Balances.BulkVolume(), :FluidVolume => Mocca.Balances.FluidVolume(), :WallAreaOut => Mocca.Balances.WallArea{:out}(), :WallAreaIn => Mocca.Balances.WallArea{:in}(), :CellDx => Mocca.Balances.CellDx(), :Permeability => Mocca.Balances.Permeability(), :ThermalConductivities => Mocca.Balances.ThermalConductivities(), :DispersionTransmissibilities => Mocca.Balances.DispersionTransmissibilities(), :AxialDispersion => Mocca.Balances.AxialDispersion()…), OrderedCollections.OrderedDict{Symbol, Jutul.JutulEquation}(:mass_conservation => Jutul.ConservationLaw{:ComponentMasses, Jutul.PotentialFlow{:generic, Vector{Jutul.TPFA{Int64}}, Vector{Jutul.SPU{Int64}}, @NamedTuple{cells::Vector{Int64}, faces::Vector{Int64}, face_pos::Vector{Int64}, face_sign::Vector{Int64}}}, Jutul.DefaultFlux, 2}(Jutul.PotentialFlow{:generic, Vector{Jutul.TPFA{Int64}}, Vector{Jutul.SPU{Int64}}, @NamedTuple{cells::Vector{Int64}, faces::Vector{Int64}, face_pos::Vector{Int64}, face_sign::Vector{Int64}}}(Jutul.TPFA{Int64}[Jutul.TPFA{Int64}(1, 2, 1), Jutul.TPFA{Int64}(2, 3, 1), Jutul.TPFA{Int64}(3, 4, 1), Jutul.TPFA{Int64}(4, 5, 1), Jutul.TPFA{Int64}(5, 6, 1), Jutul.TPFA{Int64}(6, 7, 1), Jutul.TPFA{Int64}(7, 8, 1), Jutul.TPFA{Int64}(8, 9, 1), Jutul.TPFA{Int64}(9, 10, 1), Jutul.TPFA{Int64}(10, 11, 1) … Jutul.TPFA{Int64}(190, 191, 1), Jutul.TPFA{Int64}(191, 192, 1), Jutul.TPFA{Int64}(192, 193, 1), Jutul.TPFA{Int64}(193, 194, 1), Jutul.TPFA{Int64}(194, 195, 1), Jutul.TPFA{Int64}(195, 196, 1), Jutul.TPFA{Int64}(196, 197, 1), Jutul.TPFA{Int64}(197, 198, 1), Jutul.TPFA{Int64}(198, 199, 1), Jutul.TPFA{Int64}(199, 200, 1)], Jutul.SPU{Int64}[Jutul.SPU{Int64}(1, 2), Jutul.SPU{Int64}(2, 3), Jutul.SPU{Int64}(3, 4), Jutul.SPU{Int64}(4, 5), Jutul.SPU{Int64}(5, 6), Jutul.SPU{Int64}(6, 7), Jutul.SPU{Int64}(7, 8), Jutul.SPU{Int64}(8, 9), Jutul.SPU{Int64}(9, 10), Jutul.SPU{Int64}(10, 11) … Jutul.SPU{Int64}(190, 191), Jutul.SPU{Int64}(191, 192), Jutul.SPU{Int64}(192, 193), Jutul.SPU{Int64}(193, 194), Jutul.SPU{Int64}(194, 195), Jutul.SPU{Int64}(195, 196), Jutul.SPU{Int64}(196, 197), Jutul.SPU{Int64}(197, 198), Jutul.SPU{Int64}(198, 199), Jutul.SPU{Int64}(199, 200)], (cells = [2, 1, 3, 2, 4, 3, 5, 4, 6, 5 … 196, 195, 197, 196, 198, 197, 199, 198, 200, 199], faces = [1, 1, 2, 2, 3, 3, 4, 4, 5, 5 … 195, 195, 196, 196, 197, 197, 198, 198, 199, 199], face_pos = [1, 2, 4, 6, 8, 10, 12, 14, 16, 18 … 382, 384, 386, 388, 390, 392, 394, 396, 398, 399], face_sign = [1, -1, 1, -1, 1, -1, 1, -1, 1, -1 … 1, -1, 1, -1, 1, -1, 1, -1, 1, -1])), Jutul.DefaultFlux()), :mass_transfer => Jutul.ConservationLaw{:AdsorbedLoading, Jutul.PotentialFlow{:generic, Vector{Jutul.TPFA{Int64}}, Vector{Jutul.SPU{Int64}}, @NamedTuple{cells::Vector{Int64}, faces::Vector{Int64}, face_pos::Vector{Int64}, face_sign::Vector{Int64}}}, Jutul.DefaultFlux, 2}(Jutul.PotentialFlow{:generic, Vector{Jutul.TPFA{Int64}}, Vector{Jutul.SPU{Int64}}, @NamedTuple{cells::Vector{Int64}, faces::Vector{Int64}, face_pos::Vector{Int64}, face_sign::Vector{Int64}}}(Jutul.TPFA{Int64}[Jutul.TPFA{Int64}(1, 2, 1), Jutul.TPFA{Int64}(2, 3, 1), Jutul.TPFA{Int64}(3, 4, 1), Jutul.TPFA{Int64}(4, 5, 1), Jutul.TPFA{Int64}(5, 6, 1), Jutul.TPFA{Int64}(6, 7, 1), Jutul.TPFA{Int64}(7, 8, 1), Jutul.TPFA{Int64}(8, 9, 1), Jutul.TPFA{Int64}(9, 10, 1), Jutul.TPFA{Int64}(10, 11, 1) … Jutul.TPFA{Int64}(190, 191, 1), Jutul.TPFA{Int64}(191, 192, 1), Jutul.TPFA{Int64}(192, 193, 1), Jutul.TPFA{Int64}(193, 194, 1), Jutul.TPFA{Int64}(194, 195, 1), Jutul.TPFA{Int64}(195, 196, 1), Jutul.TPFA{Int64}(196, 197, 1), Jutul.TPFA{Int64}(197, 198, 1), Jutul.TPFA{Int64}(198, 199, 1), Jutul.TPFA{Int64}(199, 200, 1)], Jutul.SPU{Int64}[Jutul.SPU{Int64}(1, 2), Jutul.SPU{Int64}(2, 3), Jutul.SPU{Int64}(3, 4), Jutul.SPU{Int64}(4, 5), Jutul.SPU{Int64}(5, 6), Jutul.SPU{Int64}(6, 7), Jutul.SPU{Int64}(7, 8), Jutul.SPU{Int64}(8, 9), Jutul.SPU{Int64}(9, 10), Jutul.SPU{Int64}(10, 11) … Jutul.SPU{Int64}(190, 191), Jutul.SPU{Int64}(191, 192), Jutul.SPU{Int64}(192, 193), Jutul.SPU{Int64}(193, 194), Jutul.SPU{Int64}(194, 195), Jutul.SPU{Int64}(195, 196), Jutul.SPU{Int64}(196, 197), Jutul.SPU{Int64}(197, 198), Jutul.SPU{Int64}(198, 199), Jutul.SPU{Int64}(199, 200)], (cells = [2, 1, 3, 2, 4, 3, 5, 4, 6, 5 … 196, 195, 197, 196, 198, 197, 199, 198, 200, 199], faces = [1, 1, 2, 2, 3, 3, 4, 4, 5, 5 … 195, 195, 196, 196, 197, 197, 198, 198, 199, 199], face_pos = [1, 2, 4, 6, 8, 10, 12, 14, 16, 18 … 382, 384, 386, 388, 390, 392, 394, 396, 398, 399], face_sign = [1, -1, 1, -1, 1, -1, 1, -1, 1, -1 … 1, -1, 1, -1, 1, -1, 1, -1, 1, -1])), Jutul.DefaultFlux()), :energy_column => Jutul.ConservationLaw{:ColumnConservedEnergy, Jutul.PotentialFlow{:generic, Vector{Jutul.TPFA{Int64}}, Vector{Jutul.SPU{Int64}}, @NamedTuple{cells::Vector{Int64}, faces::Vector{Int64}, face_pos::Vector{Int64}, face_sign::Vector{Int64}}}, Jutul.DefaultFlux, 1}(Jutul.PotentialFlow{:generic, Vector{Jutul.TPFA{Int64}}, Vector{Jutul.SPU{Int64}}, @NamedTuple{cells::Vector{Int64}, faces::Vector{Int64}, face_pos::Vector{Int64}, face_sign::Vector{Int64}}}(Jutul.TPFA{Int64}[Jutul.TPFA{Int64}(1, 2, 1), Jutul.TPFA{Int64}(2, 3, 1), Jutul.TPFA{Int64}(3, 4, 1), Jutul.TPFA{Int64}(4, 5, 1), Jutul.TPFA{Int64}(5, 6, 1), Jutul.TPFA{Int64}(6, 7, 1), Jutul.TPFA{Int64}(7, 8, 1), Jutul.TPFA{Int64}(8, 9, 1), Jutul.TPFA{Int64}(9, 10, 1), Jutul.TPFA{Int64}(10, 11, 1) … Jutul.TPFA{Int64}(190, 191, 1), Jutul.TPFA{Int64}(191, 192, 1), Jutul.TPFA{Int64}(192, 193, 1), Jutul.TPFA{Int64}(193, 194, 1), Jutul.TPFA{Int64}(194, 195, 1), Jutul.TPFA{Int64}(195, 196, 1), Jutul.TPFA{Int64}(196, 197, 1), Jutul.TPFA{Int64}(197, 198, 1), Jutul.TPFA{Int64}(198, 199, 1), Jutul.TPFA{Int64}(199, 200, 1)], Jutul.SPU{Int64}[Jutul.SPU{Int64}(1, 2), Jutul.SPU{Int64}(2, 3), Jutul.SPU{Int64}(3, 4), Jutul.SPU{Int64}(4, 5), Jutul.SPU{Int64}(5, 6), Jutul.SPU{Int64}(6, 7), Jutul.SPU{Int64}(7, 8), Jutul.SPU{Int64}(8, 9), Jutul.SPU{Int64}(9, 10), Jutul.SPU{Int64}(10, 11) … Jutul.SPU{Int64}(190, 191), Jutul.SPU{Int64}(191, 192), Jutul.SPU{Int64}(192, 193), Jutul.SPU{Int64}(193, 194), Jutul.SPU{Int64}(194, 195), Jutul.SPU{Int64}(195, 196), Jutul.SPU{Int64}(196, 197), Jutul.SPU{Int64}(197, 198), Jutul.SPU{Int64}(198, 199), Jutul.SPU{Int64}(199, 200)], (cells = [2, 1, 3, 2, 4, 3, 5, 4, 6, 5 … 196, 195, 197, 196, 198, 197, 199, 198, 200, 199], faces = [1, 1, 2, 2, 3, 3, 4, 4, 5, 5 … 195, 195, 196, 196, 197, 197, 198, 198, 199, 199], face_pos = [1, 2, 4, 6, 8, 10, 12, 14, 16, 18 … 382, 384, 386, 388, 390, 392, 394, 396, 398, 399], face_sign = [1, -1, 1, -1, 1, -1, 1, -1, 1, -1 … 1, -1, 1, -1, 1, -1, 1, -1, 1, -1])), Jutul.DefaultFlux())), [:Pressure, :y, :AdsorbedConcentration, :Temperature], OrderedCollections.OrderedDict{Symbol, Any}(), 1), :V_feed => Jutul.SimulationModel{Jutul.DiscretizedDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, Nothing, Dict{Jutul.JutulEntity, Int64}, Jutul.TrivialGlobalMap}, FlowDevice, Jutul.FullyImplicitFormulation, Jutul.DefaultContext, Jutul.DataDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, Dict{Jutul.JutulEntity, Int64}, OrderedCollections.OrderedDict{Symbol, Any}}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulEquation}, Vector{Symbol}, OrderedCollections.OrderedDict{Symbol, Any}}(DiscretizedDomain with CartesianMesh (3D) with 1x1x1=1 cells
, FlowDevice(["CO2", "N2"]), Jutul.DefaultContext(Jutul.EquationMajorLayout(false), 9223372036854775807, 1), Jutul.FullyImplicitFormulation(), Jutul.DataDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, Dict{Jutul.JutulEntity, Int64}, OrderedCollections.OrderedDict{Symbol, Any}}(CartesianMesh (3D) with 1x1x1=1 cells, Dict{Jutul.JutulEntity, Int64}(Jutul.NoEntity() => 1, Unit() => 1, Jutul.Cells() => 1, Jutul.Faces() => 0, Jutul.BoundaryFaces() => 6, Jutul.HalfFaces() => 0), OrderedCollections.OrderedDict{Symbol, Any}(:neighbors => (Matrix{Int64}(undef, 2, 0), Jutul.Faces()), :areas => (Float64[], Jutul.Faces()), :normals => (Matrix{Float64}(undef, 3, 0), Jutul.Faces()), :face_centroids => (Matrix{Float64}(undef, 3, 0), Jutul.Faces()), :cell_centroids => ([0.5; 0.5; 0.5;;], Jutul.Cells()), :volumes => ([1.0], Jutul.Cells()), :half_face_cells => (Int64[], Jutul.HalfFaces()), :half_face_faces => (Int64[], Jutul.HalfFaces()), :boundary_areas => ([1.0, 1.0, 1.0, 1.0, 1.0, 1.0], Jutul.BoundaryFaces()), :boundary_centroids => ([0.0 1.0 … 0.5 0.5; 0.5 0.5 … 0.5 0.5; 0.5 0.5 … 0.0 1.0], Jutul.BoundaryFaces())…)), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(:InletPressure => Mocca.Framework.Pressure(1000.0, Inf, Inf, 100000.0), :InletTemperature => Mocca.Framework.Temperature(200.0, Inf, Inf), :InletComposition => Mocca.Framework.GasMoleFractions(Inf), :OutletPressure => Mocca.Framework.Pressure(1000.0, Inf, Inf, 100000.0), :OutletTemperature => Mocca.Framework.Temperature(200.0, Inf, Inf), :OutletComposition => Mocca.Framework.GasMoleFractions(Inf), :MolarFlow => Mocca.Devices.DeviceMolarFlow()), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(), OrderedCollections.OrderedDict{Symbol, Jutul.JutulEquation}(:inlet_state => Mocca.Devices.PortStateEquation{1}(), :outlet_state => Mocca.Devices.PortStateEquation{2}(), :device_law => Mocca.Devices.DeviceLawEquation()), [:InletPressure, :InletTemperature, :InletComposition, :OutletPressure, :OutletTemperature, :OutletComposition, :MolarFlow], OrderedCollections.OrderedDict{Symbol, Any}(), 1), :V_product => Jutul.SimulationModel{Jutul.DiscretizedDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, Nothing, Dict{Jutul.JutulEntity, Int64}, Jutul.TrivialGlobalMap}, FlowDevice, Jutul.FullyImplicitFormulation, Jutul.DefaultContext, Jutul.DataDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, Dict{Jutul.JutulEntity, Int64}, OrderedCollections.OrderedDict{Symbol, Any}}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}, OrderedCollections.OrderedDict{Symbol, Jutul.JutulEquation}, Vector{Symbol}, OrderedCollections.OrderedDict{Symbol, Any}}(DiscretizedDomain with CartesianMesh (3D) with 1x1x1=1 cells
, FlowDevice(["CO2", "N2"]), Jutul.DefaultContext(Jutul.EquationMajorLayout(false), 9223372036854775807, 1), Jutul.FullyImplicitFormulation(), Jutul.DataDomain{Jutul.CartesianMesh{Tuple{Int64, Int64, Int64}, Tuple{Float64, Float64, Float64}, Vector{Float64}, Jutul.MeshEntityTags{Int64}}, Dict{Jutul.JutulEntity, Int64}, OrderedCollections.OrderedDict{Symbol, Any}}(CartesianMesh (3D) with 1x1x1=1 cells, Dict{Jutul.JutulEntity, Int64}(Jutul.NoEntity() => 1, Unit() => 1, Jutul.Cells() => 1, Jutul.Faces() => 0, Jutul.BoundaryFaces() => 6, Jutul.HalfFaces() => 0), OrderedCollections.OrderedDict{Symbol, Any}(:neighbors => (Matrix{Int64}(undef, 2, 0), Jutul.Faces()), :areas => (Float64[], Jutul.Faces()), :normals => (Matrix{Float64}(undef, 3, 0), Jutul.Faces()), :face_centroids => (Matrix{Float64}(undef, 3, 0), Jutul.Faces()), :cell_centroids => ([0.5; 0.5; 0.5;;], Jutul.Cells()), :volumes => ([1.0], Jutul.Cells()), :half_face_cells => (Int64[], Jutul.HalfFaces()), :half_face_faces => (Int64[], Jutul.HalfFaces()), :boundary_areas => ([1.0, 1.0, 1.0, 1.0, 1.0, 1.0], Jutul.BoundaryFaces()), :boundary_centroids => ([0.0 1.0 … 0.5 0.5; 0.5 0.5 … 0.5 0.5; 0.5 0.5 … 0.0 1.0], Jutul.BoundaryFaces())…)), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(:InletPressure => Mocca.Framework.Pressure(1000.0, Inf, Inf, 100000.0), :InletTemperature => Mocca.Framework.Temperature(200.0, Inf, Inf), :InletComposition => Mocca.Framework.GasMoleFractions(Inf), :OutletPressure => Mocca.Framework.Pressure(1000.0, Inf, Inf, 100000.0), :OutletTemperature => Mocca.Framework.Temperature(200.0, Inf, Inf), :OutletComposition => Mocca.Framework.GasMoleFractions(Inf), :MolarFlow => Mocca.Devices.DeviceMolarFlow()), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(), OrderedCollections.OrderedDict{Symbol, Jutul.JutulVariables}(), OrderedCollections.OrderedDict{Symbol, Jutul.JutulEquation}(:inlet_state => Mocca.Devices.PortStateEquation{1}(), :outlet_state => Mocca.Devices.PortStateEquation{2}(), :device_law => Mocca.Devices.DeviceLawEquation()), [:InletPressure, :InletTemperature, :InletComposition, :OutletPressure, :OutletTemperature, :OutletComposition, :MolarFlow], OrderedCollections.OrderedDict{Symbol, Any}(), 1)), false), Jutul.CrossTermPair[Jutul.CrossTermPair(:V_feed, :Bed, :outlet_state, :outlet_state, Mocca.Networks.PortStateCT(1)), Jutul.CrossTermPair(:Bed, :V_feed, :mass_conservation, :mass_conservation, Mocca.Networks.StreamCT(1, 2)), Jutul.CrossTermPair(:Bed, :V_feed, :energy_column, :energy_column, Mocca.Networks.StreamCT(1, 2)), Jutul.CrossTermPair(:V_product, :Bed, :inlet_state, :inlet_state, Mocca.Networks.PortStateCT(200)), Jutul.CrossTermPair(:Bed, :V_product, :mass_conservation, :mass_conservation, Mocca.Networks.StreamCT(200, 1)), Jutul.CrossTermPair(:Bed, :V_product, :energy_column, :energy_column, Mocca.Networks.StreamCT(200, 1))], nothing, Jutul.DefaultContext(Jutul.EquationMajorLayout(false), 9223372036854775807, 1), nothing, false, Dict(:Bed => 1, :V_feed => 1, :V_product => 1), Jutul.DeviceExecutionMode[Jutul.SolveFullyOnDevice, Jutul.SolveFullyOnDevice, Jutul.SolveFullyOnDevice]), Dict{Symbol, Any}(:Bed => Dict{Symbol, Any}(:BedCrossSectionArea => [0.06559724000511827], :Transmissibilities => [4.46486537059445e-8, 4.4648653705944486e-8, 4.464865370594451e-8, 4.4648653705944486e-8, 4.4648653705944486e-8, 4.4648653705944486e-8, 4.4648653705944446e-8, 4.464865370594451e-8, 4.464865370594451e-8, 4.4648653705944446e-8 … 4.464865370594445e-8, 4.464865370594445e-8, 4.464865370594544e-8, 4.464865370594445e-8, 4.464865370594445e-8, 4.464865370594445e-8, 4.464865370594445e-8, 4.464865370594445e-8, 4.464865370594445e-8, 4.464865370594445e-8], :DispersionTransmissibilities => [4.854195760378753, 4.854195760378751, 4.854195760378754, 4.854195760378752, 4.854195760378752, 4.854195760378752, 4.854195760378748, 4.854195760378755, 4.854195760378755, 4.854195760378748 … 4.854195760378749, 4.854195760378749, 4.854195760378857, 4.854195760378749, 4.854195760378749, 4.854195760378749, 4.854195760378749, 4.854195760378749, 4.854195760378749, 4.854195760378749], :TimeScale => [1.0], :AdsorbentDensity => [1130.0], :OuterHeatTransferCoeff => [2.5], :InnerHeatTransferCoeff => [8.6], :SolidVolume => [0.00020663130601612258, 0.00020663130601612258, 0.00020663130601612258, 0.00020663130601612258, 0.00020663130601612258, 0.00020663130601612258, 0.00020663130601612258, 0.00020663130601612258, 0.00020663130601612258, 0.00020663130601612258 … 0.00020663130601612258, 0.00020663130601612258, 0.00020663130601612258, 0.00020663130601612258, 0.00020663130601612258, 0.00020663130601612258, 0.00020663130601612258, 0.00020663130601612258, 0.00020663130601612258, 0.00020663130601612258], :WallAreaIn => [0.004539601384437251, 0.004539601384437251, 0.004539601384437251, 0.004539601384437251, 0.004539601384437251, 0.004539601384437251, 0.004539601384437251, 0.004539601384437251, 0.004539601384437251, 0.004539601384437251 … 0.004539601384437251, 0.004539601384437251, 0.004539601384437251, 0.004539601384437251, 0.004539601384437251, 0.004539601384437251, 0.004539601384437251, 0.004539601384437251, 0.004539601384437251, 0.004539601384437251], :AdsorbentHeatCapacity => [1070.0]…), :V_feed => Dict{Symbol, Any}(), :V_product => Dict{Symbol, Any}()), Mocca.Interface.CompiledCycle(Stage[Stage("adsorption", 5000.0, Dict{Symbol, Any}(:V_feed => (law = VolumetricFlow{Float64}(0.02427097880189376), inlet = PortCondition{Float64, Float64, Vector{Float64}}(100000.0, 298.15, [0.15, 0.85])), :V_product => (law = LinearValve{Float64}(0.005191703919295869, 1.0), outlet = PortCondition{Float64, Float64, Vector{Float64}}(100000.0, 298.15, [1.0e-10, 0.9999999999000001]))))], Dict(:Bed => [100000.0, 100000.0]), Dict(:Bed => [1.0])), nothing, Mocca.Interface.WarmStart(nothing, nothing)), Any[OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [103129.22133919805, 103119.50690802728, 103109.40507702237, 103098.88826034455, 103087.94380038211, 103076.56901172454, 103064.76911132739, 103052.55566649392, 103039.94523817944, 103026.95815713854 … 100150.00934336842, 100134.22729283776, 100118.44347860341, 100102.65781809189, 100086.87022866622, 100071.0806276254, 100055.28893220388, 100039.49505957114, 100023.69892683107, 100007.90045102111], :y => [0.11375807430819164 0.09029710454194453 … 1.00184724048083e-10 1.0016331214428263e-10; 0.8862419256918084 0.9097028954580555 … 0.9999999998998154 0.9999999998998367], :AdsorbedConcentration => [128.207548126281 102.66391000959422 … 3.073280349277624e-5 3.073276583040274e-5; 39.360721450284665 48.17137385941592 … 369.20625743825343 369.16842229021853], :Temperature => [297.5475467847404, 296.70186819102764, 296.17531287862124, 295.82571462565056, 295.609722776636, 295.4996892775856, 295.4733904044981, 295.51214320082147, 295.60006121652196, 295.72361986675656 … 298.155478623688, 298.1549132388138, 298.1543477727493, 298.1537822225297, 298.153216585187, 298.1526508577509, 298.1520850372483, 298.15151912072923, 298.1509531124665, 298.1503890285308]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [103129.22133919805], :OutletTemperature => [297.5475467847404], :OutletComposition => [0.11375807430819164; 0.8862419256918084;;], :MolarFlow => [1.0097181853042785]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100007.90045102111], :InletTemperature => [298.1503890285308], :InletComposition => [1.0016331214428263e-10; 0.9999999998998367;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [1.6547282963533891])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [102220.07736902461, 102210.82587752474, 102201.61213948781, 102192.35617347942, 102182.9961989469, 102173.48675048996, 102163.79818719736, 102153.9154216973, 102143.83581615143, 102133.5665714781 … 100109.00347420241, 100097.53576644378, 100086.06649121652, 100074.59568018094, 100063.12336501107, 100051.6495773967, 100040.17434904542, 100028.69771168464, 100017.21969706367, 100005.74033695536], :y => [0.11909367089931336 0.09692395687621615 … 1.0005812342161215e-10 1.0005269176466373e-10; 0.8809063291006867 0.9030760431237839 … 0.999999999899942 0.9999999998999474], :AdsorbedConcentration => [141.45032279468614 113.54860072758272 … 3.073281125965402e-5 3.073277209488494e-5; 30.997032145701837 37.98186136402598 … 369.20527256360396 369.1680483386545], :Temperature => [297.86363299264866, 296.90721939586996, 296.2878014095098, 295.8633935622421, 295.590038984591, 295.439311405391, 295.3873395225434, 295.41310818983936, 295.4980567319424, 295.62597956584545 … 298.1553987796233, 298.15484255230507, 298.1542862410498, 298.1537298440275, 298.1531733594061, 298.1526167853517, 298.1520601200287, 298.1515033616286, 298.15094651640226, 298.1503918053223]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [102220.07736902461], :OutletTemperature => [297.86363299264866], :OutletComposition => [0.11909367089931336; 0.8809063291006867;;], :MolarFlow => [1.000816933187533]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100005.74033695536], :InletTemperature => [298.1503918053223], :InletComposition => [1.0005269176466373e-10; 0.9999999998999474;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [1.2022722133586574])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [102127.51314412353, 102118.29851757019, 102109.15862994223, 102100.01068724012, 102090.78937539831, 102081.44567323773, 102071.94684070244, 102062.27538453437, 102052.42698401479, 102042.40777455895 … 100104.71864113281, 100093.70178667565, 100082.68338297479, 100071.66347137542, 100060.64209324076, 100049.61928995415, 100038.5951029212, 100027.56957357186, 100016.54274336259, 100005.51465377802], :y => [0.11955957931120513 0.09754425746450372 … 1.0004589176187135e-10 1.0004198939689619e-10; 0.8804404206887949 0.9024557425354962 … 0.9999999998999544 0.9999999998999581], :AdsorbedConcentration => [142.7779453000718 114.64264660255726 … 3.073281189100575e-5 3.07327725980186e-5; 30.354017273484747 37.14892751623411 … 369.20510738313124 369.1679887229915], :Temperature => [297.89818351022717, 296.93073940851576, 296.30183459208655, 295.869663970732, 295.5902773704794, 295.4352167397806, 295.3804691554457, 295.4047904621021, 295.4893446253891, 295.61764448665247 … 298.15538444083415, 298.15482979424326, 298.1542750634921, 298.1537202468753, 298.15316534268555, 298.1526103492139, 298.15205526474944, 298.1515000876092, 298.1509448242541, 298.15039171616365]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [102127.51314412353], :OutletTemperature => [297.89818351022717], :OutletComposition => [0.11955957931120513; 0.8804404206887949;;], :MolarFlow => [0.9999106548313356]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100005.51465377802], :InletTemperature => [298.15039171616365], :InletComposition => [1.0004198939689619e-10; 0.9999999998999581;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [1.1550018918648932])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [102118.25033868873, 102109.039299365, 102099.9066334801, 102090.76929004284, 102081.56161680823, 102072.23424579807, 102062.75413222559, 102053.10354588571, 102043.27800097657, 102033.28352950727 … 100104.28871518842, 100093.31709814521, 100082.34393367666, 100071.36926407697, 100060.39313165876, 100049.4155787552, 100038.43664772215, 100027.45638094026, 100016.47482081705, 100005.49200978871], :y => [0.11960544418407365 0.09760579928775745 … 1.0004467459626542e-10 1.0004092423636141e-10; 0.8803945558159264 0.9023942007122425 … 0.9999999998999556 0.9999999998999592], :AdsorbedConcentration => [142.910740100206 114.7521063031717 … 3.073281195269417e-5 3.07327726471045e-5; 30.291594782287593 37.067457263428935 … 369.2050901980446 369.1679825391899], :Temperature => [297.9016671487494, 296.93312068591194, 296.3032653727873, 295.870315779563, 295.59032309371037, 295.4348265669733, 295.37979936093177, 295.40397446980097, 295.48848824695585, 295.6168252415262 … 298.1553829433986, 298.15482846153145, 298.1542738954822, 298.1537192435581, 298.1531645040644, 298.1526096753047, 298.15205475558076, 298.1514997432222, 298.15094464471116, 298.15039170357784]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [102118.25033868873], :OutletTemperature => [297.9016671487494], :OutletComposition => [0.11960544418407365; 0.8803945558159264;;], :MolarFlow => [0.9998199645015433]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100005.49200978871], :InletTemperature => [298.15039170357784], :InletComposition => [1.0004092423636141e-10; 0.9999999998999592;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [1.1502590206909058])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [102108.2582572637, 102099.05097136046, 102089.92589358496, 102080.79971738135, 102071.60644176372, 102062.29633726293, 102052.83604089085, 102043.20757589841, 102033.40628618177, 102023.4380987171 … 100103.82334279503, 100092.90069252596, 100081.97649694933, 100071.05079936115, 100060.12364307635, 100049.19507143089, 100038.26512778396, 100027.33385552002, 100016.40129805093, 100005.46749881777], :y => [0.11965400014095355 0.09767148357230743 … 1.0004336796292996e-10 1.000397806416628e-10; 0.8803459998590465 0.9023285164276925 … 0.9999999998999569 0.9999999998999604], :AdsorbedConcentration => [143.0541484269245 114.87034747874903 … 3.073281201761852e-5 3.0732772698676965e-5; 30.226321380893356 36.98156961312128 … 369.2050708673987 369.16797560406405], :Temperature => [297.90546047393406, 296.93572490869514, 296.30484147980104, 295.8710478782415, 295.5903975847026, 295.4344275142591, 295.37909610047535, 295.40311172910344, 295.48758085370173, 295.6159573209529 … 298.1553812526775, 298.15482695639946, 298.15427257591637, 298.15371810954923, 298.15316355561697, 298.1526089124369, 298.15205417832453, 298.1514993516232, 298.15094443883805, 298.1503916857136]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [102108.2582572637], :OutletTemperature => [297.90546047393406], :OutletComposition => [0.11965400014095355; 0.8803459998590465;;], :MolarFlow => [0.9997221339721076]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100005.46749881777], :InletTemperature => [298.1503916857136], :InletComposition => [1.000397806416628e-10; 0.9999999998999604;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [1.1451251064053414])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [102098.27874533189, 102089.0750992586, 102079.95741139025, 102070.84214014221, 102061.66295041476, 102052.3697623524, 102042.92890403463, 102033.32216039876, 102023.5447124203, 102013.60238850293 … 100103.35692588682, 100092.48335180865, 100081.60823472979, 100070.73161892255, 100059.85354867864, 100048.97406831133, 100038.0932221576, 100027.21105458018, 100016.32760996981, 100005.44293274687], :y => [0.11970158055106511 0.09773634972276563 … 1.0004206811630511e-10 1.0003864290245559e-10; 0.8802984194489349 0.9022636502772343 … 0.9999999998999582 0.9999999998999615], :AdsorbedConcentration => [143.19770720483652 114.98874567534787 … 3.0732812080924306e-5 3.07327727488737e-5; 30.163053059804316 36.897636260662885 … 369.205050744897 369.16796840473665], :Temperature => [297.9092880677618, 296.93836374131695, 296.3064496391394, 295.8718084886308, 295.59049690726584, 295.4340500618619, 295.3784119499369, 295.40226639350567, 295.48668983376814, 295.6151052326752 … 298.1553794866225, 298.1548253838234, 298.1542711967969, 298.15371692387794, 298.1531625633992, 298.1526081136919, 298.15205357308537, 298.15149893993686, 298.1509442207746, 298.1503916635593]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [102098.27874533189], :OutletTemperature => [297.9092880677618], :OutletComposition => [0.11970158055106511; 0.8802984194489349;;], :MolarFlow => [0.9996244265081401]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100005.44293274687], :InletTemperature => [298.1503916635593], :InletComposition => [1.0003864290245559e-10; 0.9999999998999615;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [1.1399796539453635])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [102088.3300124192, 102079.12989323956, 102070.01939767256, 102060.91476936529, 102051.74935298118, 102042.47272819896, 102033.05092216162, 102023.46548866012, 102013.71145241632, 102003.79454935993 … 100102.89037991398, 100092.0658950993, 100081.23986978094, 100070.41234917981, 100059.58337853673, 100048.75300311459, 100037.92126820039, 100027.08821910749, 100016.25390117767, 100005.41835978284], :y => [0.11974811205964138 0.09780025629123237 … 1.0004077642902429e-10 1.0003751226137598e-10; 0.8802518879403587 0.9021997437087675 … 0.9999999998999596 0.9999999998999626], :AdsorbedConcentration => [143.3412990786241 115.10720399809519 … 3.073281214256902e-5 3.073277279766168e-5; 30.101778299223966 36.81567729075639 … 369.2050298488624 369.1679609477206], :Temperature => [297.91314585357566, 296.94103429505736, 296.3080879729601, 295.8725965413424, 295.5906206134081, 295.4336942153396, 295.3777472227915, 295.4014389623099, 295.4858157742794, 295.61426957725115 … 298.1553776468543, 298.1548237452469, 298.1542697593906, 298.1537156876342, 298.15316152832423, 298.152607279806, 298.1520529404227, 298.1514985085457, 298.15094399072643, 298.15039163714175]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [102088.3300124192], :OutletTemperature => [297.91314585357566], :OutletComposition => [0.11974811205964138; 0.8802518879403587;;], :MolarFlow => [0.9995270203955735]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100005.41835978284], :InletTemperature => [298.15039163714175], :InletComposition => [1.0003751226137598e-10; 0.9999999998999626;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [1.1348327602463884])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [102078.40041198312, 102069.20371737545, 102060.10023752874, 102051.00602097536, 102041.85410471068, 102032.59373596782, 102023.19064690352, 102013.6261655516, 102003.89516575525, 101994.00329629163 … 100102.42325525949, 100091.64792011298, 100080.87104714429, 100070.09268249712, 100059.3128723356, 100048.53166284635, 100037.74910024065, 100026.96523075651, 100016.1801006609, 100005.3937562514], :y => [0.11979366677724437 0.09786326357864857 … 1.0003949057634152e-10 1.0003638671232603e-10; 0.8802063332227557 0.9021367364213514 … 0.9999999998999609 0.9999999998999637], :AdsorbedConcentration => [143.485220163821 115.22596666997667 … 3.073281220268398e-5 3.073277284514523e-5; 30.042316223835527 36.735483681312914 … 369.20500813645106 369.1679532177247], :Temperature => [297.91704096783604, 296.94374147548774, 296.3097594207534, 295.873413324699, 295.5907686832011, 295.43335900931083, 295.37710035624406, 295.40062757834227, 295.4849567644353, 295.6134485644995 … 298.1553757296006, 298.1548220373103, 298.15426826075003, 298.15371439828283, 298.1531604482694, 298.15260640906894, 298.1520522790389, 298.1514980565648, 298.15094374822127, 298.1503916064062]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [102078.40041198312], :OutletTemperature => [297.91704096783604], :OutletComposition => [0.11979366677724437; 0.8802063332227557;;], :MolarFlow => [0.9994298016053711]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100005.3937562514], :InletTemperature => [298.1503916064062], :InletComposition => [1.0003638671232603e-10; 0.9999999998999637;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [1.1296794666450387])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [102068.48792420387, 102059.29455810438, 102050.19792957665, 102041.11391147911, 102031.97524505664, 102022.73085190075, 102013.34617362832, 102003.80231647001, 101994.09400763841, 101984.22681334567 … 100101.95555646486, 100091.22943095233, 100080.50177047066, 100069.77262206205, 100059.04203278961, 100048.31004973936, 100037.5767200224, 100026.84209077712, 100016.10620917122, 100005.3691224035], :y => [0.11983827375926519 0.09792537671606558 … 1.0003820962410814e-10 1.0003526545742643e-10; 0.8801617262407349 0.9020746232839344 … 0.9999999998999622 0.9999999998999648], :AdsorbedConcentration => [143.62961738301837 115.34515494774828 … 3.073281226132845e-5 3.0732772891371193e-5; 29.984561175546183 36.656942976658186 … 369.204985583473 369.16794520618805], :Temperature => [297.920976708127, 296.9464875890614, 296.3114653897145, 295.8742594635352, 295.5909411022548, 295.433043959186, 295.3764705688417, 295.3998313195097, 295.4841118671628, 295.61264133292593 … 298.1553737327093, 298.15482025809496, 298.15426669919054, 298.15371305437316, 298.15315932201776, 298.1526055004978, 298.152051588185, 298.15149758347906, 298.15094349297834, 298.15039157130826]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [102068.48792420387], :OutletTemperature => [297.920976708127], :OutletComposition => [0.11983827375926519; 0.8801617262407349;;], :MolarFlow => [0.9993327503618695]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100005.3691224035], :InletTemperature => [298.15039157130826], :InletComposition => [1.0003526545742643e-10; 0.9999999998999648;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [1.1245198257090254])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [102058.59107356367, 102049.40094526399, 102040.31101398448, 102031.23699624384, 102022.11134907135, 102012.88267432137, 102003.51612626563, 101993.992591991, 101984.30665524025, 101974.46380348597 … 100101.48730723832, 100090.81044887305, 100080.13205854918, 100069.4521841847, 100058.77087371888, 100048.08817511438, 100037.40413635936, 100026.71880546966, 100016.03223049095, 100005.34445950041], :y => [0.11988196136703645 0.09798660342098524 … 1.000369328148252e-10 1.0003414784700136e-10; 0.8801180386329636 0.9020133965790147 … 0.9999999998999636 0.9999999998999659], :AdsorbedConcentration => [143.77462216135226 115.4648773739354 … 3.073281231854958e-5 3.073277293637651e-5; 29.928422094454152 36.57995948178298 … 369.2049621660327 369.1679369047022], :Temperature => [297.92495607269586, 296.9492747755933, 296.31320722964136, 295.87513560856405, 295.5911379393405, 295.43274869815286, 295.37585721404554, 295.39904940338573, 295.48328028151866, 295.61184714832893 … 298.1553716540394, 298.15481840569186, 298.15426507303465, 298.15371165445936, 298.1531581483553, 298.15260455311034, 298.1520508671105, 298.15149708877004, 298.15094322471106, 298.1503915317955]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [102058.59107356367], :OutletTemperature => [297.92495607269586], :OutletComposition => [0.11988196136703645; 0.8801180386329636;;], :MolarFlow => [0.9992358522185607]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100005.34445950041], :InletTemperature => [298.1503915317955], :InletComposition => [1.0003414784700136e-10; 0.9999999998999659;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [1.1193541016274848])) … OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [101939.74758744516, 101930.39768226266, 101921.04692265796, 101911.69530842404, 101902.34283935295, 101892.98951523585, 101883.63533586301, 101874.28030102384, 101864.92441050685, 101855.56766409971 … 100103.09002513577, 100092.3000630806, 100081.49473124025, 100070.67439561372, 100059.8394197863, 100048.99016437754, 100038.12698654587, 100027.25023956085, 100016.36027292472, 100005.45744701206], :y => [0.1500001127138555 0.15000020686382318 … 0.1311391747939722 0.13100139655260584; 0.8499998872861443 0.8499997931361776 … 0.8688608252060259 0.8689986034473934], :AdsorbedConcentration => [3892.1621211968627 3892.102077152678 … 1957.7272413365672 1942.1409601462474; 22.492593954333486 22.492365521796806 … 51.848574520740144 51.944327655403406], :Temperature => [298.1498540479188, 298.1497169272823, 298.14957877600506, 298.1494396237387, 298.1492994997561, 298.149158432942, 298.149016451772, 298.148873584297, 298.1487298581291, 298.1485853004271 … 344.65798044884514, 345.1918304870103, 345.71195687196183, 346.2184335144532, 346.7113564519094, 347.19084169590076, 347.65702276643833, 348.11003314055614, 348.549545739123, 348.9618868775823]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [101939.74758744516], :OutletTemperature => [298.1498540479188], :OutletComposition => [0.1500001127138555; 0.8499998872861443;;], :MolarFlow => [0.9980722787174661]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100005.45744701206], :InletTemperature => [348.9618868775823], :InletComposition => [0.13100139655260584; 0.8689986034473934;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [0.9765873870721063])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [101930.93437514058, 101921.58446973427, 101912.23370963347, 101902.88209463679, 101893.5296245419, 101884.17629914555, 101874.82211824352, 101865.46708163073, 101856.11118910115, 101846.75444044785 … 100102.08599180916, 100091.41152718297, 100080.719425522, 100070.01003008487, 100059.28368748391, 100048.54074673702, 100037.7815583836, 100027.00647368259, 100016.21584448678, 100005.41004078236], :y => [0.15000010539071357 0.15000019352889923 … 0.13250472539050395 0.13233838129188935; 0.8499998946092862 0.8499998064711015 … 0.8674952746094942 0.8676616187081099], :AdsorbedConcentration => [3892.099015743687 3892.0386276103195 … 2096.1403580791234 2077.1489843937443; 22.492471223783276 22.492248474808022 … 50.78395809502774 50.938645770696496], :Temperature => [298.14986340870075, 298.1497348001879, 298.1496049511272, 298.1494738922256, 298.1493416539853, 298.14920826668805, 298.1490737603683, 298.1489381647913, 298.1488015094323, 298.14866382345605 … 340.3564313960869, 340.97417176268743, 341.5792007709942, 342.1713678721975, 342.7505591826057, 343.3166951775817, 343.8697278156773, 344.4096189959262, 344.9357803327753, 345.43147093594797]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [101930.93437514058], :OutletTemperature => [298.14986340870075], :OutletComposition => [0.15000010539071357; 0.8499998946092862;;], :MolarFlow => [0.997985990266731]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100005.41004078236], :InletTemperature => [345.43147093594797], :InletComposition => [0.13233838129188935; 0.8676616187081099;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [0.9779980996025835])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [101922.46450773532, 101913.11460205435, 101903.76384136322, 101894.41222546624, 101885.05975416682, 101875.70642726748, 101866.35224456976, 101856.99720587434, 101847.64131098097, 101838.28455968849 … 100100.88759642471, 100090.34795100972, 100079.78879279301, 100069.21038885655, 100058.61301766151, 100047.99696784718, 100037.36253705746, 100026.71003082576, 100016.03976223318, 100005.35207239227], :y => [0.15000009642860182 0.15000017719291645 … 0.134173261400824 0.1339794633602681; 0.8499999035713979 0.8499998228070843 … 0.865826738599174 0.8660205366397312], :AdsorbedConcentration => [3892.038056608945 3891.9772440224597 … 2266.3621360310985 2244.1105673680036; 22.492354945497333 22.492139196392532 … 49.11136129189845 49.34436695681122], :Temperature => [298.1498748858068, 298.1497567600737, 298.1496371801105, 298.14951617593294, 298.14939377759197, 298.1492700151487, 298.14914491864187, 298.1490185180576, 298.1488908433015, 298.14876192417154 … 335.34988198326045, 336.03545041411974, 336.7113506580478, 337.37713092422683, 338.03238403971164, 338.67674667957294, 339.3098976013956, 339.9315333110893, 340.5407080232856, 341.11752209683306]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [101922.46450773532], :OutletTemperature => [298.1498748858068], :OutletComposition => [0.15000009642860182; 0.8499999035713979;;], :MolarFlow => [0.9979030634392503]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100005.35207239227], :InletTemperature => [341.11752209683306], :InletComposition => [0.1339794633602681; 0.8660205366397312;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [0.9797540625177289])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [101914.43935792962, 101905.08945191694, 101895.73869052962, 101886.38707357724, 101877.03460086857, 101867.68127221162, 101858.32708741346, 101848.97204628041, 101839.61614861789, 101830.25939423045 … 100099.49437482464, 100089.1070182314, 100078.69914332256, 100068.2708784833, 100057.82237097788, 100047.35378602296, 100036.8653058049, 100026.3571284812, 100015.82946799214, 100005.28257743179], :y => [0.15000008563757505 0.1500001575004781 … 0.13615865733894994 0.13594356398517568; 0.8499999143624246 0.8499998424995227 … 0.8638413426610481 0.8640564360148236], :AdsorbedConcentration => [3891.9799263160094 3891.918597496298 … 2469.0860477463852 2444.38841675018; 22.492246779979236 22.492039517555252 … 46.629084461648226 46.9511016995529], :Temperature => [298.14988873414666, 298.1497833201654, 298.1496762538352, 298.14956756168914, 298.14945727063264, 298.14934540791097, 298.1492320010646, 298.14911707789025, 298.14900066640365, 298.14888279480255 … 329.7212339349508, 330.4407401946782, 331.1558930416936, 331.86597536150555, 332.5703020875662, 333.26822258104573, 333.95912172638396, 334.6423948866226, 335.31670181194096, 335.9593396951596]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [101914.43935792962], :OutletTemperature => [298.14988873414666], :OutletComposition => [0.15000008563757505; 0.8499999143624246;;], :MolarFlow => [0.9978244907554523]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100005.28257743179], :InletTemperature => [335.9593396951596], :InletComposition => [0.13594356398517568; 0.8640564360148236;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [0.9818790030351158])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [101906.98987318482, 101897.63996678081, 101888.2892045865, 101878.93758641534, 101869.58511208015, 101860.23178139316, 101850.87759416593, 101841.52255020934, 101832.16664933362, 101822.80989134827 … 100097.93553022003, 100087.71254742189, 100077.46941442619, 100067.20608190459, 100056.92252136636, 100046.6187250952, 100036.29470597737, 100025.95049725605, 100015.5861531043, 100005.2017743829], :y => [0.15000007295341863 0.15000013431989406 … 0.1384298254557417 0.13820686391129092; 0.849999927046581 0.8499998656801068 … 0.8615701745442562 0.8617931360887086], :AdsorbedConcentration => [3891.9255354316247 3891.863591567588 … 2699.617662472326 2674.1599663305706; 22.492148715771005 22.491951511472458 … 43.22305690790272 43.62012983088437], :Temperature => [298.14990505416574, 298.14981471316764, 298.14972257391497, 298.1496286552217, 298.14953297671957, 298.14943555881695, 298.1493364226444, 298.14923559000687, 298.14913308333587, 298.14902892564476 … 323.68360673382415, 324.38541938923714, 325.08945387665193, 325.79494760209894, 326.5011370211493, 327.2072616845423, 327.912567206419, 328.61628002343315, 329.3168101321673, 329.9898421151413]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [101906.98987318482], :OutletTemperature => [298.14990505416574], :OutletComposition => [0.15000007295341863; 0.849999927046581;;], :MolarFlow => [0.9977515542965099]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100005.2017743829], :InletTemperature => [329.9898421151413], :InletComposition => [0.13820686391129092; 0.8617931360887086;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [0.984349691584672])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [101900.27233097979, 101890.92242413135, 101881.57166103148, 101872.22004149445, 101862.86756533424, 101853.51423236457, 101844.16004239883, 101834.80499525007, 101825.44909073095, 101816.09232865373 … 100096.28165703197, 100086.22609751082, 100076.15236565722, 100066.06025622667, 100055.94957892095, 100045.82015908718, 100035.6718383561, 100025.50447524645, 100015.31794661962, 100005.11217400941], :y => [0.150000058616372 0.15000010806917127 … 0.14088597113382828 0.1406751292183874; 0.8499999413836278 0.8499998919308296 … 0.8591140288661697 0.859324870781612], :AdsorbedConcentration => [3891.8760213678434 3891.8133695157126 … 2946.3760956415013 2922.4536457851364; 22.492062850269285 22.49187713266408 … 39.01646034414097 39.43917126519268], :Temperature => [298.14992356127965, 298.14985044871327, 298.1497755021592, 298.149698727617, 298.14962013234066, 298.14953972480043, 298.14945751463284, 298.1493735125943, 298.14928773051486, 298.1492001812524 … 317.5762320985645, 318.20188058061825, 318.835292559296, 319.47594320414214, 320.12328051083995, 320.77672728053636, 321.43568230438217, 322.0994935551848, 322.7666706282966, 323.41348156161837]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [101900.27233097979], :OutletTemperature => [298.14992356127965], :OutletComposition => [0.150000058616372; 0.8499999413836278;;], :MolarFlow => [0.99768578414488]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100005.11217400941], :InletTemperature => [323.41348156161837], :InletComposition => [0.1406751292183874; 0.859324870781612;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [0.9870646273945075])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [101894.45456134692, 101885.10465402319, 101875.75388996133, 101866.40226897165, 101857.04979086462, 101847.69645545086, 101838.34226254107, 101828.98721194606, 101819.63130347665, 101810.27453694366 … 100094.64122648798, 100084.7451430903, 100074.83421494834, 100064.9081606742, 100054.96670455852, 100045.00957730653, 100035.03651678421, 100025.04726880179, 100015.04158872656, 100005.01926511478], :y => [0.15000004337006245 0.1500000800863228 … 0.14335948322398476 0.14318130451978556; 0.8499999566299374 0.8499999199136781 … 0.8566405167760133 0.8568186954802139], :AdsorbedConcentration => [3891.8326835307926 3891.769261101324 … 3193.194132170821 3172.918191275267; 22.491991007464513 22.491817659334096 … 34.44449485286943 34.823052349356175], :Temperature => [298.14994331954637, 298.1498887812975, 298.14983254795226, 298.14977460964946, 298.1497149579012, 298.14965358558743, 298.1495904869335, 298.14952565749144, 298.14945909411813, 298.1493907949524 … 311.7954242770982, 312.29775263571395, 312.81036593057104, 313.3330775181274, 313.8656745191001, 314.4079172911144, 314.9595380513883, 315.520214345517, 316.0888721794917, 316.64498565980506]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [101894.45456134692], :OutletTemperature => [298.14994331954637], :OutletComposition => [0.15000004337006245; 0.8499999566299374;;], :MolarFlow => [0.997628823491828]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100005.01926511478], :InletTemperature => [316.64498565980506], :InletComposition => [0.14318130451978556; 0.8568186954802139;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [0.989840449941446])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [101889.7008066581, 101880.3508988685, 101871.00013386623, 101861.64851145212, 101852.29603142764, 101842.94269359467, 101833.58849775558, 101824.23344371318, 101814.87753127067, 101805.52076023168 … 100093.14011183607, 100083.38485972706, 100073.61879164109, 100063.84163892962, 100054.05313214418, 100044.25300140475, 100034.4409767914, 100024.61678878458, 100014.78016937144, 100004.93087004847], :y => [0.15000002851756006 0.15000005274965525 … 0.14565684971530174 0.14552462649031545; 0.8499999714824398 0.8499999472503457 … 0.8543431502846963 0.854475373509684], :AdsorbedConcentration => [3891.796886099907 3891.7326929780666 … 3423.8201948388846 3408.475897344321; 22.491934454762973 22.491773324914266 … 30.114672730045232 30.395994168542646], :Temperature => [298.1499626483812, 298.1499264821444, 298.1498889593364, 298.14985005771285, 298.1498097559454, 298.1497680336583, 298.14972487144837, 298.1496802509062, 298.14963415463575, 298.1495865662701 … 306.71388592242, 307.0698147206835, 307.43539828955187, 307.8106728020184, 308.195661942704, 308.5903760711452, 308.99481057063804, 309.40892457625154, 309.83210693328004, 310.24897064888506]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [101889.7008066581], :OutletTemperature => [298.1499626483812], :OutletComposition => [0.15000002851756006; 0.8499999714824398;;], :MolarFlow => [0.9975822804025324]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100004.93087004847], :InletTemperature => [310.24897064888506], :InletComposition => [0.14552462649031545; 0.854475373509684;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [0.9924542610652961])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [101886.4400634286, 101877.09015527029, 101867.73938952382, 101858.38776597852, 101849.0352844243, 101839.68194465163, 101830.32774645156, 101820.9726896157, 101811.61677393617, 101802.25999920571 … 100092.00788178791, 100082.35583536982, 100072.69658137928, 100063.02991152428, 100053.35561447321, 100043.67347597444, 100033.98327898742, 100024.28480384343, 100014.57782885797, 100004.86214236883], :y => [0.15000001682327135 0.15000003116847208 … 0.14742318276279273 0.14733502750814048; 0.8499999831767285 0.8499999688315287 … 0.8525768172372054 0.852664972491859], :AdsorbedConcentration => [3891.772089077174 3891.7072744054053 … 3604.751547774973 3594.221710403231; 22.49189702423186 22.49174563542646 … 26.864468900606933 27.045633501560253], :Temperature => [298.1499779221744, 298.1499564205636, 298.14993398267325, 298.14991058370003, 298.14988619905887, 298.1498608044318, 298.1498343758033, 298.1498068894997, 298.1497783222251, 298.14974865109906 … 302.9991935248369, 303.2253017165151, 303.45884494053865, 303.6999324090983, 303.9486693273161, 304.2051565059299, 304.46948938841484, 304.74174367917436, 305.0216146362275, 305.29887204021105]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [101886.4400634286], :OutletTemperature => [298.1499779221744], :OutletComposition => [0.15000001682327135; 0.8499999831767285;;], :MolarFlow => [0.9975503550985915]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100004.86214236883], :InletTemperature => [305.29887204021105], :InletComposition => [0.14733502750814048; 0.852664972491859;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [0.9944878144959577])), OrderedCollections.OrderedDict{Symbol, Any}(:Bed => OrderedCollections.OrderedDict{Symbol, Any}(:Pressure => [101884.44866125289, 101875.09875284135, 101865.7479865836, 101856.39636225862, 101847.04387964576, 101837.69053852487, 101828.3363386762, 101818.98127988048, 101809.62536191888, 101800.26858457304 … 100091.25348872319, 100081.66842201109, 100072.07889219285, 100062.48476010178, 100052.8858834341, 100043.28211676891, 100033.67331159324, 100024.05931634264, 100014.4399767131, 100004.81514282645], :y => [0.1500000088252518 0.15000001637509827 … 0.1486339559794114 0.14858132418815592; 0.8499999911747481 0.8499999836249026 … 0.8513660440205867 0.8514186758118435], :AdsorbedConcentration => [3891.7568074165333 3891.691559207524 … 3731.653291265414 3725.19018735703; 22.491874939684955 22.4917302811724 … 24.731393751897528 24.834934240788584], :Temperature => [298.14998839776035, 298.14997703778187, 298.14996511960055, 298.1499526235876, 298.1499395298846, 298.14992581843774, 298.1499114690176, 298.14989646124565, 298.14988077461976, 298.14986438854163 … 300.5896268879329, 300.7173283906478, 300.8499903960585, 300.9877239333692, 301.13063932211975, 301.27884600801156, 301.43245204049504, 301.5915554434147, 301.756027929971, 301.91982111726475]), :V_feed => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100000.0], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :OutletPressure => [101884.44866125289], :OutletTemperature => [298.14998839776035], :OutletComposition => [0.1500000088252518; 0.8499999911747481;;], :MolarFlow => [0.9975308576664866]), :V_product => OrderedCollections.OrderedDict{Symbol, Any}(:InletPressure => [100004.81514282645], :InletTemperature => [301.91982111726475], :InletComposition => [0.14858132418815592; 0.8514186758118435;;], :OutletPressure => [100000.0], :OutletTemperature => [298.15], :OutletComposition => [1.0e-10; 0.9999999999;;], :MolarFlow => [0.9958968037924298]))], [1.0, 0.10000000000000009, 0.010000000000000009, 0.0009999999999998899, 0.0010796475153640461, 0.0010805123386004034, 0.001080503119860854, 0.0010827306445275742, 0.0010860710900009174, 0.001090407062698473 … 121.61060201754981, 126.78621445194858, 133.9098614789823, 143.85495536737153, 158.0948903588005, 179.2444660006404, 212.20382415658014, 266.7938999000926, 313.5169574376632, 368.57412754866164], 1, Dict{Symbol, Any}(:Bed => Dict{Symbol, Any}(:AdsorbedConcentration => [3.0732575882738364e-5 3.0732575882738364e-5 … 3.0732575882738364e-5 3.0732575882738364e-5; 369.1501960954561 369.1501960954561 … 369.1501960954561 369.1501960954561], :ComponentMasses => [0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15], :AdsorbedLoading => [0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0], :C_pg => [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0 … 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0], :MolarConcentration => [0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0], :ConservedPressure => [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0 … 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0], :ΔH => [0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0], :TotalMolarConcentration => [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0 … 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0], :ColumnConservedEnergy => [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0 … 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0]…), :V_feed => Dict{Symbol, Any}(:OutletPressure => [100000.0], :MolarFlow => [0.0], :OutletComposition => [1.0e-10; 0.9999999999000001;;], :InletTemperature => [298.15], :InletComposition => [0.15; 0.85;;], :InletPressure => [100000.0], :OutletTemperature => [298.15]), :V_product => Dict{Symbol, Any}(:OutletPressure => [100000.0], :MolarFlow => [0.0], :OutletComposition => [1.0e-10; 0.9999999999000001;;], :InletTemperature => [298.15], :InletComposition => [1.0e-10; 0.9999999999000001;;], :InletPressure => [100000.0], :OutletTemperature => [298.15])), nothing, Float64[], 0, nothing)Visualisation

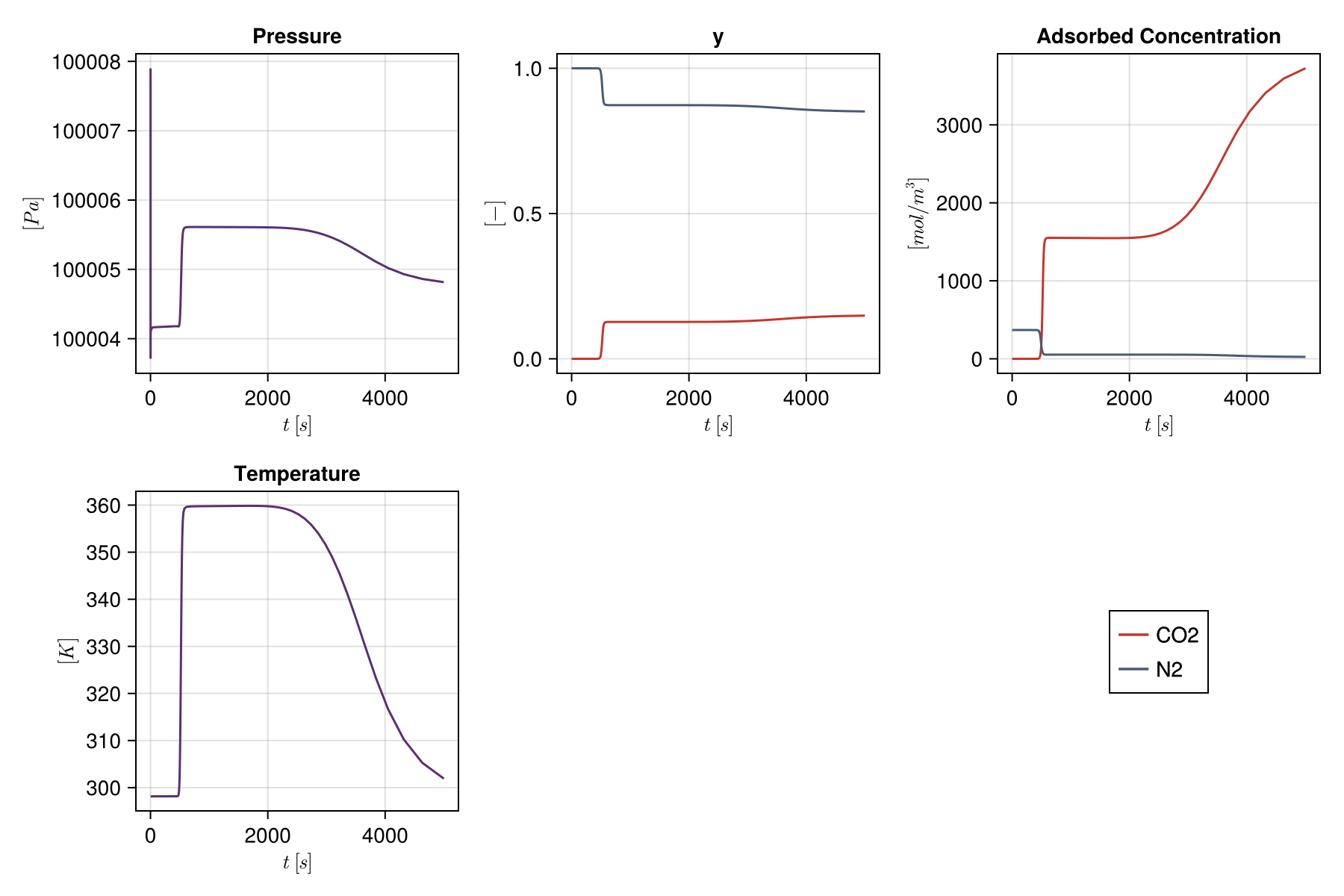

The primary variables at the outlet through time. CO₂ reaches the outlet in two steps. The heat released by adsorption travels with the first front, so the bed behind it is about 60 K hotter and holds less CO₂; the rest of the CO₂ breaks through as the feed cools the bed again:
julia
bed = fs[:Bed]
bed_states = [s[:Bed] for s in result.states]
f_outlet = Mocca.plot_cell(bed_states, bed, result.timesteps, ncells)
and along the column at the end of the simulation:
julia

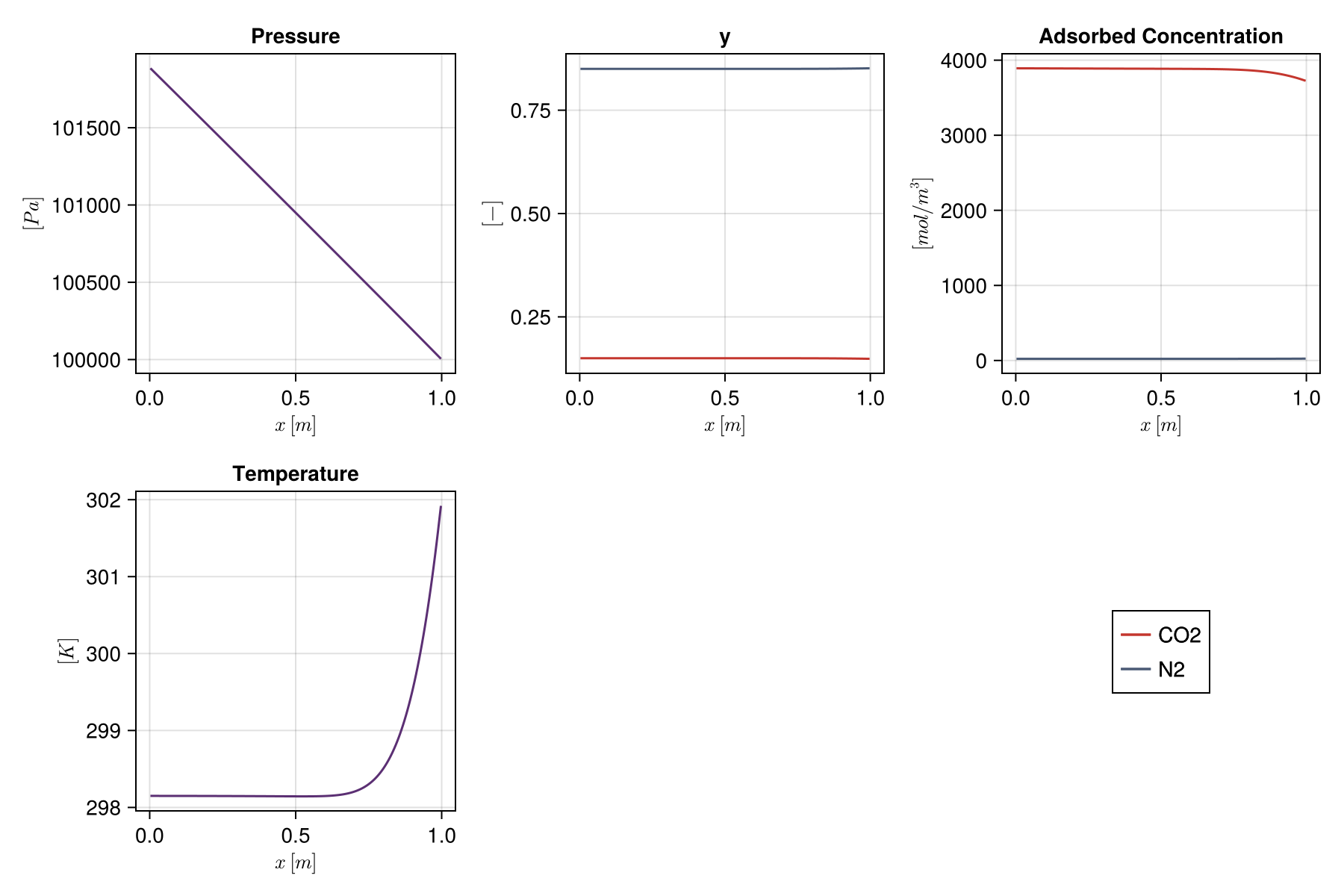

f_column = Mocca.plot_state(bed_states[end], bed)
Heat effects
Each bed has a thermal model: Mocca.Adiabatic(), Mocca.WithWall() (the default), which adds an energy balance for the column wall and its heat exchange with the gas and the surroundings, or Mocca.Isothermal(T), with no energy balance. The same breakthrough with each:
julia
function breakthrough(thermal)
fs = Mocca.Flowsheet(gas, feed)
Mocca.add_bed!(fs, :Bed, adsorbent, column; ncells = ncells, thermal = thermal)
Mocca.add_device!(fs, :V_feed, :feed; at = (:Bed, :bottom))
Mocca.add_device!(fs, :V_product, :product; at = (:Bed, :top))
p = Mocca.Process(fs, cycle; timestepping = process.timestepping)
r = Mocca.simulate(p; timestep_selector_cfg = selector)
return [s[:Bed] for s in r.states], r.timesteps
end
runs = [
"Adiabatic" => (bed_states, result.timesteps),
"With wall" => breakthrough(Mocca.WithWall()),
"Isothermal" => breakthrough(Mocca.Isothermal(298.15)),
]3-element Vector{Pair{String, Tuple{Vector{OrderedCollections.OrderedDict{Symbol, Any}}, Vector{Float64}}}}:
"Adiabatic" => ([OrderedCollections.OrderedDict(:Pressure => [103129.22133919805, 103119.50690802728, 103109.40507702237, 103098.88826034455, 103087.94380038211, 103076.56901172454, 103064.76911132739, 103052.55566649392, 103039.94523817944, 103026.95815713854 … 100150.00934336842, 100134.22729283776, 100118.44347860341, 100102.65781809189, 100086.87022866622, 100071.0806276254, 100055.28893220388, 100039.49505957114, 100023.69892683107, 100007.90045102111], :y => [0.11375807430819164 0.09029710454194453 … 1.00184724048083e-10 1.0016331214428263e-10; 0.8862419256918084 0.9097028954580555 … 0.9999999998998154 0.9999999998998367], :AdsorbedConcentration => [128.207548126281 102.66391000959422 … 3.073280349277624e-5 3.073276583040274e-5; 39.360721450284665 48.17137385941592 … 369.20625743825343 369.16842229021853], :Temperature => [297.5475467847404, 296.70186819102764, 296.17531287862124, 295.82571462565056, 295.609722776636, 295.4996892775856, 295.4733904044981, 295.51214320082147, 295.60006121652196, 295.72361986675656 … 298.155478623688, 298.1549132388138, 298.1543477727493, 298.1537822225297, 298.153216585187, 298.1526508577509, 298.1520850372483, 298.15151912072923, 298.1509531124665, 298.1503890285308]), OrderedCollections.OrderedDict(:Pressure => [102220.07736902461, 102210.82587752474, 102201.61213948781, 102192.35617347942, 102182.9961989469, 102173.48675048996, 102163.79818719736, 102153.9154216973, 102143.83581615143, 102133.5665714781 … 100109.00347420241, 100097.53576644378, 100086.06649121652, 100074.59568018094, 100063.12336501107, 100051.6495773967, 100040.17434904542, 100028.69771168464, 100017.21969706367, 100005.74033695536], :y => [0.11909367089931336 0.09692395687621615 … 1.0005812342161215e-10 1.0005269176466373e-10; 0.8809063291006867 0.9030760431237839 … 0.999999999899942 0.9999999998999474], :AdsorbedConcentration => [141.45032279468614 113.54860072758272 … 3.073281125965402e-5 3.073277209488494e-5; 30.997032145701837 37.98186136402598 … 369.20527256360396 369.1680483386545], :Temperature => [297.86363299264866, 296.90721939586996, 296.2878014095098, 295.8633935622421, 295.590038984591, 295.439311405391, 295.3873395225434, 295.41310818983936, 295.4980567319424, 295.62597956584545 … 298.1553987796233, 298.15484255230507, 298.1542862410498, 298.1537298440275, 298.1531733594061, 298.1526167853517, 298.1520601200287, 298.1515033616286, 298.15094651640226, 298.1503918053223]), OrderedCollections.OrderedDict(:Pressure => [102127.51314412353, 102118.29851757019, 102109.15862994223, 102100.01068724012, 102090.78937539831, 102081.44567323773, 102071.94684070244, 102062.27538453437, 102052.42698401479, 102042.40777455895 … 100104.71864113281, 100093.70178667565, 100082.68338297479, 100071.66347137542, 100060.64209324076, 100049.61928995415, 100038.5951029212, 100027.56957357186, 100016.54274336259, 100005.51465377802], :y => [0.11955957931120513 0.09754425746450372 … 1.0004589176187135e-10 1.0004198939689619e-10; 0.8804404206887949 0.9024557425354962 … 0.9999999998999544 0.9999999998999581], :AdsorbedConcentration => [142.7779453000718 114.64264660255726 … 3.073281189100575e-5 3.07327725980186e-5; 30.354017273484747 37.14892751623411 … 369.20510738313124 369.1679887229915], :Temperature => [297.89818351022717, 296.93073940851576, 296.30183459208655, 295.869663970732, 295.5902773704794, 295.4352167397806, 295.3804691554457, 295.4047904621021, 295.4893446253891, 295.61764448665247 … 298.15538444083415, 298.15482979424326, 298.1542750634921, 298.1537202468753, 298.15316534268555, 298.1526103492139, 298.15205526474944, 298.1515000876092, 298.1509448242541, 298.15039171616365]), OrderedCollections.OrderedDict(:Pressure => [102118.25033868873, 102109.039299365, 102099.9066334801, 102090.76929004284, 102081.56161680823, 102072.23424579807, 102062.75413222559, 102053.10354588571, 102043.27800097657, 102033.28352950727 … 100104.28871518842, 100093.31709814521, 100082.34393367666, 100071.36926407697, 100060.39313165876, 100049.4155787552, 100038.43664772215, 100027.45638094026, 100016.47482081705, 100005.49200978871], :y => [0.11960544418407365 0.09760579928775745 … 1.0004467459626542e-10 1.0004092423636141e-10; 0.8803945558159264 0.9023942007122425 … 0.9999999998999556 0.9999999998999592], :AdsorbedConcentration => [142.910740100206 114.7521063031717 … 3.073281195269417e-5 3.07327726471045e-5; 30.291594782287593 37.067457263428935 … 369.2050901980446 369.1679825391899], :Temperature => [297.9016671487494, 296.93312068591194, 296.3032653727873, 295.870315779563, 295.59032309371037, 295.4348265669733, 295.37979936093177, 295.40397446980097, 295.48848824695585, 295.6168252415262 … 298.1553829433986, 298.15482846153145, 298.1542738954822, 298.1537192435581, 298.1531645040644, 298.1526096753047, 298.15205475558076, 298.1514997432222, 298.15094464471116, 298.15039170357784]), OrderedCollections.OrderedDict(:Pressure => [102108.2582572637, 102099.05097136046, 102089.92589358496, 102080.79971738135, 102071.60644176372, 102062.29633726293, 102052.83604089085, 102043.20757589841, 102033.40628618177, 102023.4380987171 … 100103.82334279503, 100092.90069252596, 100081.97649694933, 100071.05079936115, 100060.12364307635, 100049.19507143089, 100038.26512778396, 100027.33385552002, 100016.40129805093, 100005.46749881777], :y => [0.11965400014095355 0.09767148357230743 … 1.0004336796292996e-10 1.000397806416628e-10; 0.8803459998590465 0.9023285164276925 … 0.9999999998999569 0.9999999998999604], :AdsorbedConcentration => [143.0541484269245 114.87034747874903 … 3.073281201761852e-5 3.0732772698676965e-5; 30.226321380893356 36.98156961312128 … 369.2050708673987 369.16797560406405], :Temperature => [297.90546047393406, 296.93572490869514, 296.30484147980104, 295.8710478782415, 295.5903975847026, 295.4344275142591, 295.37909610047535, 295.40311172910344, 295.48758085370173, 295.6159573209529 … 298.1553812526775, 298.15482695639946, 298.15427257591637, 298.15371810954923, 298.15316355561697, 298.1526089124369, 298.15205417832453, 298.1514993516232, 298.15094443883805, 298.1503916857136]), OrderedCollections.OrderedDict(:Pressure => [102098.27874533189, 102089.0750992586, 102079.95741139025, 102070.84214014221, 102061.66295041476, 102052.3697623524, 102042.92890403463, 102033.32216039876, 102023.5447124203, 102013.60238850293 … 100103.35692588682, 100092.48335180865, 100081.60823472979, 100070.73161892255, 100059.85354867864, 100048.97406831133, 100038.0932221576, 100027.21105458018, 100016.32760996981, 100005.44293274687], :y => [0.11970158055106511 0.09773634972276563 … 1.0004206811630511e-10 1.0003864290245559e-10; 0.8802984194489349 0.9022636502772343 … 0.9999999998999582 0.9999999998999615], :AdsorbedConcentration => [143.19770720483652 114.98874567534787 … 3.0732812080924306e-5 3.07327727488737e-5; 30.163053059804316 36.897636260662885 … 369.205050744897 369.16796840473665], :Temperature => [297.9092880677618, 296.93836374131695, 296.3064496391394, 295.8718084886308, 295.59049690726584, 295.4340500618619, 295.3784119499369, 295.40226639350567, 295.48668983376814, 295.6151052326752 … 298.1553794866225, 298.1548253838234, 298.1542711967969, 298.15371692387794, 298.1531625633992, 298.1526081136919, 298.15205357308537, 298.15149893993686, 298.1509442207746, 298.1503916635593]), OrderedCollections.OrderedDict(:Pressure => [102088.3300124192, 102079.12989323956, 102070.01939767256, 102060.91476936529, 102051.74935298118, 102042.47272819896, 102033.05092216162, 102023.46548866012, 102013.71145241632, 102003.79454935993 … 100102.89037991398, 100092.0658950993, 100081.23986978094, 100070.41234917981, 100059.58337853673, 100048.75300311459, 100037.92126820039, 100027.08821910749, 100016.25390117767, 100005.41835978284], :y => [0.11974811205964138 0.09780025629123237 … 1.0004077642902429e-10 1.0003751226137598e-10; 0.8802518879403587 0.9021997437087675 … 0.9999999998999596 0.9999999998999626], :AdsorbedConcentration => [143.3412990786241 115.10720399809519 … 3.073281214256902e-5 3.073277279766168e-5; 30.101778299223966 36.81567729075639 … 369.2050298488624 369.1679609477206], :Temperature => [297.91314585357566, 296.94103429505736, 296.3080879729601, 295.8725965413424, 295.5906206134081, 295.4336942153396, 295.3777472227915, 295.4014389623099, 295.4858157742794, 295.61426957725115 … 298.1553776468543, 298.1548237452469, 298.1542697593906, 298.1537156876342, 298.15316152832423, 298.152607279806, 298.1520529404227, 298.1514985085457, 298.15094399072643, 298.15039163714175]), OrderedCollections.OrderedDict(:Pressure => [102078.40041198312, 102069.20371737545, 102060.10023752874, 102051.00602097536, 102041.85410471068, 102032.59373596782, 102023.19064690352, 102013.6261655516, 102003.89516575525, 101994.00329629163 … 100102.42325525949, 100091.64792011298, 100080.87104714429, 100070.09268249712, 100059.3128723356, 100048.53166284635, 100037.74910024065, 100026.96523075651, 100016.1801006609, 100005.3937562514], :y => [0.11979366677724437 0.09786326357864857 … 1.0003949057634152e-10 1.0003638671232603e-10; 0.8802063332227557 0.9021367364213514 … 0.9999999998999609 0.9999999998999637], :AdsorbedConcentration => [143.485220163821 115.22596666997667 … 3.073281220268398e-5 3.073277284514523e-5; 30.042316223835527 36.735483681312914 … 369.20500813645106 369.1679532177247], :Temperature => [297.91704096783604, 296.94374147548774, 296.3097594207534, 295.873413324699, 295.5907686832011, 295.43335900931083, 295.37710035624406, 295.40062757834227, 295.4849567644353, 295.6134485644995 … 298.1553757296006, 298.1548220373103, 298.15426826075003, 298.15371439828283, 298.1531604482694, 298.15260640906894, 298.1520522790389, 298.1514980565648, 298.15094374822127, 298.1503916064062]), OrderedCollections.OrderedDict(:Pressure => [102068.48792420387, 102059.29455810438, 102050.19792957665, 102041.11391147911, 102031.97524505664, 102022.73085190075, 102013.34617362832, 102003.80231647001, 101994.09400763841, 101984.22681334567 … 100101.95555646486, 100091.22943095233, 100080.50177047066, 100069.77262206205, 100059.04203278961, 100048.31004973936, 100037.5767200224, 100026.84209077712, 100016.10620917122, 100005.3691224035], :y => [0.11983827375926519 0.09792537671606558 … 1.0003820962410814e-10 1.0003526545742643e-10; 0.8801617262407349 0.9020746232839344 … 0.9999999998999622 0.9999999998999648], :AdsorbedConcentration => [143.62961738301837 115.34515494774828 … 3.073281226132845e-5 3.0732772891371193e-5; 29.984561175546183 36.656942976658186 … 369.204985583473 369.16794520618805], :Temperature => [297.920976708127, 296.9464875890614, 296.3114653897145, 295.8742594635352, 295.5909411022548, 295.433043959186, 295.3764705688417, 295.3998313195097, 295.4841118671628, 295.61264133292593 … 298.1553737327093, 298.15482025809496, 298.15426669919054, 298.15371305437316, 298.15315932201776, 298.1526055004978, 298.152051588185, 298.15149758347906, 298.15094349297834, 298.15039157130826]), OrderedCollections.OrderedDict(:Pressure => [102058.59107356367, 102049.40094526399, 102040.31101398448, 102031.23699624384, 102022.11134907135, 102012.88267432137, 102003.51612626563, 101993.992591991, 101984.30665524025, 101974.46380348597 … 100101.48730723832, 100090.81044887305, 100080.13205854918, 100069.4521841847, 100058.77087371888, 100048.08817511438, 100037.40413635936, 100026.71880546966, 100016.03223049095, 100005.34445950041], :y => [0.11988196136703645 0.09798660342098524 … 1.000369328148252e-10 1.0003414784700136e-10; 0.8801180386329636 0.9020133965790147 … 0.9999999998999636 0.9999999998999659], :AdsorbedConcentration => [143.77462216135226 115.4648773739354 … 3.073281231854958e-5 3.073277293637651e-5; 29.928422094454152 36.57995948178298 … 369.2049621660327 369.1679369047022], :Temperature => [297.92495607269586, 296.9492747755933, 296.31320722964136, 295.87513560856405, 295.5911379393405, 295.43274869815286, 295.37585721404554, 295.39904940338573, 295.48328028151866, 295.61184714832893 … 298.1553716540394, 298.15481840569186, 298.15426507303465, 298.15371165445936, 298.1531581483553, 298.15260455311034, 298.1520508671105, 298.15149708877004, 298.15094322471106, 298.1503915317955]) … OrderedCollections.OrderedDict(:Pressure => [101939.74758744516, 101930.39768226266, 101921.04692265796, 101911.69530842404, 101902.34283935295, 101892.98951523585, 101883.63533586301, 101874.28030102384, 101864.92441050685, 101855.56766409971 … 100103.09002513577, 100092.3000630806, 100081.49473124025, 100070.67439561372, 100059.8394197863, 100048.99016437754, 100038.12698654587, 100027.25023956085, 100016.36027292472, 100005.45744701206], :y => [0.1500001127138555 0.15000020686382318 … 0.1311391747939722 0.13100139655260584; 0.8499998872861443 0.8499997931361776 … 0.8688608252060259 0.8689986034473934], :AdsorbedConcentration => [3892.1621211968627 3892.102077152678 … 1957.7272413365672 1942.1409601462474; 22.492593954333486 22.492365521796806 … 51.848574520740144 51.944327655403406], :Temperature => [298.1498540479188, 298.1497169272823, 298.14957877600506, 298.1494396237387, 298.1492994997561, 298.149158432942, 298.149016451772, 298.148873584297, 298.1487298581291, 298.1485853004271 … 344.65798044884514, 345.1918304870103, 345.71195687196183, 346.2184335144532, 346.7113564519094, 347.19084169590076, 347.65702276643833, 348.11003314055614, 348.549545739123, 348.9618868775823]), OrderedCollections.OrderedDict(:Pressure => [101930.93437514058, 101921.58446973427, 101912.23370963347, 101902.88209463679, 101893.5296245419, 101884.17629914555, 101874.82211824352, 101865.46708163073, 101856.11118910115, 101846.75444044785 … 100102.08599180916, 100091.41152718297, 100080.719425522, 100070.01003008487, 100059.28368748391, 100048.54074673702, 100037.7815583836, 100027.00647368259, 100016.21584448678, 100005.41004078236], :y => [0.15000010539071357 0.15000019352889923 … 0.13250472539050395 0.13233838129188935; 0.8499998946092862 0.8499998064711015 … 0.8674952746094942 0.8676616187081099], :AdsorbedConcentration => [3892.099015743687 3892.0386276103195 … 2096.1403580791234 2077.1489843937443; 22.492471223783276 22.492248474808022 … 50.78395809502774 50.938645770696496], :Temperature => [298.14986340870075, 298.1497348001879, 298.1496049511272, 298.1494738922256, 298.1493416539853, 298.14920826668805, 298.1490737603683, 298.1489381647913, 298.1488015094323, 298.14866382345605 … 340.3564313960869, 340.97417176268743, 341.5792007709942, 342.1713678721975, 342.7505591826057, 343.3166951775817, 343.8697278156773, 344.4096189959262, 344.9357803327753, 345.43147093594797]), OrderedCollections.OrderedDict(:Pressure => [101922.46450773532, 101913.11460205435, 101903.76384136322, 101894.41222546624, 101885.05975416682, 101875.70642726748, 101866.35224456976, 101856.99720587434, 101847.64131098097, 101838.28455968849 … 100100.88759642471, 100090.34795100972, 100079.78879279301, 100069.21038885655, 100058.61301766151, 100047.99696784718, 100037.36253705746, 100026.71003082576, 100016.03976223318, 100005.35207239227], :y => [0.15000009642860182 0.15000017719291645 … 0.134173261400824 0.1339794633602681; 0.8499999035713979 0.8499998228070843 … 0.865826738599174 0.8660205366397312], :AdsorbedConcentration => [3892.038056608945 3891.9772440224597 … 2266.3621360310985 2244.1105673680036; 22.492354945497333 22.492139196392532 … 49.11136129189845 49.34436695681122], :Temperature => [298.1498748858068, 298.1497567600737, 298.1496371801105, 298.14951617593294, 298.14939377759197, 298.1492700151487, 298.14914491864187, 298.1490185180576, 298.1488908433015, 298.14876192417154 … 335.34988198326045, 336.03545041411974, 336.7113506580478, 337.37713092422683, 338.03238403971164, 338.67674667957294, 339.3098976013956, 339.9315333110893, 340.5407080232856, 341.11752209683306]), OrderedCollections.OrderedDict(:Pressure => [101914.43935792962, 101905.08945191694, 101895.73869052962, 101886.38707357724, 101877.03460086857, 101867.68127221162, 101858.32708741346, 101848.97204628041, 101839.61614861789, 101830.25939423045 … 100099.49437482464, 100089.1070182314, 100078.69914332256, 100068.2708784833, 100057.82237097788, 100047.35378602296, 100036.8653058049, 100026.3571284812, 100015.82946799214, 100005.28257743179], :y => [0.15000008563757505 0.1500001575004781 … 0.13615865733894994 0.13594356398517568; 0.8499999143624246 0.8499998424995227 … 0.8638413426610481 0.8640564360148236], :AdsorbedConcentration => [3891.9799263160094 3891.918597496298 … 2469.0860477463852 2444.38841675018; 22.492246779979236 22.492039517555252 … 46.629084461648226 46.9511016995529], :Temperature => [298.14988873414666, 298.1497833201654, 298.1496762538352, 298.14956756168914, 298.14945727063264, 298.14934540791097, 298.1492320010646, 298.14911707789025, 298.14900066640365, 298.14888279480255 … 329.7212339349508, 330.4407401946782, 331.1558930416936, 331.86597536150555, 332.5703020875662, 333.26822258104573, 333.95912172638396, 334.6423948866226, 335.31670181194096, 335.9593396951596]), OrderedCollections.OrderedDict(:Pressure => [101906.98987318482, 101897.63996678081, 101888.2892045865, 101878.93758641534, 101869.58511208015, 101860.23178139316, 101850.87759416593, 101841.52255020934, 101832.16664933362, 101822.80989134827 … 100097.93553022003, 100087.71254742189, 100077.46941442619, 100067.20608190459, 100056.92252136636, 100046.6187250952, 100036.29470597737, 100025.95049725605, 100015.5861531043, 100005.2017743829], :y => [0.15000007295341863 0.15000013431989406 … 0.1384298254557417 0.13820686391129092; 0.849999927046581 0.8499998656801068 … 0.8615701745442562 0.8617931360887086], :AdsorbedConcentration => [3891.9255354316247 3891.863591567588 … 2699.617662472326 2674.1599663305706; 22.492148715771005 22.491951511472458 … 43.22305690790272 43.62012983088437], :Temperature => [298.14990505416574, 298.14981471316764, 298.14972257391497, 298.1496286552217, 298.14953297671957, 298.14943555881695, 298.1493364226444, 298.14923559000687, 298.14913308333587, 298.14902892564476 … 323.68360673382415, 324.38541938923714, 325.08945387665193, 325.79494760209894, 326.5011370211493, 327.2072616845423, 327.912567206419, 328.61628002343315, 329.3168101321673, 329.9898421151413]), OrderedCollections.OrderedDict(:Pressure => [101900.27233097979, 101890.92242413135, 101881.57166103148, 101872.22004149445, 101862.86756533424, 101853.51423236457, 101844.16004239883, 101834.80499525007, 101825.44909073095, 101816.09232865373 … 100096.28165703197, 100086.22609751082, 100076.15236565722, 100066.06025622667, 100055.94957892095, 100045.82015908718, 100035.6718383561, 100025.50447524645, 100015.31794661962, 100005.11217400941], :y => [0.150000058616372 0.15000010806917127 … 0.14088597113382828 0.1406751292183874; 0.8499999413836278 0.8499998919308296 … 0.8591140288661697 0.859324870781612], :AdsorbedConcentration => [3891.8760213678434 3891.8133695157126 … 2946.3760956415013 2922.4536457851364; 22.492062850269285 22.49187713266408 … 39.01646034414097 39.43917126519268], :Temperature => [298.14992356127965, 298.14985044871327, 298.1497755021592, 298.149698727617, 298.14962013234066, 298.14953972480043, 298.14945751463284, 298.1493735125943, 298.14928773051486, 298.1492001812524 … 317.5762320985645, 318.20188058061825, 318.835292559296, 319.47594320414214, 320.12328051083995, 320.77672728053636, 321.43568230438217, 322.0994935551848, 322.7666706282966, 323.41348156161837]), OrderedCollections.OrderedDict(:Pressure => [101894.45456134692, 101885.10465402319, 101875.75388996133, 101866.40226897165, 101857.04979086462, 101847.69645545086, 101838.34226254107, 101828.98721194606, 101819.63130347665, 101810.27453694366 … 100094.64122648798, 100084.7451430903, 100074.83421494834, 100064.9081606742, 100054.96670455852, 100045.00957730653, 100035.03651678421, 100025.04726880179, 100015.04158872656, 100005.01926511478], :y => [0.15000004337006245 0.1500000800863228 … 0.14335948322398476 0.14318130451978556; 0.8499999566299374 0.8499999199136781 … 0.8566405167760133 0.8568186954802139], :AdsorbedConcentration => [3891.8326835307926 3891.769261101324 … 3193.194132170821 3172.918191275267; 22.491991007464513 22.491817659334096 … 34.44449485286943 34.823052349356175], :Temperature => [298.14994331954637, 298.1498887812975, 298.14983254795226, 298.14977460964946, 298.1497149579012, 298.14965358558743, 298.1495904869335, 298.14952565749144, 298.14945909411813, 298.1493907949524 … 311.7954242770982, 312.29775263571395, 312.81036593057104, 313.3330775181274, 313.8656745191001, 314.4079172911144, 314.9595380513883, 315.520214345517, 316.0888721794917, 316.64498565980506]), OrderedCollections.OrderedDict(:Pressure => [101889.7008066581, 101880.3508988685, 101871.00013386623, 101861.64851145212, 101852.29603142764, 101842.94269359467, 101833.58849775558, 101824.23344371318, 101814.87753127067, 101805.52076023168 … 100093.14011183607, 100083.38485972706, 100073.61879164109, 100063.84163892962, 100054.05313214418, 100044.25300140475, 100034.4409767914, 100024.61678878458, 100014.78016937144, 100004.93087004847], :y => [0.15000002851756006 0.15000005274965525 … 0.14565684971530174 0.14552462649031545; 0.8499999714824398 0.8499999472503457 … 0.8543431502846963 0.854475373509684], :AdsorbedConcentration => [3891.796886099907 3891.7326929780666 … 3423.8201948388846 3408.475897344321; 22.491934454762973 22.491773324914266 … 30.114672730045232 30.395994168542646], :Temperature => [298.1499626483812, 298.1499264821444, 298.1498889593364, 298.14985005771285, 298.1498097559454, 298.1497680336583, 298.14972487144837, 298.1496802509062, 298.14963415463575, 298.1495865662701 … 306.71388592242, 307.0698147206835, 307.43539828955187, 307.8106728020184, 308.195661942704, 308.5903760711452, 308.99481057063804, 309.40892457625154, 309.83210693328004, 310.24897064888506]), OrderedCollections.OrderedDict(:Pressure => [101886.4400634286, 101877.09015527029, 101867.73938952382, 101858.38776597852, 101849.0352844243, 101839.68194465163, 101830.32774645156, 101820.9726896157, 101811.61677393617, 101802.25999920571 … 100092.00788178791, 100082.35583536982, 100072.69658137928, 100063.02991152428, 100053.35561447321, 100043.67347597444, 100033.98327898742, 100024.28480384343, 100014.57782885797, 100004.86214236883], :y => [0.15000001682327135 0.15000003116847208 … 0.14742318276279273 0.14733502750814048; 0.8499999831767285 0.8499999688315287 … 0.8525768172372054 0.852664972491859], :AdsorbedConcentration => [3891.772089077174 3891.7072744054053 … 3604.751547774973 3594.221710403231; 22.49189702423186 22.49174563542646 … 26.864468900606933 27.045633501560253], :Temperature => [298.1499779221744, 298.1499564205636, 298.14993398267325, 298.14991058370003, 298.14988619905887, 298.1498608044318, 298.1498343758033, 298.1498068894997, 298.1497783222251, 298.14974865109906 … 302.9991935248369, 303.2253017165151, 303.45884494053865, 303.6999324090983, 303.9486693273161, 304.2051565059299, 304.46948938841484, 304.74174367917436, 305.0216146362275, 305.29887204021105]), OrderedCollections.OrderedDict(:Pressure => [101884.44866125289, 101875.09875284135, 101865.7479865836, 101856.39636225862, 101847.04387964576, 101837.69053852487, 101828.3363386762, 101818.98127988048, 101809.62536191888, 101800.26858457304 … 100091.25348872319, 100081.66842201109, 100072.07889219285, 100062.48476010178, 100052.8858834341, 100043.28211676891, 100033.67331159324, 100024.05931634264, 100014.4399767131, 100004.81514282645], :y => [0.1500000088252518 0.15000001637509827 … 0.1486339559794114 0.14858132418815592; 0.8499999911747481 0.8499999836249026 … 0.8513660440205867 0.8514186758118435], :AdsorbedConcentration => [3891.7568074165333 3891.691559207524 … 3731.653291265414 3725.19018735703; 22.491874939684955 22.4917302811724 … 24.731393751897528 24.834934240788584], :Temperature => [298.14998839776035, 298.14997703778187, 298.14996511960055, 298.1499526235876, 298.1499395298846, 298.14992581843774, 298.1499114690176, 298.14989646124565, 298.14988077461976, 298.14986438854163 … 300.5896268879329, 300.7173283906478, 300.8499903960585, 300.9877239333692, 301.13063932211975, 301.27884600801156, 301.43245204049504, 301.5915554434147, 301.756027929971, 301.91982111726475])], [1.0, 0.10000000000000009, 0.010000000000000009, 0.0009999999999998899, 0.0010796475153640461, 0.0010805123386004034, 0.001080503119860854, 0.0010827306445275742, 0.0010860710900009174, 0.001090407062698473 … 121.61060201754981, 126.78621445194858, 133.9098614789823, 143.85495536737153, 158.0948903588005, 179.2444660006404, 212.20382415658014, 266.7938999000926, 313.5169574376632, 368.57412754866164])
"With wall" => ([OrderedCollections.OrderedDict(:Pressure => [103129.22106363949, 103119.50662980802, 103109.40479201388, 103098.88796563285, 103087.94349407504, 103076.56869278692, 103064.76877944703, 103052.55532194261, 103039.94488166668, 103026.95778966603 … 100150.00927475703, 100134.22723142999, 100118.44342440611, 100102.65777111097, 100086.87018890657, 100071.0805950909, 100055.28890689745, 100039.49504149465, 100023.69891598544, 100007.90044740625], :y => [0.11375808521632666 0.09029712773393565 … 1.0018472070606791e-10 1.0016330913883135e-10; 0.8862419147836733 0.9097028722660644 … 0.9999999998998153 0.9999999998998367], :AdsorbedConcentration => [128.20752116753582 102.66385849519772 … 3.073280348987016e-5 3.0732765827422226e-5; 39.3607967884105 48.17159608314758 … 369.2062583810479 369.16842273518586], :Temperature => [297.54763067141386, 296.702078415308, 296.1756117273145, 295.8260736504112, 295.6101201216662, 295.5001073897225, 295.4738151334408, 295.51256330740233, 295.6004680204269, 295.72400695228254 … 298.15547783425933, 298.15491252933026, 298.1543471432241, 298.15378167297615, 298.15321611561916, 298.15265046818297, 298.1520847276949, 298.1515188912054, 298.1509529629849, 298.15038895858146], :WallTemperature => [298.14993401779213, 298.14983442729886, 298.1497700008757, 298.149727677745, 298.14970155001697, 298.14968809358004, 298.14968461826345, 298.14968889430764, 298.1496990329164, 298.1497134287335 … 298.1500006481405, 298.1500005812531, 298.15000051435607, 298.1500004474491, 298.1500003805317, 298.15000031360324, 298.1500002466599, 298.15000017967446, 298.150000112432, 298.1500000432109]), OrderedCollections.OrderedDict(:Pressure => [102220.08043219644, 102210.82893775671, 102201.61519192412, 102192.35921443492, 102182.99922575407, 102173.48976140392, 102163.80118130594, 102153.91839877464, 102143.83877645986, 102133.56951555097 … 100109.00355812008, 100097.5358415134, 100086.06655744504, 100074.59573757394, 100063.1234135727, 100051.64961712973, 100040.17437995118, 100028.69773376305, 100017.2197103133, 100005.74034137333], :y => [0.11909367939108936 0.09692397647960402 … 1.0005812066994427e-10 1.0005268934017212e-10; 0.8809063206089107 0.9030760235203961 … 0.9999999998999419 0.9999999998999473], :AdsorbedConcentration => [141.45029297766177 113.54854278958622 … 3.0732811256534914e-5 3.073277209167676e-5; 30.997097663119852 37.98206408179026 … 369.2052736267713 369.1680488375055], :Temperature => [297.86372006337314, 296.90744669700496, 296.2881274688332, 295.86378693686254, 295.59047547256273, 295.4397714986457, 295.3878074226294, 295.41357129239157, 295.49850527027564, 295.6264063115614 … 298.1553979152244, 298.1548417754536, 298.1542855517602, 298.15372924231457, 298.1531728452851, 298.15261635883826, 298.15205978113886, 298.1515031103788, 298.1509463528063, 298.1503917288109], :WallTemperature => [298.1499310745736, 298.1498203588417, 298.14974837256733, 298.14970092214475, 298.1496714969711, 298.149656208656, 298.1496520779215, 298.14965662430546, 298.1496677384618, 298.1496836227732 … 298.1500007120078, 298.1500006385402, 298.150000565062, 298.1500004915728, 298.15000041807224, 298.15000034455943, 298.1500002710302, 298.1500001974544, 298.15000012359326, 298.1500000475351]), OrderedCollections.OrderedDict(:Pressure => [102127.51656954816, 102118.30194004717, 102109.16204456944, 102100.01409027526, 102090.79276410636, 102081.44904580599, 102071.95019615884, 102062.27872260225, 102052.4303049093, 102042.41107876129 … 100104.71874162546, 100093.70187657529, 100082.68346228855, 100071.66354010897, 100060.64215139834, 100049.61933753853, 100038.59513993372, 100027.56960001242, 100016.5427592296, 100005.5146590685], :y => [0.11955958765986786 0.09754427680866795 … 1.0004588907178249e-10 1.0004198703294597e-10; 0.8804404123401323 0.9024557231913322 … 0.9999999998999543 0.999999999899958], :AdsorbedConcentration => [142.7779151977439 114.64258801136337 … 3.0732811887866144e-5 3.0732772594788394e-5; 30.354081750514467 37.14912803531957 … 369.2051084586078 369.16798922732767], :Temperature => [297.8982708446171, 296.93096837577014, 296.30216334323734, 295.87006076179244, 295.59071776360867, 295.4356810297426, 295.38094137673966, 295.4052578713263, 295.48979734485465, 295.61807520482773 … 298.15538356898963, 298.1548290107013, 298.1542743682673, 298.15371963998257, 298.15316482414033, 298.1526099190319, 298.15205492294695, 298.1514998342027, 298.15094465925745, 298.1503916390017], :WallTemperature => [298.14993082013393, 298.1498189804164, 298.1497462267509, 298.1496982543158, 298.1496684922008, 298.14965301552326, 298.14964881592107, 298.1496533875896, 298.1496645988017, 298.14968063238086 … 298.15000071837756, 298.1500006442538, 298.15000057011935, 298.1500004959738, 298.1500004218168, 298.15000034764745, 298.15000027346144, 298.1500001992285, 298.15000012470733, 298.1500000479671]), OrderedCollections.OrderedDict(:Pressure => [102118.25380059361, 102109.04275832165, 102099.91008458211, 102090.77272954248, 102081.56504196391, 102072.2376547904, 102062.75752407654, 102053.10692031358, 102043.28135819177, 102033.28686998575 … 100104.28881735136, 100093.3171895393, 100082.34401430904, 100071.36933395332, 100060.39319078332, 100049.41562713077, 100038.43668535005, 100027.45640782037, 100016.47483694782, 100005.49201516711], :y => [0.11960545251964667 0.09760581860736689 … 1.0004467191214004e-10 1.0004092187844727e-10; 0.8803945474803535 0.9023941813926333 … 0.9999999998999555 0.9999999998999591], :AdsorbedConcentration => [142.91070996935537 114.75204764655207 … 3.0732811949552525e-5 3.07327726438721e-5; 30.291659154818653 37.06765756038451 … 369.20509127475486 369.1679830440756], :Temperature => [297.9017545089562, 296.93334981936147, 296.3035943928268, 295.87071291207917, 295.5907638772603, 295.43529127658775, 295.380272014383, 295.4044423097587, 295.4889413846071, 295.61725635700725 … 298.15538207081005, 298.1548276773209, 298.1542731996643, 298.15371863614774, 298.1531639850771, 298.1526092447561, 298.15205441348724, 298.1514994896002, 298.15094447957455, 298.15039162635094], :WallTemperature => [298.149930795092, 298.1498188428615, 298.14974601234263, 298.14969798761314, 298.14966819173173, 298.14965269616584, 298.1496484896434, 298.1496530638227, 298.14966428473525, 298.1496803332453 … 298.1500007190144, 298.150000644825, 298.15000057062497, 298.1500004964138, 298.15000042219117, 298.15000034795617, 298.1500002737045, 298.15000019940584, 298.15000012481875, 298.1500000480103]), OrderedCollections.OrderedDict(:Pressure => [102108.26171942538, 102099.05443058778, 102089.9293449821, 102080.80315720898, 102071.60986728617, 102062.29974666504, 102052.83943319833, 102043.21095083319, 102033.40964395754, 102023.44143981204 … 100103.8234449392, 100092.90078390314, 100081.97657756669, 100071.0508692244, 100060.12370218975, 100049.19511979728, 100038.26516540468, 100027.33388239497, 100016.4013141786, 100005.46750419513], :y => [0.11965400865136486 0.09767150312288245 … 1.0004336528016176e-10 1.0003977828576916e-10; 0.8803459913486353 0.9023284968771177 … 0.9999999998999568 0.9999999998999602], :AdsorbedConcentration => [143.05411883033574 114.87028921738555 … 3.073281201447493e-5 3.07327726954424e-5; 30.226385391185364 36.981769337604845 … 369.20507194536486 369.1679761095158], :Temperature => [297.90554787643526, 296.93595423147735, 296.3051707961344, 295.87144538218655, 295.5908387900524, 295.43489267544635, 295.37956921785667, 295.4035800308536, 295.4880344394247, 295.6163888621005 … 298.1553803792793, 298.1548261714614, 298.15427187945323, 298.1537175015758, 298.1531630361488, 298.15260848148966, 298.1520538359146, 298.1514990977671, 298.1509442735496, 298.15039160841656], :WallTemperature => [298.14993076852807, 298.14981869468977, 298.1497457810625, 298.1496976997643, 298.1496678673422, 298.1496523513225, 298.14964813728926, 298.1496527141585, 298.14966394553807, 298.14968001017303 … 298.15000071970167, 298.15000064544154, 298.15000057117066, 298.15000049688865, 298.1500004225952, 298.1500003482894, 298.15000027396684, 298.1500001995973, 298.15000012493897, 298.15000004805694]), OrderedCollections.OrderedDict(:Pressure => [102098.28220772854, 102089.0785587342, 102079.96086305937, 102070.8455802742, 102061.66637627999, 102052.37317214019, 102042.93229677455, 102033.32553581649, 102023.54807073287, 102013.60573019074 … 100103.35702801001, 100092.48344316696, 100081.6083153304, 100070.7316887712, 100059.85360777963, 100048.9741166675, 100038.09325977032, 100027.21108144941, 100016.32762609402, 100005.44293812306], :y => [0.11970158923137021 0.09773636950156965 … 1.0004206543495028e-10 1.0003864054860317e-10; 0.88029841076863 0.9022636304984305 … 0.9999999998999581 0.9999999998999614], :AdsorbedConcentration => [143.1976781469256 114.98868781297799 … 3.073281207777877e-5 3.073277274563697e-5; 30.163116721447217 36.89783542372629 … 369.2050518241166 369.1679689107538], :Temperature => [297.90937551228114, 296.9385932534151, 296.30677925194266, 295.87220636432176, 295.59093853484006, 295.43451567512517, 295.378885531799, 295.4027351576147, 295.4871438681153, 295.6155372000048 … 298.15537861241404, 298.1548245981573, 298.154270499688, 298.153716315341, 298.1531620434498, 298.1526076823457, 298.15205323035883, 298.1514986858465, 298.1509440553342, 298.15039158619203], :WallTemperature => [298.14993074241994, 298.1498185467436, 298.14974554980756, 298.14969741178584, 298.14966754270847, 298.14965200615705, 298.14964778456726, 298.14965236410757, 298.1496636059564, 298.1496796867338 … 298.1500007203893, 298.15000064605834, 298.15000057171665, 298.15000049736375, 298.1500004229995, 298.15000034862277, 298.15000027422934, 298.15000019978885, 298.15000012505925, 298.1500000481036]), OrderedCollections.OrderedDict(:Pressure => [102088.33347528, 102079.13335319194, 102070.0228498413, 102060.91821002841, 102051.75277941523, 102042.47613859783, 102033.05431555885, 102023.46886478514, 102013.71481148951, 102003.79789186393 … 100102.89048202812, 100092.06598644938, 100081.23995037419, 100070.412419022, 100059.58343763219, 100048.75305146616, 100037.9213058095, 100027.0882459741, 100016.25391730027, 100005.4183651585], :y => [0.11974812090337708 0.0978002762933196 … 1.0004077374915997e-10 1.0003750990962013e-10; 0.8802518790966232 0.9021997237066806 … 0.9999999998999595 0.9999999998999625], :AdsorbedConcentration => [143.3412705596494 115.1071465350653 … 3.073281213942153e-5 3.073277279442278e-5; 30.101841627184875 36.81587590590225 … 369.20503092933257 369.16796145430226], :Temperature => [297.9132333396899, 296.94126399622445, 296.30841788212246, 295.87299478877196, 295.59106266328405, 295.43416028082316, 295.3782212693245, 295.4019081889893, 295.48627025746066, 295.6147019709526 … 298.1553767718356, 298.1548229588529, 298.154269061636, 298.1537150785338, 298.1531610078937, 298.152606848061, 298.1520525973797, 298.15149825422117, 298.15094382513416, 298.1503915597043], :WallTemperature => [298.1499307167929, 298.14981839914697, 298.14974531876885, 298.1496971239142, 298.1496672180963, 298.14965166095146, 298.14964743176523, 298.14965201395535, 298.14966326626694, 298.14967936319124 … 298.1500007210767, 298.1500006466749, 298.1500005722624, 298.1500004978387, 298.1500004234036, 298.15000034895604, 298.15000027449173, 298.15000019998035, 298.15000012517953, 298.1500000481503]), OrderedCollections.OrderedDict(:Pressure => [102078.40387529768, 102069.20717779367, 102060.10369018551, 102051.0094621575, 102041.85753170114, 102032.59714696523, 102023.19404094548, 102013.62954237146, 102003.89852557679, 101994.00663959979 … 100102.42335736641, 100091.6480114565, 100080.87112773166, 100070.09275233412, 100059.3129314266, 100048.53171119423, 100037.74913784683, 100026.96525762099, 100016.18011678223, 100005.39376162663], :y => [0.11979367577931628 0.09786328380078958 … 1.0003948789800607e-10 1.0003638436270222e-10; 0.880206324220684 0.9021367161992105 … 0.9999999998999608 0.9999999998999636], :AdsorbedConcentration => [143.48519218855947 115.22590961026914 … 3.073281219953453e-5 3.0732772841904144e-5; 30.042379230502917 36.73568175887839 … 369.20500921817097 369.167953724871], :Temperature => [297.91712849528534, 296.9439713659229, 296.3100896268113, 295.87381194464484, 295.59121115633087, 295.4338255280848, 295.3775748685823, 295.4010972687399, 295.4854116975673, 295.6138813856238 … 298.1553748537702, 298.15482125018684, 298.1542675623484, 298.15371378861795, 298.15315992735674, 298.15260597692435, 298.15205193567874, 298.15149780200557, 298.1509435824768, 298.15039152889847], :WallTemperature => [298.1499306915993, 298.1498182515998, 298.14974508747275, 298.14969683555745, 298.1496668928368, 298.14965131499366, 298.1496470781549, 298.1496516629788, 298.14966292576827, 298.1496790388773 … 298.15000072176525, 298.1500006472926, 298.1500005728091, 298.15000049831445, 298.15000042380836, 298.1500003492899, 298.1500002747546, 298.1500002001722, 298.15000012530004, 298.150000048197]), OrderedCollections.OrderedDict(:Pressure => [102068.49138796434, 102059.29801898009, 102050.2013827125, 102041.11735317083, 102031.97867259379, 102022.73426348684, 102013.34956830523, 102003.80569397504, 101994.09736819883, 101984.2301574488 … 100101.95565856711, 100091.22952229156, 100080.50185105413, 100069.77269189562, 100059.04209187762, 100048.31009808472, 100037.57675762661, 100026.84211764016, 100016.10622529165, 100005.36912777842], :y => [0.11983828291467696 0.09792539715501498 … 1.000382069473326e-10 1.000352631099727e-10; 0.8801617170853233 0.9020746028449852 … 0.9999999998999621 0.9999999998999647], :AdsorbedConcentration => [143.62958995672798 115.34509829569865 … 3.0732812258177036e-5 3.0732772888127925e-5; 29.98462387268911 36.65714052648117 … 369.2049866664431 369.16794571389966], :Temperature => [297.9210642766769, 296.94671766914786, 296.3117958935037, 295.87465845715474, 295.5913840000238, 295.4335109327856, 295.3769455485983, 295.4003014752501, 295.48456725182484, 295.6130745829633 … 298.15537285606456, 298.15481947023994, 298.15426600014, 298.15371244414206, 298.15315880062155, 298.1526050679524, 298.1520512445067, 298.1514973286845, 298.1509433270813, 298.15039149373007], :WallTemperature => [298.14993066682086, 298.14981810395733, 298.1497448556872, 298.14969654642346, 298.149666566599, 298.1496509679305, 298.1496467233746, 298.14965131081857, 298.14966258411164, 298.1496787134598 … 298.1500007224557, 298.1500006479119, 298.1500005733573, 298.1500004987915, 298.1500004242143, 298.15000034962463, 298.15000027501816, 298.15000020036456, 298.1500001254209, 298.1500000482439]), OrderedCollections.OrderedDict(:Pressure => [102058.59453776159, 102049.40440658823, 102040.31446758988, 102031.24043843514, 102022.1147771449, 102012.88608648576, 102003.51952156713, 101993.995970171, 101984.3100165296, 101974.46714837445 … 100101.48740933865, 100090.81054021044, 100080.13213913095, 100069.45225401671, 100058.7709328055, 100048.08822345856, 100037.4041739626, 100026.71883233199, 100016.03224661094, 100005.34446487516], :y => [0.11988197067092102 0.0979866240735325 … 1.0003693013963458e-10 1.0003414550175607e-10; 0.8801180293290792 0.9020133759264677 … 0.9999999998999635 0.9999999998999658], :AdsorbedConcentration => [143.7745952897598 115.46482113422735 … 3.0732812315396185e-5 3.073277293313105e-5; 29.92848449329368 36.58015651327862 … 369.20496325025465 369.1679374129802], :Temperature => [297.9250436821322, 296.9495050458776, 296.3135380322648, 295.87553497735405, 295.5915812635219, 295.43321612852975, 295.37633266326225, 295.3995200265205, 295.48373611970425, 295.6122808291629 … 298.15537077657723, 298.15481761710237, 298.1542643733327, 298.1537110436598, 298.1531576264737, 298.15260412016255, 298.1520505231129, 298.15149683373926, 298.15094305866086, 298.1503914541466], :WallTemperature => [298.1499306424437, 298.149817956092, 298.14974462320583, 298.1496962562519, 298.1496662390872, 298.14965061944605, 298.14964636710073, 298.149650957153, 298.1496622409848, 298.1496783866415 … 298.1500007231486, 298.1500006485334, 298.1500005739075, 298.1500004992703, 298.1500004246217, 298.1500003499606, 298.1500002752827, 298.1500002005576, 298.15000012554214, 298.15000004829096]) … OrderedCollections.OrderedDict(:Pressure => [101942.02434186825, 101932.67443487488, 101923.32366899602, 101913.97204126915, 101904.61954872661, 101895.26618839522, 101885.91195729587, 101876.55685244316, 101867.20087084499, 101857.84400950215 … 100102.05219299853, 100091.35197119786, 100080.64104422882, 100069.91974503473, 100059.1884029823, 100048.44734357292, 100037.69688819097, 100026.93735389545, 100016.16905355034, 100005.39230498888], :y => [0.15000010380514722 0.1500001903578353 … 0.13246245663145167 0.1323543244756921; 0.8499998961948525 0.8499998096421637 … 0.8675375433685473 0.8676456755243082], :AdsorbedConcentration => [3892.1748619582554 3892.1092862510413 … 2136.841371018304 2126.597179048951; 22.492662198791315 22.49251558009551 … 50.57115513926454 50.663861633060854], :Temperature => [298.14991446891, 298.149922995745, 298.1500183892041, 298.1502008063367, 298.15047041678366, 298.1508274026975, 298.15127195864653, 298.1518042914959, 298.1524246202544, 298.1531331759135 … 341.38778499450086, 341.7549237521903, 342.10979255207985, 342.4525196335924, 342.78324510831607, 343.102119547512, 343.4093023992806, 343.70495120058604, 343.9889358141061, 344.25275625184935], :WallTemperature => [298.1851713088696, 298.25551932502736, 298.3258833960986, 298.3962740849433, 298.46670184041665, 298.53717697727564, 298.60770965647214, 298.6783098659443, 298.7489874020105, 298.8197518514672 … 303.8248105834281, 303.3499652209918, 302.8485474113655, 302.3196796021643, 301.76249026739913, 301.1761182521126, 300.5597176169844, 299.91246303103804, 299.2335557718814, 298.5222305970569]), OrderedCollections.OrderedDict(:Pressure => [101933.2074613129, 101923.85755413999, 101914.50678789946, 101905.15515968272, 101895.80266657607, 101886.44930566034, 101877.09507401042, 101867.73996869498, 101858.38398677605, 101849.02712530873 … 100101.2073263909, 100090.60540477441, 100079.9905661015, 100069.36314208295, 100058.72346518537, 100048.07186804453, 100037.40868292155, 100026.73424121283, 100016.04887340683, 100005.35292086648], :y => [0.15000009703465883 0.15000017802305343 … 0.13378358891838707 0.13365146134106448; 0.8499999029653408 0.8499998219769456 … 0.866216411081612 0.8663485386589357], :AdsorbedConcentration => [3892.111853298741 3892.046048368141 … 2256.4877268905984 2243.317945178937; 22.492538453353816 22.492395762390274 … 49.34207989083604 49.481642527441515], :Temperature => [298.14992224849146, 298.1499362491122, 298.1500353702435, 298.1502197698642, 298.1504896179076, 298.1508450961713, 298.1512863982174, 298.1518137292517, 298.1524273059724, 298.15312735641305 … 337.6768908495872, 338.1250720517069, 338.56115481679467, 338.98509953028207, 339.39688942376057, 339.796529011173, 340.1840421898311, 340.5594580367546, 340.92243664184616, 341.2617573306779], :WallTemperature => [298.1845394610113, 298.25362346842246, 298.3227226002225, 298.3918468068783, 298.46100593249906, 298.530209697242, 298.59946768004227, 298.6687893017583, 298.738183808823, 298.8076602574836 … 303.7812999496977, 303.3067095127151, 302.80620120801734, 302.2790193181645, 301.72442587145053, 301.1417058910312, 300.53017321269186, 299.8891769215358, 299.2181084705324, 298.5164098084432]), OrderedCollections.OrderedDict(:Pressure => [101924.74216521205, 101915.39225781243, 101906.0414911255, 101896.68986229923, 101887.33736847647, 101877.98400679465, 101868.62977438538, 101859.27466837414, 101849.91868587986, 101840.56182401467 … 100100.16977611132, 100089.68581249431, 100079.1869743198, 100068.67354606459, 100058.14581913517, 100047.60409106557, 100037.04866473982, 100026.47984765777, 100015.89795174547, 100005.30330792342], :y => [0.15000008869704293 0.15000016282231127 … 0.13538041082279853 0.13522465169402853; 0.8499999113029566 0.8499998371776878 … 0.8646195891772006 0.8647753483059717], :AdsorbedConcentration => [3892.051061872487 3891.9849559419977 … 2405.3628446208854 2389.2886311305565; 22.492421193066953 22.492283620497766 … 47.56260110055197 47.7628412437436], :Temperature => [298.14993200737223, 298.14995324395727, 298.1500577716152, 298.1502457474122, 298.15051733987434, 298.1508727288866, 298.15131210558656, 298.1518356722381, 298.15244364207854, 298.15313623916353 … 333.2547289705111, 333.77321976645004, 334.2815225622452, 334.7793659828635, 335.2665086710235, 335.74273849818, 336.20787117216736, 336.66173308216935, 337.10369441881284, 337.51963035077887], :WallTemperature => [298.1838804306853, 298.2516460801929, 298.3194259723444, 298.3872294778398, 298.4550658680109, 298.5229442994501, 298.5908737989102, 298.65886324855046, 298.72692137160504, 298.7950567185437 … 303.682144108285, 303.2119930340012, 302.71691623442075, 302.1962994276314, 301.64955917959674, 301.0761490342975, 300.4755662477533, 299.8473591720285, 299.1911353486705, 298.50657069848097]), OrderedCollections.OrderedDict(:Pressure => [101916.73773615497, 101907.38782847542, 101898.0370612471, 101888.68543167738, 101879.33293696865, 101869.97957431801, 101860.62534091693, 101851.27023395084, 101841.91425059887, 101832.55738803349 … 100098.9372708169, 100088.58939572852, 100078.22538539256, 100067.84542270025, 100057.44970356698, 100047.0384362361, 100036.61184056065, 100026.17014728914, 100015.71359795937, 100005.24246220327], :y => [0.15000007859297448 0.15000014438214615 … 0.137264975380003 0.13709052842375505; 0.849999921407025 0.849999855617853 … 0.8627350246199961 0.8629094715762451], :AdsorbedConcentration => [3891.9932249019434 3891.926735778935 … 2584.2873041329726 2565.8969068471997; 22.49231219405098 22.492181085550587 … 45.07585220240986 45.343118393418095], :Temperature => [298.14994399708434, 298.149974459441, 298.15008629220887, 298.15027964843637, 298.1505546922882, 298.15091159893325, 298.1513505544294, 298.1518717555919, 298.1524754098352, 298.1531617350177 … 328.1910839544091, 328.7527327620914, 329.3080817002124, 329.85664101677827, 330.3979456324644, 330.9315561144398, 331.45705881488266, 331.9740469451833, 332.4815699582205, 332.9628429738385], :WallTemperature => [298.1831825082536, 298.2495520261909, 298.31593493833725, 298.3823400581151, 298.4487761060674, 298.51525169649125, 298.581775324296, 298.64835535214814, 298.71499999796697, 298.78171732282954 … 303.51875535537783, 303.05773990704824, 302.57322447461934, 302.064756388468, 301.5319272044952, 300.9743795171141, 300.3918143545407, 299.7839991893403, 299.15077661021365, 298.49207408470403]), OrderedCollections.OrderedDict(:Pressure => [101909.32997300672, 101899.98006499272, 101890.62929712704, 101881.27766667971, 101871.92517091603, 101862.57180709623, 101853.21757247523, 101843.86246430219, 101834.50647982025, 101825.1496162662 … 100097.5370516398, 100087.3384219889, 100077.12356029764, 100066.89250992042, 100056.64532975163, 100046.38209402486, 100036.10289205387, 100025.80782794117, 100015.49702092848, 100005.17062489175], :y => [0.15000006667623889 0.1500001226032298 … 0.13940536018982075 0.13922338913431787; 0.8499999333237606 0.8499998773967693 … 0.8605946398101784 0.8607766108656824], :AdsorbedConcentration => [3891.9392908768027 3891.872332668171 … 2789.237928764101 2769.838464943713; 22.492213486550693 22.492090220986395 … 41.81042883489957 42.13201020401283], :Temperature => [298.1499582702395, 298.1499999916573, 298.1501210648666, 298.15032163433983, 298.1506018554398, 298.1509618943006, 298.15140192770724, 298.1519221429594, 298.1525227377134, 298.1532039198256 … 322.6823526137442, 323.24348496814315, 323.80347532101, 324.36175757205945, 324.9177712024088, 325.4709634667537, 326.02079075619974, 326.5666986743733, 327.10751672168743, 327.6247705821392], :WallTemperature => [298.18242767765463, 298.24728725253493, 298.3121593894864, 298.3770523559168, 298.4419743324862, 298.50693340157875, 298.57193753595686, 298.6369945876513, 298.7021122771384, 298.76729818285406 … 303.28335799343233, 302.83670271188873, 302.3684895185049, 301.87844533620574, 301.3663530909767, 300.83205873942154, 300.2754787792061, 299.69660825272024, 299.09552926582097, 298.4724204626304]), OrderedCollections.OrderedDict(:Pressure => [101902.67620761445, 101893.32629922043, 101883.97553064057, 101874.62389921147, 101865.27140226544, 101855.91803713016, 101846.56380112834, 101837.20869157743, 101827.85270578926, 101818.49584106976 … 100096.03601666143, 100085.99122948293, 100075.93152875139, 100065.8568259057, 100055.76704489243, 100045.66212247596, 100035.54200850576, 100025.40666616346, 100015.25607287223, 100005.09024042683], :y => [0.15000005322191495 0.1500000979682696 … 0.1417061304422002 0.1415332003019834; 0.8499999467780844 0.8499999020317295 … 0.8582938695577988 0.8584667996980169], :AdsorbedConcentration => [3891.890411703607 3891.8229104655866 … 3010.2072315512755 2991.6293760492854; 22.492127130212868 22.49201285297386 … 37.89677368105789 38.2340650191874], :Temperature => [298.1499744564548, 298.15002910951785, 298.1501609823191, 298.1503702055348, 298.15065692047233, 298.151021278959, 298.15146344322983, 298.15198358580085, 298.1525818893207, 298.1532585464259 … 317.0493303748042, 317.558521864137, 318.0712800729804, 318.58716400047496, 319.10572024810875, 319.6264844822177, 320.1489821860908, 320.67270783137303, 321.19651718093434, 321.70204601592087], :WallTemperature => [298.1815872039977, 298.2447655478663, 298.3079556176621, 298.37116513251823, 298.4344017307365, 298.4976729599786, 298.56098626760195, 298.6243489911848, 298.68776834928207, 298.7512514324542 … 302.96943156640145, 302.5430275099881, 302.0975620573235, 301.6329510038377, 301.1491738706137, 300.6462803895091, 300.12439728917815, 299.5837353652039, 299.02459682687874, 298.4473833308486]), OrderedCollections.OrderedDict(:Pressure => [101896.94171973351, 101887.59181093902, 101878.24104161984, 101868.88940918534, 101859.53691104107, 101850.18354458844, 101840.82930722443, 101831.4741963413, 101822.11820932625, 101812.76134356116 … 100094.53768675146, 100084.64060466744, 100074.73117751187, 100064.80923976119, 100054.87463226437, 100044.92720267188, 100034.96680585873, 100024.99330436313, 100015.0065694564, 100005.00649936298], :y => [0.15000003899780612 0.15000007186274328 … 0.144011770674189 0.14386508524145353; 0.8499999610021933 0.8499999281372558 … 0.85598822932581 0.8561349147585468], :AdsorbedConcentration => [3891.8478752163223 3891.7797962057 … 3232.878495471433 3216.904348045007; 22.49205485235345 22.49195003661675 … 33.71719694623804 34.017308507490775], :Temperature => [298.14999151988684, 298.1500597459689, 298.15020288435124, 298.15042104872003, 298.1507143628083, 298.15108296031457, 298.1515269848207, 298.1520465896956, 298.1526419379779, 298.1533132022613 … 311.67954573528317, 312.09287904236913, 312.5123958599042, 312.9378798894831, 313.3690993230288, 313.80580696645376, 314.2477396808121, 314.69459831270126, 315.1455056855989, 315.5843824835206], :WallTemperature => [298.1806131729969, 298.2418431607703, 298.3030840079267, 298.3643428653462, 298.42562680894395, 298.4869428315045, 298.54829783462765, 298.60969862082044, 298.67115188577, 298.7326642108289 … 302.5712502845435, 302.17198419422186, 301.75667430265986, 301.3254154635588, 300.8783674153975, 300.4157598673439, 299.93789765712785, 299.4451659431867, 298.9380354009456, 298.41706776378726]), OrderedCollections.OrderedDict(:Pressure => [101892.2826236976, 101882.9327145259, 101873.58194453367, 101864.23031121526, 101854.87781206166, 101845.52444456023, 101836.17020619434, 101826.81509444315, 101817.4591067814, 101808.102240679 … 100093.16483353208, 100083.39842642017, 100073.62296263759, 100063.83826897421, 100054.04417350871, 100044.24050586855, 100034.42709749739, 100024.60378194862, 100014.77039568414, 100004.92679204409], :y => [0.15000002529726122 0.15000004665108593 … 0.14613768214164322 0.14602901850889174; 0.8499999747027381 0.8499999533489131 … 0.8538623178583556 0.8539709814911086], :AdsorbedConcentration => [3891.812991187393 3891.744374553349 … 3441.6729811334235 3429.5335435626453; 22.49199774474301 22.491901654499845 … 29.79520337806904 30.017409377496364], :Temperature => [298.1500076751099, 298.15008824933415, 298.1502410603239, 298.1504662070666, 298.1507637974754, 298.1511339483445, 298.1515767853035, 298.15209244276093, 298.1526810638278, 298.15334280024507 … 306.9553624365295, 307.2486536410704, 307.5482714636643, 307.85417669830065, 308.1663210730481, 308.4846469677448, 308.80908652629853, 309.13954557368197, 309.4754877718328, 309.80481301173063], :WallTemperature => [298.1794214192131, 298.23826758291966, 298.29712367182003, 298.3559962235264, 298.4148917067339, 298.47381651465844, 298.53277695855616, 298.59177926135015, 298.6508295513909, 298.7099338563763 … 302.08289867590594, 301.7191338164699, 301.34274107557997, 300.95395574001566, 300.5530709914414, 300.14044101236095, 299.71648396988957, 299.28168483540213, 298.83659800481337, 298.3818499692322]), OrderedCollections.OrderedDict(:Pressure => [101889.09239302356, 101879.7424835771, 101870.39171313168, 101861.04007927798, 101851.68757960347, 101842.3342116922, 101832.97997312463, 101823.6248614773, 101814.2688743227, 101804.91200922892 … 100092.13367752035, 100082.46261570253, 100072.78551348655, 100063.10223409344, 100053.41263969596, 100043.71659152237, 100034.0139499651, 100024.30457470784, 100014.58832519503, 100004.86506990832], :y => [0.1500000146902849 0.15000002708384091 … 0.1477491097713292 0.14767768944741075; 0.8499999853097145 0.849999972916158 … 0.8522508902286697 0.8523223105525896], :AdsorbedConcentration => [3891.7889357973218 3891.719952905113 … 3604.6769977858435 3596.4521260492825; 22.491959333151677 22.491869181746893 … 26.86937300203824 27.010960241552397], :Temperature => [298.1500196269448, 298.150108268198, 298.1502661219499, 298.1504932800361, 298.1507898419223, 298.15115591467014, 298.1515916129083, 298.1520970587929, 298.152672381952, 298.15331771943823 … 303.5224164888758, 303.7067561937444, 303.8960592515121, 304.0903655412001, 304.2897112999975, 304.4941289452527, 304.7036464622035, 304.9182765198617, 305.1377386128952, 305.354074856817], :WallTemperature => [298.1780629950416, 298.2341919953223, 298.2903299877808, 298.3464828964927, 298.4026565824483, 298.45885683840754, 298.515089383813, 298.57135985977794, 298.6276738241703, 298.68403674681105 … 301.5675796086551, 301.24389101786545, 300.91078255503754, 300.5685594152371, 300.21757212969896, 299.85821788574384, 299.4909416417058, 299.1162370054844, 298.734646851271, 298.34676384094183]), OrderedCollections.OrderedDict(:Pressure => [101887.29785247968, 101877.94794288739, 101868.59717224487, 101859.24553823682, 101849.89303854479, 101840.53967084705, 101831.18543281838, 101821.83032212983, 101812.4743364485, 101803.11747343742 … 100091.51680385495, 100081.90147177677, 100072.2821554814, 100062.65876071008, 100053.03119156446, 100043.39935053454, 100033.76313852932, 100024.12245491872, 100014.47719779216, 100004.8272697516], :y => [0.15000000828272567 0.15000001524103368 … 0.14872212933073936 0.14867749939648217; 0.8499999917172737 0.8499999847589653 … 0.8512778706692595 0.8513225006035182], :AdsorbedConcentration => [3891.775361302089 3891.706220426546 … 3706.405528686637 3701.1432229164743; 22.49193771593875 22.49185018283681 … 25.146170703576892 25.23160067130729], :Temperature => [298.1500262014436, 298.1501179556787, 298.15027596015733, 298.15050030507757, 298.1507910873036, 298.15114841032363, 298.1515723842162, 298.152063125608, 298.15262075761837, 298.1532454098136 … 301.5222051339906, 301.6325709781554, 301.7463621105399, 301.86363815731124, 301.9844576941879, 302.1088781502435, 302.23695542822594, 302.3687370082712, 302.50408735876476, 302.6380740947144], :WallTemperature => [298.176760638335, 298.23028465729305, 298.28381687254034, 298.33736268396814, 298.39092743324807, 298.44451639974716, 298.49813479648253, 298.5517877661302, 298.6054803771026, 298.6592176197079 … 301.12834249649865, 300.8408563008743, 300.5463363109405, 300.24509676684846, 299.9374851016676, 299.62388217795876, 299.3047023244123, 298.9803931538768, 298.65143514892713, 298.3183411228247])], [1.0, 0.10000000000000009, 0.010000000000000009, 0.0009999999999998899, 0.0010796517682405415, 0.001080516622744998, 0.0010805074038768847, 0.0010827349629609628, 0.0010860754467625355, 0.001090411461578178 … 131.81399323469304, 137.43379023969464, 145.11307138335178, 155.8756894438966, 171.4210322173485, 194.73661412846013, 231.4069649776975, 292.67077893404166, 347.51778736162487, 347.51778736162487])
"Isothermal" => ([OrderedCollections.OrderedDict(:Pressure => [103127.90085272283, 103118.167319198, 103108.01877479095, 103097.43803375252, 103086.41883041654, 103074.96370650217, 103063.0821895184, 103050.78921966405, 103038.10378851811, 103025.04776385629 … 100149.56129131313, 100133.82628246819, 100118.08955624161, 100102.35102300752, 100086.61059307226, 100070.86817667389, 100055.12368398158, 100039.37702509505, 100023.62811004392, 100007.87684878723], :y => [0.11383508265769343 0.09045703721866191 … 1.0016257481759375e-10 1.0014343756715095e-10; 0.8861649173423065 0.9095429627813382 … 0.9999999998998375 0.9999999998998566], :AdsorbedConcentration => [128.01360086869428 102.31114348879288 … 3.073278401557692e-5 3.073274569439043e-5; 39.903214860532636 49.70540635996597 … 369.21226448677254 369.17088782747607], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [102241.68085051722, 102232.41593283684, 102223.15253970638, 102213.8207193143, 102204.36544231803, 102194.74743529297, 102184.9426149776, 102174.94039746531, 102164.74130486544, 102154.35430824776 … 100109.70311887315, 100098.1617309754, 100086.61880231333, 100075.07435705402, 100063.52841937463, 100051.98101346429, 100040.43216352626, 100028.88189377988, 100017.3302284626, 100005.77719183202], :y => [0.11908443808330836 0.09696437217162998 … 1.0004067420716473e-10 1.0003734287387389e-10; 0.8809155619166915 0.9030356278283702 … 0.9999999998999595 0.9999999998999626], :AdsorbedConcentration => [141.24472309423302 113.15408234833612 … 3.0732790381861925e-5 3.073275046513783e-5; 31.285733135989496 39.194801169344 … 369.21187432551517 369.1707576398426], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [102151.34422618145, 102142.11716643581, 102132.92810526161, 102123.7041384834, 102114.38663138456, 102104.93277970563, 102095.31549123526, 102085.52187425809, 102075.55082891692, 102065.4102672034 … 100105.53373710647, 100094.43105573354, 100083.32685030522, 100072.22115471702, 100061.11400287894, 100050.00542871765, 100038.89546617855, 100027.7841492279, 100016.6715118549, 100005.55758807383], :y => [0.11954352587741415 0.09757383218505095 … 1.0002891057537977e-10 1.0002709480768158e-10; 0.8804564741225858 0.9024261678149492 … 0.9999999998999712 0.9999999998999729], :AdsorbedConcentration => [142.57130186986168 114.24392358707856 … 3.0732790878543546e-5 3.073275082409488e-5; 30.616517435004038 38.327359834528096 … 369.21176830450446 369.1707222830996], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [102142.30321111008, 102133.0798413278, 102123.8980569797, 102114.68468228655, 102105.3807361548, 102095.9430692264, 102086.34429313436, 102076.57128879504, 102066.62279718075, 102056.5066273074 … 100105.11535129936, 100094.0566931631, 100082.99651264181, 100071.93484458521, 100060.87172385806, 100049.80718534219, 100038.74126393857, 100027.67399456953, 100016.60541218074, 100005.53555174345], :y => [0.11958872980041986 0.09763430627190746 … 1.0002774013305758e-10 1.0002607504073322e-10; 0.8804112701995801 0.9023656937280927 … 0.9999999998999725 0.9999999998999739], :AdsorbedConcentration => [142.70399355712362 114.3529625695464 … 3.07327909268187e-5 3.073275085881503e-5; 30.551468378312084 38.242417190899 … 369.21175703197423 369.1707185239194], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [102132.30988741515, 102123.09047548295, 102113.91652543932, 102104.71458448739, 102095.42530530275, 102086.00516981722, 102076.42647280714, 102066.6758528578, 102056.75188270381, 102046.66226398331 … 100104.65127581396, 100093.64144807204, 100082.63009995274, 100071.61726733857, 100060.60298612752, 100049.5872922352, 100038.5702215969, 100027.55181016985, 100016.53209393515, 100005.51110890003], :y => [0.1196377477460922 0.09770042936744038 … 1.0002645314678802e-10 1.0002495365804793e-10; 0.8803622522539077 0.9022995706325598 … 0.9999999998999738 0.999999999899975], :AdsorbedConcentration => [142.85081278748532 114.47364397749925 … 3.0732790978523975e-5 3.0732750895791106e-5; 30.481730303291652 38.15060507134665 … 369.2117437427438 369.1707140922925], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [102122.32976607129, 102113.11419349993, 102103.94787226697, 102094.75709479178, 102085.48216279793, 102076.07920075858, 102066.52019582242, 102056.79155237807, 102046.89168219692, 102036.82818590442 … 100104.18617242758, 100093.22528274404, 100082.26287488137, 100071.29898572907, 100060.33365219265, 100049.36691119577, 100038.39879968233, 100027.42935461864, 100016.45861299553, 100005.48661183042], :y => [0.11968575397637676 0.09776570904024866 … 1.0002517338171388e-10 1.00023838550386e-10; 0.8803142460236232 0.9022342909597515 … 0.9999999998999751 0.9999999998999761], :AdsorbedConcentration => [142.99776972008974 114.59447171768696 … 3.0732791028576676e-5 3.0732750931368706e-5; 30.414093772416077 38.060829033190515 … 369.2117296249696 369.1707093844472], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [102112.37999228518, 102103.16814180392, 102094.00924551283, 102084.82936285647, 102075.56845904324, 102066.18231111734, 102056.64260656436, 102046.93552268273, 102037.05931688151, 102027.02149480871 … 100103.72091318968, 100092.8089774527, 100081.89552592585, 100070.98059647798, 100060.06422699445, 100049.14645537932, 100038.22731955738, 100027.30685747637, 100016.38510710906, 100005.4621064554], :y => [0.11973267601231015 0.09783000715211977 … 1.000239020259438e-10 1.0002273079577439e-10; 0.8802673239876898 0.9021699928478804 … 0.9999999998999763 0.9999999998999772], :AdsorbedConcentration => [143.14476355002338 114.71536280369877 … 3.073279107695227e-5 3.073275096553198e-5; 30.348537298959513 37.97310001830425 … 369.2117146901376 369.1707044042137], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [102102.4497669957, 102093.24153236675, 102084.08987853724, 102074.92065306682, 102065.67349770312, 102056.30385016695, 102046.78310422564, 102037.09721546673, 102027.24429229218, 102017.23175065561 … 100103.25509791008, 100092.39217414413, 100081.52773716098, 100070.66182578322, 100059.79447885037, 100048.92573522116, 100038.05563377563, 100027.18421341719, 100016.31151307482, 100005.4375717052], :y => [0.11977858037757953 0.09789337652414902 … 1.0002263688348752e-10 1.0002162851034581e-10; 0.8802214196224204 0.9021066234758511 … 0.9999999998999776 0.9999999998999783], :AdsorbedConcentration => [143.2920872846035 114.83655814991783 … 3.073279112375193e-5 3.07327509983533e-5; 30.2848715678312 37.88720139400972 … 369.21169890856066 369.1706991416926], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [102092.53693524687, 102083.33221700731, 102074.18763608314, 102065.02884893747, 102055.79518618883, 102046.44175308004, 102036.93965409354, 102027.27462706882, 102017.44463565503, 102007.45701067742 … 100102.7887319141, 100091.97487762631, 100081.1595128632, 100070.34267737696, 100059.52441093733, 100048.7047533337, 100037.88374437719, 100027.06142390287, 100016.2378317718, 100005.41300787323], :y => [0.11982349575205598 0.0979558212737669 … 1.0002137700872384e-10 1.0002053089027778e-10; 0.8801765042479439 0.9020441787262332 … 0.9999999998999788 0.9999999998999795], :AdsorbedConcentration => [143.43989494879554 114.95818447961267 … 3.0732791169023006e-5 3.073275102986595e-5; 30.22298142632049 37.80301136285686 … 369.2116822614218 369.1706935906094], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [102082.63993135306, 102073.43863581691, 102064.30096915802, 102055.15241736048, 102045.9320118115, 102036.59453118706, 102027.11079385957, 102017.46632260463, 102007.65893950865, 101997.69589408918 … 100102.32184031818, 100091.55711041826, 100080.79087293886, 100070.02316853956, 100059.25403789793, 100048.48352171162, 100037.71166070053, 100026.93849560892, 100016.16406720757, 100005.38841629589], :y => [0.11986745048662437 0.09801734820500899 … 1.0002012164112075e-10 1.0001943728628097e-10; 0.8801325495133755 0.9019826517949912 … 0.99999999989998 0.9999999998999806], :AdsorbedConcentration => [143.58832349404355 115.08035454527403 … 3.0732791212801646e-5 3.073275106009451e-5; 30.162767881145648 37.72042668627273 … 369.21166472949284 369.1706877445529], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]) … OrderedCollections.OrderedDict(:Pressure => [101881.2674609361, 101871.91755335173, 101862.56678875045, 101853.21516691506, 101843.86268762818, 101834.50935067223, 101825.15515582949, 101815.800102882, 101806.44419161168, 101797.08742180023 … 100089.42422354796, 100079.95759621996, 100070.49883764856, 100061.049412317, 100051.61100476992, 100042.18554356444, 100032.77522419367, 100023.3825282927, 100014.0102297699, 100004.66133750552], :y => [0.1499998806191826 0.14999977952952992 … 0.13343924041263622 0.13132110103115646; 0.8500001193808173 0.8500002204704694 … 0.8665607595873648 0.8686788989688448], :AdsorbedConcentration => [3891.7197792053794 3891.6533195055285 … 3481.3191354685905 3428.9836592594684; 22.491855959098743 22.491735599273103 … 25.520074110694214 25.961930918226948], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [101881.67732035798, 101872.32741251778, 101862.97664740698, 101853.625024807, 101844.27254449922, 101834.9192062649, 101825.56500988512, 101816.20995514088, 101806.85404181301, 101797.49726968227 … 100089.73935112123, 100080.25674550796, 100070.77928894664, 100061.30801560893, 100051.84412424764, 100042.38899979214, 100032.94423589994, 100023.51165690273, 100014.0933322681, 100004.69154371753], :y => [0.1499999079624094 0.14999982974528733 … 0.13848788688570327 0.13697485346778818; 0.8500000920375905 0.8500001702547121 … 0.8615121131142978 0.8630251465322131], :AdsorbedConcentration => [3891.7257029297402 3891.6593711607566 … 3603.177533459531 3565.9746237012655; 22.491857437823885 22.49173328462818 … 24.516851129170156 24.810178442818945], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [101882.0162966425, 101872.66638855176, 101863.31562294016, 101853.96399958669, 101844.61151827029, 101835.25817876981, 101825.90398086407, 101816.54892433179, 101807.19300895162, 101797.83623450217 … 100090.00079964302, 100080.50526162438, 100071.01263093382, 100061.52357034848, 100052.03885268682, 100042.55937705497, 100033.08618662858, 100023.62048718675, 100014.16366187713, 100004.71725433033], :y => [0.14999993485368884 0.14999987924282443 … 0.14270472054552183 0.14172640702995; 0.8500000651463111 0.850000120757175 … 0.8572952794544793 0.8582735929700512], :AdsorbedConcentration => [3891.7310748961277 3891.6648836640884 … 3704.5913350895344 3680.6509947392533; 22.491857951014506 22.491730048138482 … 23.72929575083872 23.907987932686993], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [101882.27876900173, 101872.92886068152, 101863.57809460946, 101854.22647056085, 101844.873988311, 101835.52064763516, 101826.16644830859, 101816.81139010651, 101807.45547280413, 101798.09869617659 … 100090.20283679293, 100080.69748546906, 100071.19331965405, 100061.69070722883, 100052.19007899651, 100042.6919386895, 100033.19687422317, 100023.70556985805, 100014.21881669833, 100004.7375049817], :y => [0.14999995958691553 0.14999992489757946 … 0.14597694173577908 0.14543049532448651; 0.8500000404130844 0.85000007510242 … 0.8540230582642221 0.8545695046755147], :AdsorbedConcentration => [3891.7356655965964 3891.6696206831425 … 3782.9742106571694 3769.6522873551176; 22.491857699233 22.4917263257284 … 23.147242030136525 23.242601300174567], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [101882.4600557734, 101873.11014726704, 101863.75938081977, 101854.40775620242, 101845.05527318583, 101835.70193154084, 101826.34773103827, 101816.99267144894, 101807.63675254364, 101798.27997409314 … 100090.3408909756, 100080.8289052408, 100071.31693547804, 100061.80514480862, 100052.29372479969, 100042.78290019091, 100033.27293428997, 100023.76413491204, 100014.2568596837, 100004.75151299319], :y => [0.1499999797353353 0.14999996222175452 … 0.14821667163054406 0.1479733020288543; 0.8500000202646647 0.8500000377782451 … 0.8517833283694571 0.8520266979711469], :AdsorbedConcentration => [3891.7391730334407 3891.673264766177 … 3836.3833402011483 3830.446573004674; 22.49185701648196 22.49172279344507 … 22.762602451933667 22.803725902762565], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [101882.56261196904, 101873.21270334173, 101863.86193664937, 101854.51031165867, 101845.1578281364, 101835.80448584922, 101826.4502845638, 101817.09522404672, 101807.73930406453, 101798.38252438373 … 100090.41682679795, 100080.90119527424, 100071.38494145921, 100061.8681153518, 100052.35077578835, 100042.83299194441, 100033.31484506148, 100023.79643036186, 100014.27785877297, 100004.75925599692], :y => [0.14999999288379662 0.14999998668413167 … 0.14944719628932593 0.14937217798960287; 0.8500000071162034 0.8500000133158679 … 0.8505528037106752 0.8506278220103984], :AdsorbedConcentration => [3891.7413483940845 3891.6755431591637 … 3865.562983363985 3863.694830108133; 22.491856339673284 22.49172023945628 … 22.555838957498242 22.568207914152715], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [101882.60361640035, 101873.2537077203, 101863.90294092047, 101854.55131576523, 101845.19883201888, 101835.84548944567, 101826.49128780968, 101817.136226875, 101807.78030640555, 101798.42352616524 … 100090.44531285451, 100080.92829353406, 100071.4104162404, 100061.89168903932, 100052.37212146659, 100042.8517247804, 100033.33051225227, 100023.80849949019, 100014.28570472794, 100004.76214866094], :y => [0.14999999863851415 0.1499999974424235 … 0.14990609477021927 0.14989363848627252; 0.8500000013614858 0.8500000025575761 … 0.8500939052297819 0.8501063615137289], :AdsorbedConcentration => [3891.742271833405 3891.676518487777 … 3876.3444983557442 3875.9788369480725; 22.491855986427847 22.491719055981164 … 22.47953912051839 22.481459685950206], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [101882.61267046753, 101873.2627617759, 101863.91199495234, 101854.56036976058, 101845.20788596426, 101835.8545433269, 101826.50034161193, 101817.14528058267, 101807.78936000231, 101798.43257963398 … 100090.4508692778, 100080.9335674445, 100071.41536333902, 100061.89625718654, 100052.37624929758, 100042.85534008271, 100033.33353006968, 100023.81081992222, 100014.28721045677, 100004.76270263224], :y => [0.14999999990664795 0.1499999998240882 … 0.14999419928588786 0.14999347161900212; 0.850000000093352 0.8500000001759115 … 0.8500058007141132 0.8500065283809993], :AdsorbedConcentration => [3891.742475168313 3891.676734685022 … 3878.3723751772077 3878.287037372731; 22.491855908839472 22.491718793622827 … 22.464940107376552 22.46491600803474], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [101882.61339643809, 101873.26348774561, 101863.91272092034, 101854.56109572595, 101845.20861192599, 101835.85526928396, 101826.50106756322, 101817.14600652701, 101807.79008593847, 101798.43330556065 … 100090.45123960052, 100080.9339173243, 100071.41569003988, 100061.89655749786, 100052.37651945029, 100042.85557565093, 100033.33372585555, 100023.81096982228, 100014.28730731193, 100004.76273808778], :y => [0.14999999999790237 0.1499999999960423 … 0.14999987992873828 0.1499998664237386; 0.8500000000020975 0.8500000000039574 … 0.8500001200712628 0.8500001335762629], :AdsorbedConcentration => [3891.7424903088395 3891.6767508252633 … 3878.4974440107685 3878.4290633276446; 22.491855904347958 22.491718775740825 … 22.46399939339967 22.463857029924238], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15]), OrderedCollections.OrderedDict(:Pressure => [101882.61341590808, 101873.2635072156, 101863.9127403903, 101854.56111519583, 101845.2086313958, 101835.85528875366, 101826.50108703278, 101817.14602599641, 101807.7901054077, 101798.43332502966 … 100090.45124767715, 100080.93392490051, 100071.41569706314, 100061.89656390695, 100052.37652517376, 100042.85558060532, 100033.33372994326, 100023.81097292916, 100014.28730930453, 100004.76273881078], :y => [0.1499999999999499 0.1499999999999055 … 0.1499999972903821 0.1499999970342947; 0.85000000000005 0.8500000000000941 … 0.850000002709619 0.8500000029657068], :AdsorbedConcentration => [3891.7424906707915 3891.676751210286 … 3878.499826269408 3878.431755987105; 22.491855904293846 22.491718775385458 … 22.46397995990074 22.463835402630902], :Temperature => [298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15 … 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15, 298.15])], [1.0, 0.10000000000000009, 0.010000000000000009, 0.0009999999999998899, 0.0011061664268925409, 0.001106910722845189, 0.0011069054307264459, 0.0011091154954001592, 0.0011124930621757567, 0.0011169086934776917 … 11.276339860186454, 13.685669521079035, 17.55081739463253, 24.206347332095675, 36.93700842266708, 65.35035184717367, 145.26077959138615, 467.16330597463275, 1548.9553202994457, 1548.9553202994457])The time at which the outlet reaches half the CO₂ fraction of the feed:
julia
for (label, (states, ts)) in runs
k = findfirst(s -> s[:y][1, end] > 0.075, states)
println(rpad(label, 12), round(cumsum(ts)[k], digits = 0), " s")
endAdiabatic 527.0 s
With wall 535.0 s
Isothermal 1079.0 sThe isothermal bed stays at the feed temperature and holds more CO₂, so CO₂ breaks through about twice as late, in a single sharp front. Heat lost through the wall cools the bed a little behind the first front, which then takes up more CO₂ than the adiabatic bed.
julia

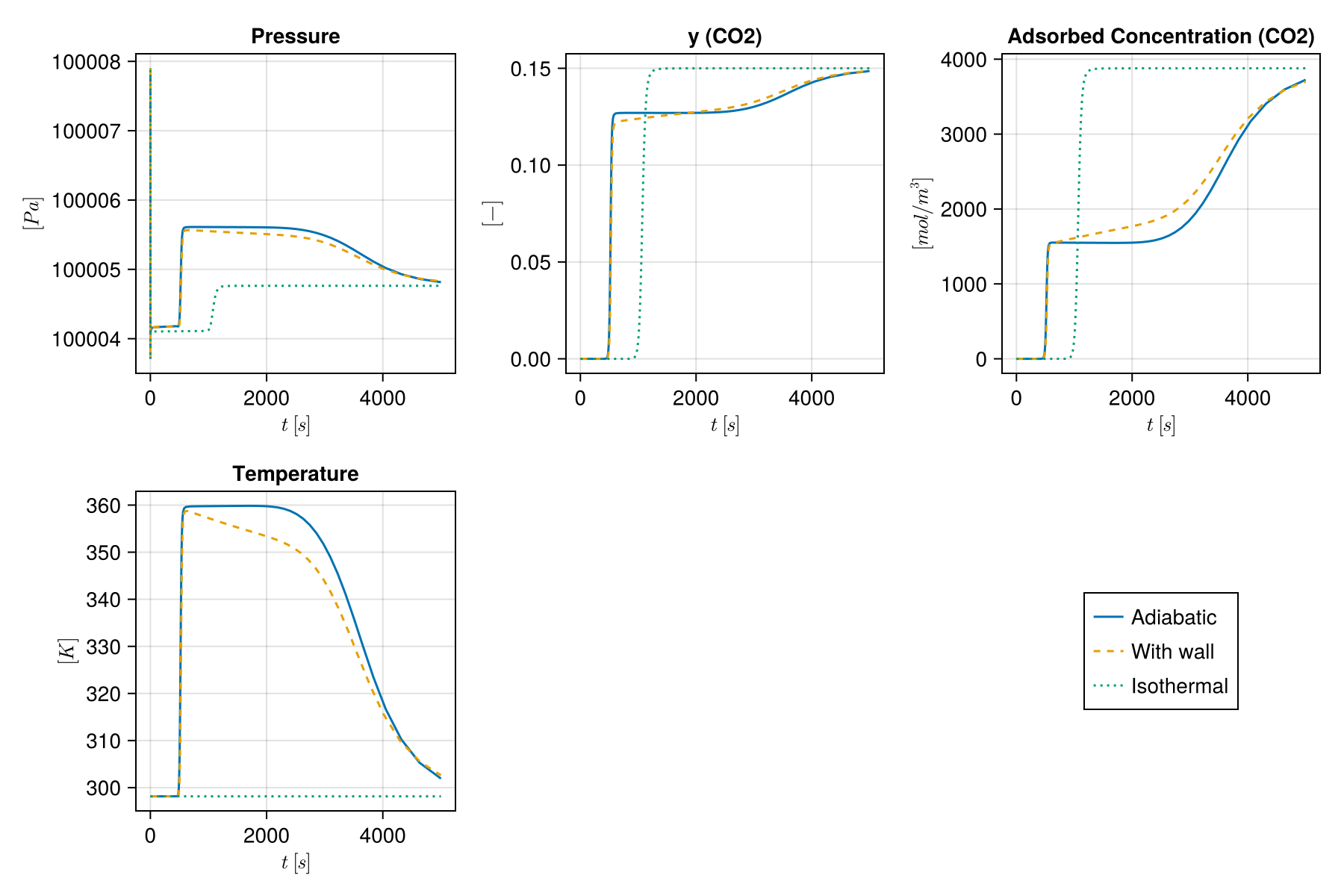

f_comparison = Mocca.plot_cell_comparison(runs, bed, ncells)
Example on GitHub
If you would like to run this example yourself, it can be downloaded from the Mocca.jl GitHub repository.
This page was generated using Literate.jl.
