PDF & CDF Estimation

This example demonstrates how to estimate probability density functions (PDFs) and cumulative distribution functions (CDFs) from MLMC samples using kernel density estimation and the maximum entropy method.

We use the projectile motion model with uncertain parameters and estimate the distribution of the landing distance.

Setup: Projectile Model and MLMC Samples

using Parameters
using Distributions
using MultilevelMonteCarlo
using Statistics
using Random

Random.seed!(42)

@with_kw struct Drag{RhoType, CdType, AreaType}
    ρ::RhoType = 1.225; C_d::CdType = 0.47; A::AreaType = 0.01
end
(d::Drag)(v) = 0.5 * d.ρ * d.C_d * d.A * v^2

@with_kw struct ProjectileParams{H,V,A,M,D}
    h0::H; v0::V; angle::A; mass::M; drag::D
end

import Random: rand
function rand(p::ProjectileParams)
    ProjectileParams(
        h0    = p.h0    isa Real ? p.h0    : rand(p.h0),
        v0    = p.v0    isa Real ? p.v0    : rand(p.v0),
        angle = p.angle isa Real ? p.angle : rand(p.angle),
        mass  = p.mass  isa Real ? p.mass  : rand(p.mass),
        drag  = Drag(
            ρ   = p.drag.ρ   isa Real ? p.drag.ρ   : rand(p.drag.ρ),
            C_d = p.drag.C_d isa Real ? p.drag.C_d : rand(p.drag.C_d),
            A   = p.drag.A   isa Real ? p.drag.A   : rand(p.drag.A)),
    )
end

function projectile_distance(p::ProjectileParams; dt=0.01)
    g = 9.81
    θ = deg2rad(p.angle)
    vx, vy = p.v0 * cos(θ), p.v0 * sin(θ)
    x, y = 0.0, Float64(p.h0)
    max_x = x
    for _ in 0:dt:10.0
        v = sqrt(vx^2 + vy^2)
        fd = p.drag(v)
        vx += (-fd * vx / v / p.mass) * dt
        vy += (-g - fd * vy / v / p.mass) * dt
        x += vx * dt; y += vy * dt
        max_x = max(max_x, x)
        y < 0 && break
    end
    return max_x
end

params_uncertain = ProjectileParams(
    h0    = Uniform(1.5, 1.7),
    v0    = Uniform(8, 12),
    angle = Uniform(30, 60),
    mass  = Uniform(0.1, 0.5),
    drag  = Drag(ρ=Uniform(1.0, 1.5), C_d=Uniform(0.3, 0.6), A=Uniform(0.005, 0.015)),
)

# Model levels at different time-step resolutions
timestepsizes = [0.25, 0.125, 0.0625, 0.03125]
levels = Function[
    let dt = dt; p -> projectile_distance(p; dt=dt); end
    for dt in timestepsizes
]
qoi_functions = Function[identity]

# Collect MLMC samples
samples = mlmc_sample(levels, qoi_functions, [4000, 2000, 1000, 300],
                      () -> rand(params_uncertain))
println("Collected samples: ", [size(samples.fine[l], 2) for l in 1:samples.n_levels],
        " across ", samples.n_levels, " levels")
Collected samples: [4000, 2000, 1000, 300] across 4 levels

Kernel Density Estimation (KDE)

PDF via KDE

The MLMC kernel density estimator uses the multilevel telescoping sum with a Gaussian kernel:

\[\hat{f}(u) = \frac{1}{N_1} \sum_{i=1}^{N_1} K_h(u - Q_1^{(i)}) + \sum_{l=2}^{L} \frac{1}{N_l} \sum_{i=1}^{N_l} \bigl[K_h(u - Q_l^{(i)}) - K_h(u - Q_{l-1}^{(i)})\bigr]\]

pdf_kde = estimate_pdf_mlmc_kernel_density(samples, 1)

# Evaluate at some representative distances
for d in [2.0, 4.0, 6.0, 8.0]
    println("  PDF at d=$d m: ", round(pdf_kde(d), digits=4))
end
  PDF at d=2.0 m: 0.0
  PDF at d=4.0 m: -0.0
  PDF at d=6.0 m: 0.0162
  PDF at d=8.0 m: 0.1455

CDF via KDE

The CDF estimator uses the Gaussian CDF kernel $\Phi((u-x)/h)$ in the same telescoping-sum structure:

cdf_kde = estimate_cdf_mlmc_kernel_density(samples, 1)

println("CDF at 3m:  ", round(cdf_kde(3.0), digits=4))
println("CDF at 5m:  ", round(cdf_kde(5.0), digits=4))
println("CDF at 7m:  ", round(cdf_kde(7.0), digits=4))
CDF at 3m:  0.0
CDF at 5m:  0.0002
CDF at 7m:  0.0477

Maximum Entropy Method

The maximum entropy estimator fits a PDF of the form:

\[\tilde{f}_U(u) = \exp\!\left(\sum_{k=0}^{R} \lambda_k \phi_k\!\left(\frac{2(u-a)}{b-a} - 1\right)\right)\]

where $\phi_k$ are orthonormal Legendre polynomials on $[-1,1]$. The coefficients $\lambda_k$ are found by matching generalized moments estimated from the MLMC samples, using Newton's method with a ForwardDiff Jacobian.

MaxEnt PDF

pdf_maxent, λ, a, b = estimate_pdf_maxent(samples, 1; R=8)

println("Support: [", round(a, digits=2), ", ", round(b, digits=2), "]")
println("λ coefficients: ", round.(λ, digits=4))
Support: [4.08, 16.33]
λ coefficients: [-21.5936, 27.0111, -35.9792, 25.6084, -24.1928, 12.4398, -9.1487, 2.8956, -1.6769]

Verify the PDF integrates to 1:

using QuadGK
integral, _ = quadgk(pdf_maxent, a, b; rtol=1e-6)
println("∫ PDF dx = ", round(integral, digits=6))
∫ PDF dx = 1.0

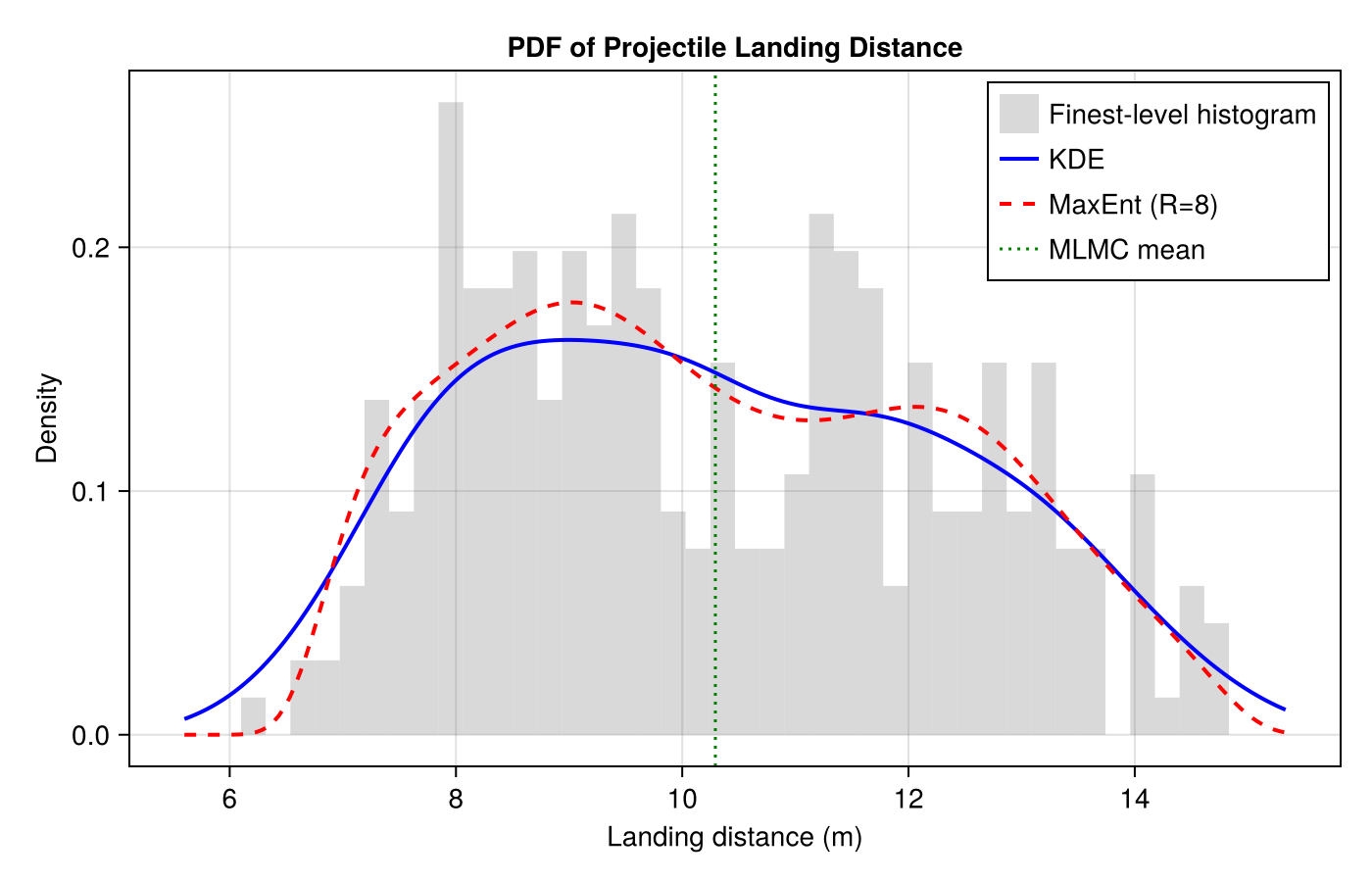

Comparison: KDE vs MaxEnt

using CairoMakie

# Evaluation grid
est = mlmc_estimate_from_samples(samples)
finest = samples.fine[end][1, :]
u_range = range(minimum(finest) - 0.5, maximum(finest) + 0.5, length=200)

fig = Figure(size=(700, 450))
ax = Axis(fig[1, 1]; xlabel="Landing distance (m)", ylabel="Density",
          title="PDF of Projectile Landing Distance")
hist!(ax, finest; bins=40, normalization=:pdf, color=(:gray, 0.3),
      label="Finest-level histogram")
lines!(ax, u_range, pdf_kde.(u_range); label="KDE", color=:blue, linewidth=2)
lines!(ax, u_range, pdf_maxent.(u_range); label="MaxEnt (R=8)", color=:red,
       linewidth=2, linestyle=:dash)
vlines!(ax, [est[1]]; label="MLMC mean", color=:green, linewidth=1.5, linestyle=:dot)
axislegend(ax; position=:rt)
fig
Example block output

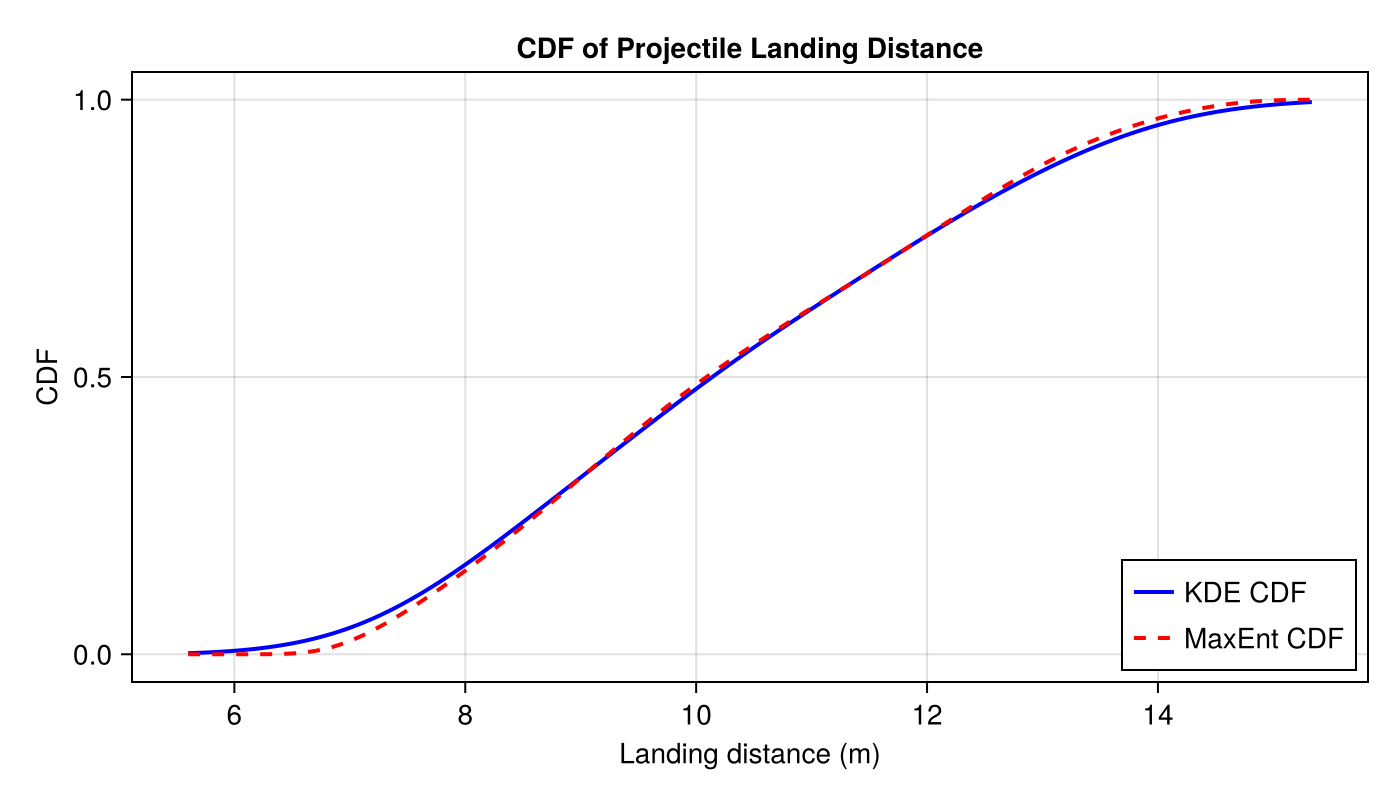

CDF Comparison

cdf_maxent, _, _, _ = estimate_cdf_maxent(samples, 1; R=8)

fig2 = Figure(size=(700, 400))
ax2 = Axis(fig2[1, 1]; xlabel="Landing distance (m)", ylabel="CDF",
           title="CDF of Projectile Landing Distance")
lines!(ax2, u_range, cdf_kde.(u_range); label="KDE CDF", color=:blue, linewidth=2)
lines!(ax2, u_range, cdf_maxent.(u_range); label="MaxEnt CDF", color=:red,
       linewidth=2, linestyle=:dash)
axislegend(ax2; position=:rb)
fig2
Example block output
